Inkjet VS Laser Marking: Choosing the Best Solution for
Wire Harness Identification
In the precision-driven wire harness industry,
permanent part identification isn't optional—it's critical for safety,
compliance, and traceability. With applications ranging from automotive wiring
to aerospace cable assemblies, selecting the right marking technology impacts
durability, efficiency, and ROI. Here's how inkjet printers and laser markers
compare for harness marking:
Wire Harness Marking
Challenges
Harsh Environments: Marks must withstand abrasion, chemicals (oils/solvents), and
temperature extremes
Space Constraints: Legibility on thin wires and small connectors
Regulatory Compliance: Permanent traceability per IATF 16949, FAA, and medical standards
High-Speed Production: Zero downtime for automotive/electronics volume lines

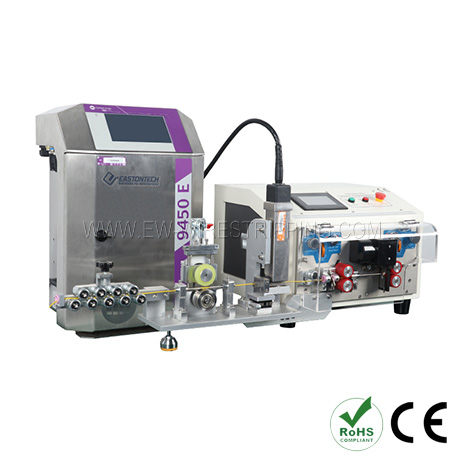

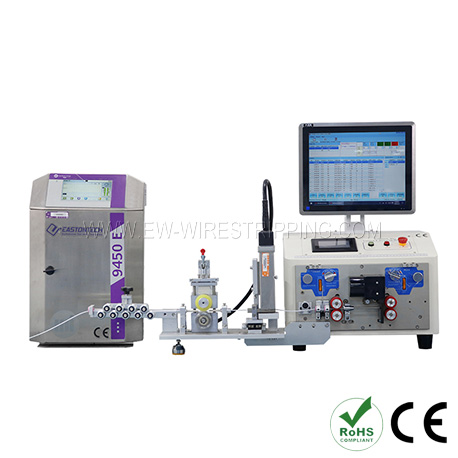

Inkjet Printing for Wire
Harnesses
Ideal for:

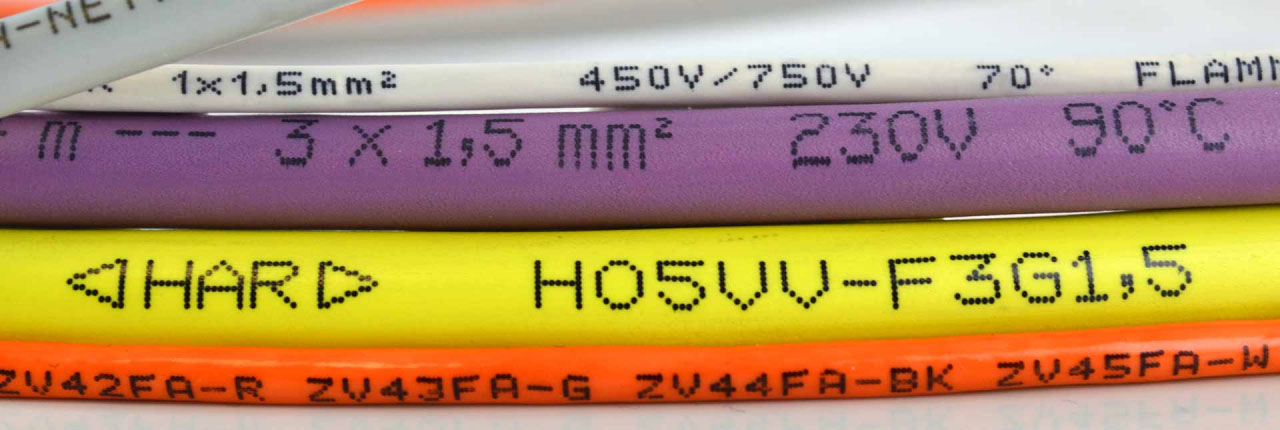

● Color-coded labels on wire
jackets
● Temporary work-in-process (WIP)
identification
● Polyester, PVC, or nylon
surfaces
Advantages:
● Flexible Substrates: Adapts to
curved/flexible surfaces
● Low Operational Cost:
Affordable for prototype batches
● Multi-Color Coding: Vital for
complex harness configurations
Limitations:
● Susceptible to smudging from
handling/oils
● Limited longevity in engine bay
applications

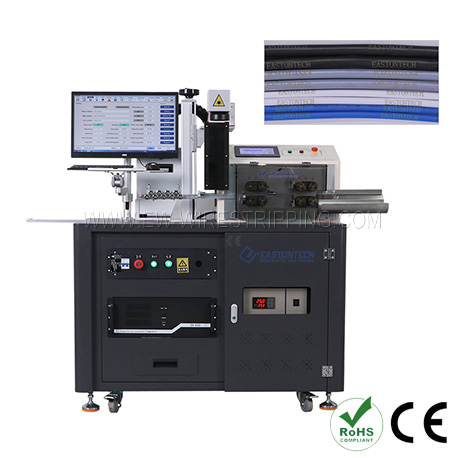

Laser Marking for Wire
Harnesses
Ideal for:
● Permanent UL/ISO-compliant
alphanumeric codes
● Direct part marking (DPM) on
connectors, terminals
● High-temperature materials
(e.g., PTFE, cross-linked polyethylene)
Advantages:
● Indestructible Marks:
Chemical/heat-resistant engravings (0.001" depth)
● Micro-Scale Precision: Clear 2D
DataMatrix codes on 22AWG wires
● Zero Consumables: Eliminates
ink costs in high-volume plants
Limitations:
● Higher initial investment
● Limited color options
|
Key Selection Criteria for Harness Manufacturers
|
|
Factor
|
Inkjet Printing Machine
|
Laser
Marking Machine
|
|
Mark Permanence
|
Moderate (3-5 years)
|
Lifetime (>20 years)
|
|
Speed
|
About 10-20 m/min
|
About 50-200 m/min
|
|
Operating Cost
|
$0.02/foot (ink)
|
$0.005/foot (power)
|
|
Material Scope
|
Non-porous polymers
|
Metals, ceramics, all polymers
|
|
Compliance
|
MIL-STD-130 (limited)
|
AS9132, AIM DPM verified
|
When to Choose Each Technology
Opt for Inkjet If:
● Marking color-coded temporary
assemblies
● Processing moisture-sensitive
materials (e.g., paper labels)
● Budget constraints under $15k
Choose Laser If:
● Permanent VIN, barcode, or QR
code engraving
● Automotive/Aerospace harnesses
requiring SAE/USCAR-8 compliance
● Production volumes >5,000
units/day

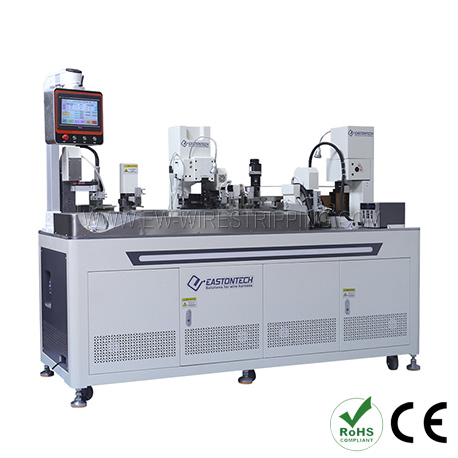

Eastontech Solutions for Wire
Harness Traceability
Eastontech delivers industry-proven laser\inkjet
marking systems engineered for wire processing environments:
