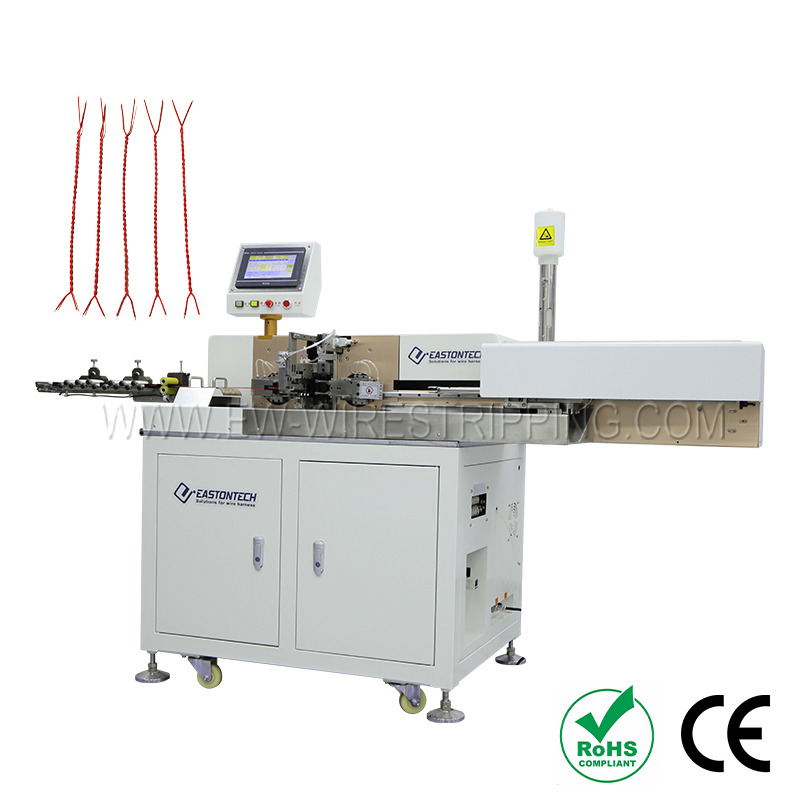

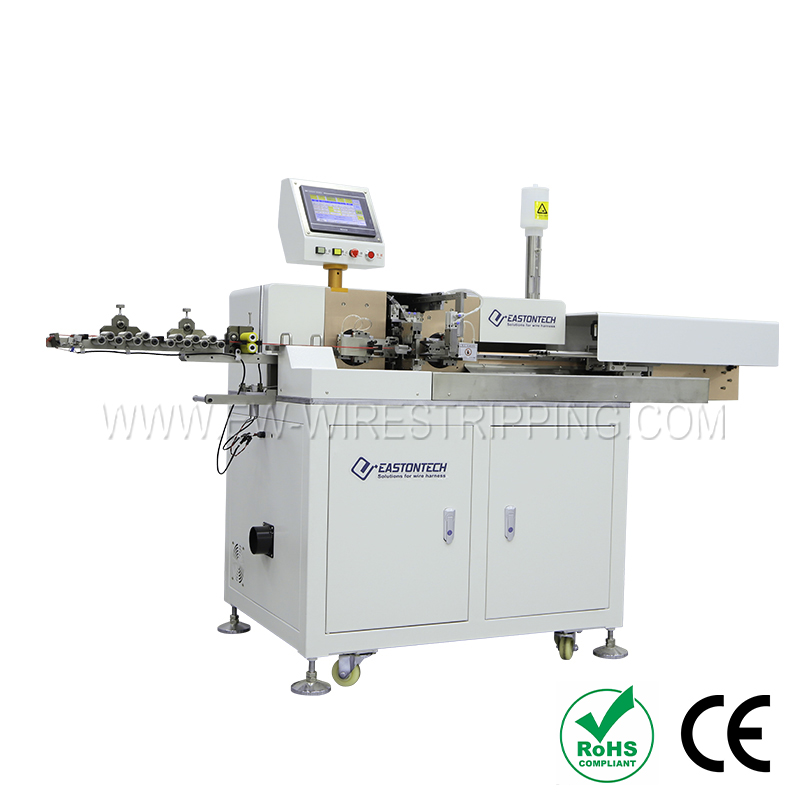

| Model | EW-21F |
| Machine Category | Automatic Double Side Wire Stripping, Twisting & Tinning Machine |
| Applicable Wire Range | AWG24-AWG32 |
| Stripping Length Range | 0.1-6mm |
| Cut Precision | ±(0.2+0.02*L) mm |
| Cutting Length | 50-400mm |
| Twisting Length Range | 3-5mm |
| Strand Length | 30-400mm |
| Capacity | 1200-1800pcs/hour |
| Power | AC 110 V / 220 V (50 / 60 Hz) |
| Air Pressure | 0.5-0.7Mpa |
| Driving Motor | Mitsubishi servo, industrial computer control |
| Weight | 430Kg |
| Options | CCD visual Inspection; CFM |
● Simultaneous Processing of Up to 8 Wires
Processes up to 8 single wires in one cycle, significantly improving productivity for high-volume wire harness manufacturing.
● Fully Integrated Double-End Tinning
Automatically completes cutting, stripping, twisting, fluxing, and tinning on both wire ends without secondary handling.
● Mitsubishi Servo Precision Control
Mitsubishi servo motors and industrial computer control deliver accurate positioning for stripping, twisting, and soldering operations.
● Flexible Cable Compatibility
Supports single wires as standard, with customization available for ribbon cables and multi-core flat cables.
● Cleaner Production Environment
Automatic solder wire feeding and optional solder fume extraction help maintain cleaner production conditions during continuous operation.
The EW-21F is designed for manufacturers requiring high-speed automatic stripping, twisting, and double-end tinning for fine-gauge wire harness production.

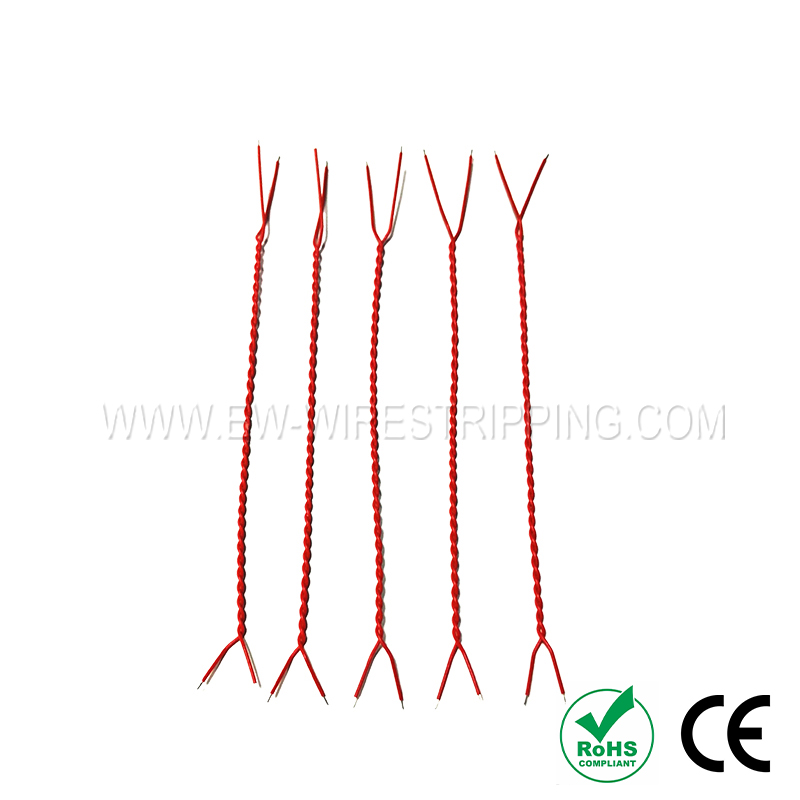

● Consumer Electronics Manufacturing:Produces tinned wires for USB cables, charging cables, earphones, and internal electronic assemblies.
● Communication Cable Assembly:Processes fine-gauge signal wires used in communication equipment and data transmission products.
● Ribbon & Flat Cable Production:Supports customized processing for ribbon cables and multi-core flat cables used in electronic devices.
● Precision Electrical Components:Suitable for sensors, switches, and small electrical assemblies requiring consistent conductor tinning.
● OEM Wire Harness Production: Ideal for manufacturers seeking automated double-end tinning with optional visual inspection for quality assurance.
Q:What wire sizes can the EW-21F process?
A:The machine is designed for AWG24–32 wires and supports high-precision processing for fine-gauge conductors.
Q:Can the machine tin both wire ends automatically?
A:Yes. It automatically performs cutting, stripping, twisting, fluxing, and tinning on both wire ends in one continuous production cycle.
Q:How many wires can be processed simultaneously?
A:The EW-21F can process up to 8 single wires simultaneously, greatly improving production efficiency.
Q:Can it process ribbon cables or flat cables?
A:Yes. The machine can be customized for ribbon cables and multi-core flat cables according to production requirements.
Q:How does the machine maintain consistent soldering quality?
A:Mitsubishi servo motors, industrial computer control, precise positioning, and optional CCD visual inspection help ensure stable and repeatable soldering quality.
