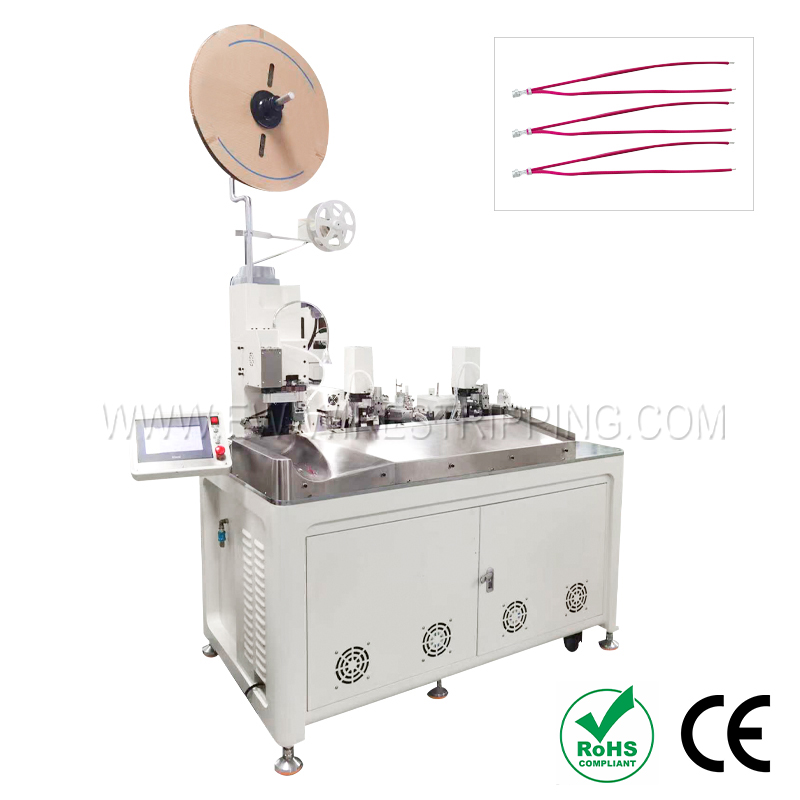

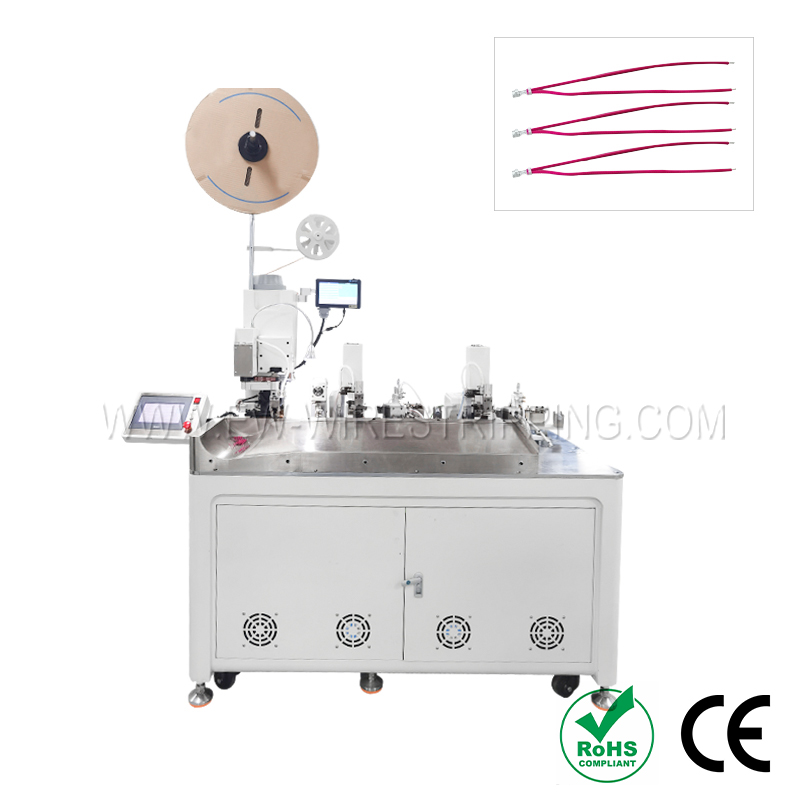

Fully Automatic Three Wire Joint Tinning Machine
Tinning Crimping
12
Model：Fully Automatic Three Wire Joint Tinning Machine
Model: EW-8570
Wire Size:30-16AWG
stripping length:Side A:0.5-8mm, Side B:0.1-10mm
Dimension:1400 *800*1800mm
Wire Size:30-16AWG
stripping length:Side A:0.5-8mm, Side B:0.1-10mm
Dimension:1400 *800*1800mm
Technical Data
|
Function |
Wire cutting , single-end stripping, double-end stripping , crimping terminals , one-end crimping, half- stripping, twisting and tinning ; stripping length / crimping position / knife depth can be adjusted |
|
Processing wires |
#30~#16 AWG |
|
Processing capacity |
Wire length 50-100 mm about 1200 sets / hour, special wire (ultra - fine soft wire) about 1000 sets / hour |
|
Cutting accuracy |
Cable length less than 100mm Error 0.2+( line length x 0.002)，Wire length over 100mm Error 0.5+(line length x 0.002) |
|
Processing length |
Leave the rubber in the middle 51 mm~9999 9 mm ( can be shorter with modification ) |
|
Stripping length |
Front end 0.5~8.0mm, rear end 0.1~10.0mm |
|
Cutting depth |
Maximum adjustment: 5.50mm, resolution : 0.01mm |
|
Detection device |
Low air pressure Presence of wires Abnormal pressing Incoming line abnormality |
|
Power supply |
Single-phase AC200V~242V 50/60Hz 10A |
|
Compressed air |
0.5 MPa (5 kgf / cm2) clean dry gas |
|
Mechanical dimensons |
1400 *800*1800mm |
|
Mechanical weight |
About 600KG |
Feature
● The equipment mainly uses branded original components to complete functions such as wire cutting, stripping, and terminal crimping, with precise movements and stable performance.
● The main machine has a built-in four-wheel synchronous wire feeder to maintain constant wire tension; it is equipped with an automatic terminal strip cutting device.
● The host is controlled by motion control card, and the parameters are set on the touch screen in Chinese and English, with short adjustment time and easy operation.
● Suitable for horizontal and direct feed OTP terminal molds.
● Energy-saving, space-saving, and environmentally friendly equipment.

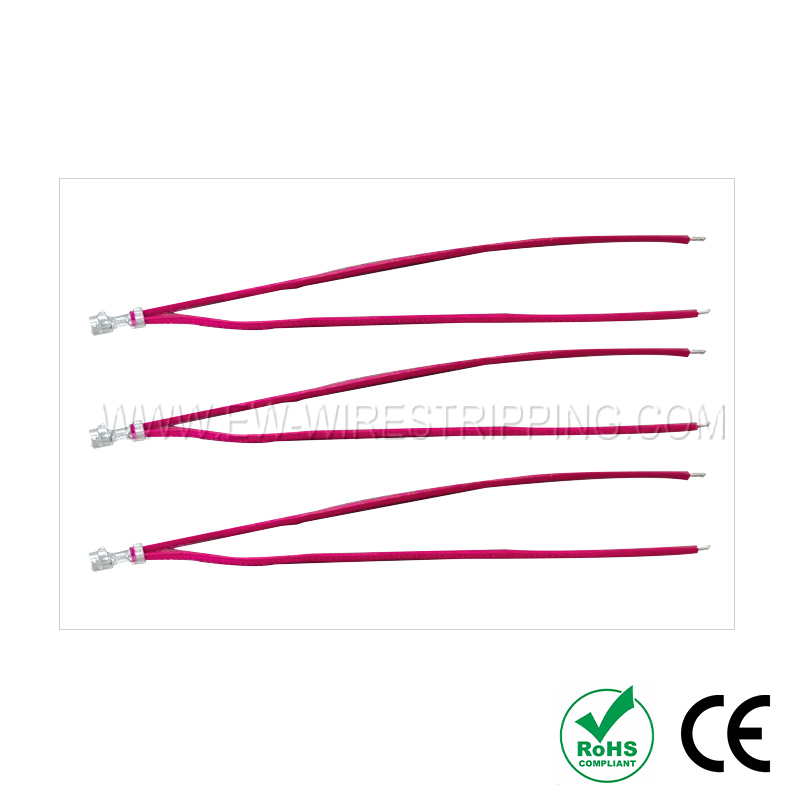

Application Range
