Model |
EW-1355 |
| Machine Category | Cable Shield Braid Cutting & Folding Back Machine |
| Applicable Cable Outer Diameter |
2.5-6.0mm |
| Maximum Cutting Length |
40mm |
| Production Capacity / Output |
700-1000pcs/hour |
| Integrated Processing Functions | Shield Braid Trimming & 360° Folding Back |
| Control Interface Type | High-Definition Digital Touch Screen |
| Actuation Method | Pedal Foot Switch Control |
| Safety & Waste System | Protective Safety Cover & Waste Collection Box |
|
Power |
220V/110V/50/60HZ |
|
Dimension |
370*300*229mm |
● 2-in-1 Shield Cutting & Folding Back:Combines precision braid trimming and uniform 360° folding back into a single automated cycle to accelerate cable end preparation.
● High-Speed Productivity (700–1,000 pcs/h):Delivers fast processing speeds capable of outputting 700 to 1,000 finished cable ends per hour for volume production.
● HD Digital Touch Screen Control:Simple, intuitive touch interface allows operators to quickly configure parameters and adjust operation settings.
● Broad Processing Range (2.5–6.0 mm Cable OD):Perfectly handles fast-charging USB cables, shielded network cables, and multi-core signal transmission wires up to 40 mm cut length.
● Clean & Safe Working Environment: Equipped with a transparent protective safety cover and an integrated waste receiving box to eliminate metal strand debris splashing.
● Ergonomic Foot Switch Trigger:Hands-free foot pedal operation frees the operator's hands for rapid material loading and precise cable alignment.
● Mobile Phone Fast-Charging Cables:Clean, uniform shield braid trimming and turn-back on USB-C and Lightning charging lines.
● Shielded Network Cabling:Efficient 360° braid folding for Cat6/Cat7 Ethernet patch cables prior to connector assembly.
● Signal Transmission Cables:Precision shield preparation for industrial automation sensor lines and multi-core data cables.
● Automotive & Consumer Electronics Wiring: Fast, hazard-free shield processing for compact wire harness assemblies.
Q1: What functions does the EW-1355 perform on shielded cables?

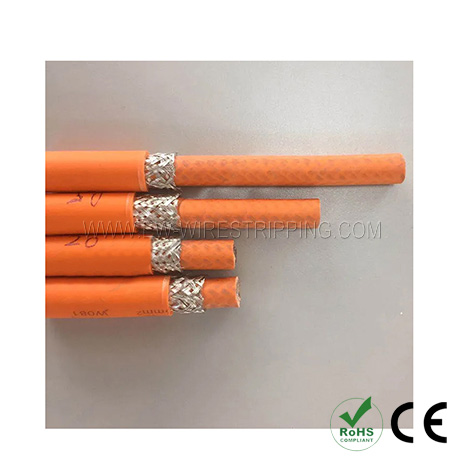

A: The EW-1355 automatically cuts/trims the exposed woven metal shield braid and neatly folds it back over the outer cable jacket in a single smooth operation.
Q2: What cable sizes and cut lengths can the EW-1355 handle?
A: The machine is designed for cables with an outer diameter between 2.5 mm and 6.0 mm, supporting a maximum shield cutting length of up to 40 mm.
Q3: How does the EW-1355 maintain clean and safe operation during braid trimming?
A: The EW-1355 features a clear protective safety cover to safeguard operators during operation and includes a built-in waste collection box to capture trimmed metal strands and prevent debris scatter.
