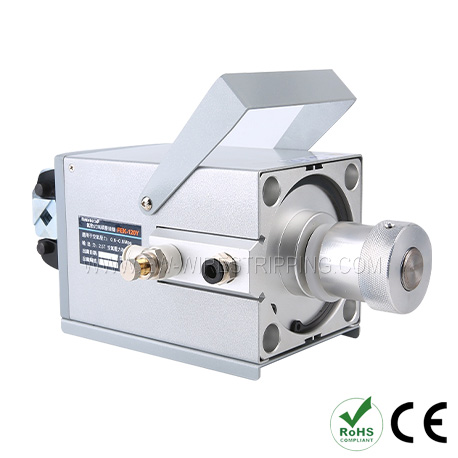

Model |
FEK-120Y |
|
Crimping Size |

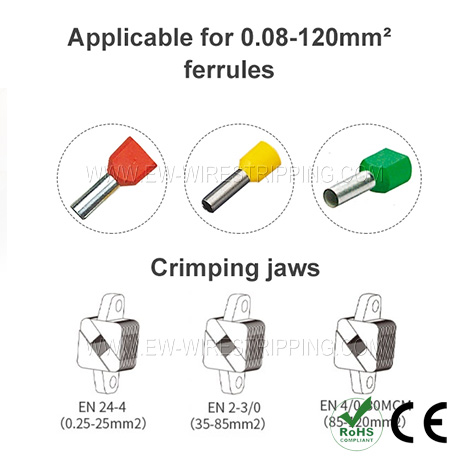

EN 24-4 : 0.25-25mm2 EN 2-3/0 : 35-85mm2 EN 4/0-30MCM : 85-120mm2 |
| Overall Crimping Size Range | 0.25 – 120 mm² (AWG 24 – 300 MCM) |
|
Air Pressure |
0.6-0.8MPa |
|
Output Force |
2.5T |
| Operation / Trigger Mode | Ergonomic Pneumatic Foot Switch |
| Die Adjustment System | Self-Adjusting End Sleeve Adaptation |
|
Weight |
6.5KGS |
|
Dimension |
275*128*165mm |
● Heavy-Duty 2.5-Ton Crimping Force: Powerful pneumatic cylinder generates 2.5T (25 kN) output force at 0.6–0.8 MPa, securing heavy-duty ferrules up to 120 mm² without operator fatigue.
● Ultra-Wide Range (0.25–120 mm² / AWG 24–300 MCM):Handles everything from delicate signal wire sleeves up to heavy industrial power conductor ferrules across 3 core size bands.
● Self-Adjusting Die Adaptation:Intelligently adapts to the required ferrule diameter, ensuring uniform, gas-tight compression without complex manual tool changes.

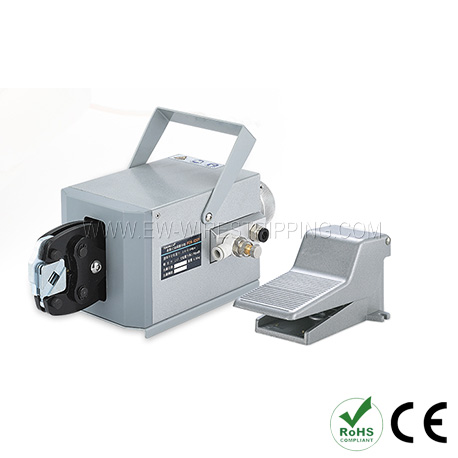

● Hands-Free Foot Switch Activation:Pneumatic foot pedal trigger leaves both hands free to hold, align, and position wires and sleeves during crimping.
● Ultra-Portable & Compact (6.5 kg):Space-saving 275 × 128 × 165 mm footprint allows easy repositioning across control cabinet assembly cells and wiring benches.
● Control Cabinet & Switchgear Panel Building:Fast, repeatable ferrule crimping for PLC terminals, relays, contactors, and terminal blocks.
● Industrial Power Cable Termination:Effortless 2.5-Ton crimping on heavy power conductors from 35 mm² up to 120 mm² (300 MCM).
● High-Mix Electrical Wiring Benches:Portable workstation crimping for panel builders needing to switch between fine control wires and thick power cables.
● Machinery & Automation Harnessing: Uniform ferrule crimping under DIN / EN standards to prevent frayed strands and high-resistance joints.
Q1: How does the FEK-120Y improve ferrule crimping over manual hand pliers for large wires?
A: Hand-crimping heavy ferrules (35 to 120 mm²) requires significant physical force and often produces incomplete crimps. The FEK-120Y uses 0.6–0.8 MPa shop air to generate a consistent 2.5 Tons of force automatically via a foot pedal, eliminating manual strain and guaranteeing gas-tight crimp consistency.
Q2: Does the FEK-120Y require electricity to operate?
A: No. The FEK-120Y is 100% pneumatically operated. It functions purely on standard compressed air (0.6–0.8 MPa), making it completely safe, energy-efficient, and easy to connect to any industrial shop air line.

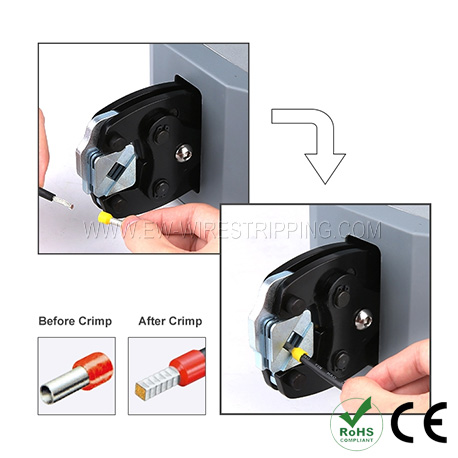

Q3: How does the self-adjusting feature work on different ferrule sizes?
A: The FEK-120Y incorporates a flexible die mechanism that automatically adapts to the inserted ferrule size within its supported range. This ensures optimum compression pressure across different sleeve diameters without requiring manual mechanical stop calibration.
