Insulation ：Non-Insulated
Surface Treatment：Tin-Plated
Good conductivity
Flared copper sleeve for easy cable insertion
According to UL 486 requirements
Product Feature
Material ：Copper
Insulation ：Non-Insulated
Surface Treatment：Tin-Plated
Characteristics
Good conductivity
Flared copper sleeve for easy cable insertion
According to UL 486 requirements
Non-Insulated Cord End Terminal
Max voltage : 150℃ Ui=300V
Material : Copper
ITEM NO

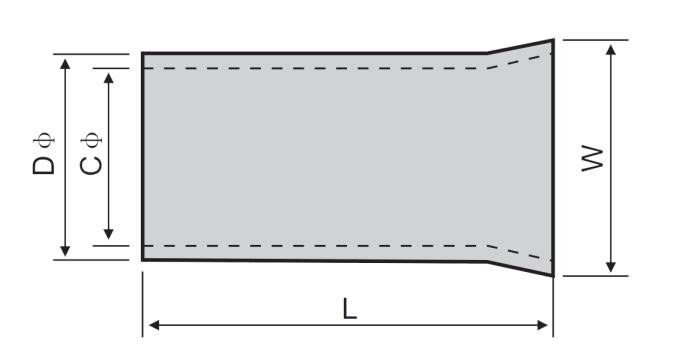

Dimension (mm)
Cable Size
L
D
C
W
mm²
A.W.G.
EN0206
6.0
1.0
0.7
1.4
0.2
26
EN0207
7.0
1.0
0.7
1.4
0.2
26
EN0208
8.0
1.0
0.7
1.4
0.2
26
EN0306
6.0
1.1
0.8
1.5
0.3
24
EN0308
8.0
1.1
0.8
1.5
0.3
24
EN0506
6.0
1.3
1.0
1.7
0.5
22
EN0508
8.0
1.3
1.0
1.7
0.5
22
EN0510
10.0
1.3
1.0
1.7
0.5
22
EN0512
12.0
1.3
1.0
1.7
0.5
22
EN7506
6.0
1.6
1.3
1.9
0.8
20
EN7508
8.0
1.6
1.3
1.9
0.8
20
EN7510
10.0
1.6
1.3
1.9
0.8
20
EN7512
12.0
1.6
1.3
1.9
0.8
20
EN1006
6.0
1.8
1.5
2.2
1.0
18
EN1008
8.0
1.8
1.5
2.2
1.0
18
EN1010
10.0
1.8
1.5
2.2
1.0
18
EN1012
12.0
1.8
1.5
2.2
1.0
18
EN1507
7.0
2.0
1.8
2.5
1.5
16
EN1508
8.0
2.0
1.8
2.5
1.5
16
EN1512
12.0
2.0
1.8
2.5
1.5
16
EN1518
18.0
2.0
1.8
2.5
1.5
16
EN2507
7.0
2.6
2.3
3.3
2.5
14
EN2508
8.0
2.6
2.3
3.3
2.5
14
EN2510
10.0
2.6
2.3
3.3
2.5
14
EN2512
12.0
2.6
2.3
3.3
2.5
14
EN2518
18.0
2.6
2.3
3.3
2.5
14
EN4009
9.0
3.2
2.8
3.9
4.0
12
EN4012
12.0
3.2
2.8
3.9
4.0
12
EN4018
18.0
3.2
2.8
3.9
4.0
12
EN6010
10.0
3.9
3.5
4.8
6.0
10
EN6012
12.0
3.9
3.5
4.8
6.0
10
EN6015
15.0
3.9
3.5
4.8
6.0
10
EN6018
18.0
3.9
3.5
4.8
6.0
10
EN10-12
12.0
4.9
4.5
5.8
10.0
7
EN10-15
15.0
4.9
4.5
5.8
10.0
7
EN10-18
18.0
4.9
4.5
5.8
10.0
7
EN16-12
12.0
6.2
5.8
7.2
16.0
5
EN16-15
15.0
6.2
5.8
7.2
16.0
5
EN16-18
18.0
6.2
5.8
7.2
16.0
5
EN25-16
16.0
7.9
7.5
9.1
25.0
4
EN25-22
22.0
7.9
7.5
9.1
25.0
4
EN35-16
16.0
8.7
8.3
10.2
35.0
2
EN35-25
25.0
8.7
8.3
10.2
35.0
2
EN50-20
20.0
10.9
10.3
12.4
50.0
1
EN50-25
25.0
10.9
10.3
12.4
50.0
1
EN50-30
30.0
10.9
10.3
12.7
50.0
1/0
EN50-32
32.0
10.9
10.3
12.7
50.0
1/0
EN70-22
22.0
14.3
13.5
15.8
70.0
2/0
EN70-25
25.0
14.3
13.5
15.8
70.0
2/0
EN70-30
30.0
14.3
13.5
15.8
70.0
2/0
EN70-32
32.0
14.3
13.5
15.8
70.0
2/0
EN95-25
25.0
15.3
14.5
17.3
95.0
3/0
EN95-30
30.0
15.3
14.5
17.3
95.0
3/0
EN95-32
32.0
15.3
14.5
17.3
95.0
3/0
EN95-34
34.0
15.3
14.5
17.3
95.0
3/0
EN120-32
32.0
17.5
16.5
20.2
120.0
4/0
EN120-34
34.0
17.5
16.5
20.2
120.0
4/0
EN120-38
38.0
17.5
16.5
20.2
120.0
4/0
EN120-40
40.0
17.5
16.5
20.2
120.0
4/0
EN150-32
32.0
20.6
19.6
23.0
150.0
250/300
EN150-34
34.0
20.6
19.6
23.0
150.0
250/300
EN150-38
38.0
20.6
19.6
23.0
150.0
250/300
EN150-40
40.0
20.6
19.6
23.0
150.0
250/300
EN185-32
32.0
21.4
20.2
23.9
185.0
250/300
EN185-40
40.0
21.4
20.2
23.9
185.0
250/300
