Insulation ： Nylon/PP
SurfaceTreatment：Tin-Plated
Heat resistant：-30~100℃
Design the twin double wire crimping structure to save the connection space
According to UL 486 requirements
Insulated Twin Cord End Terminal
Max voltage : 150℃ Ui=300V
Material : Copper
Insulating material : PP.Nylon
ITEM NO

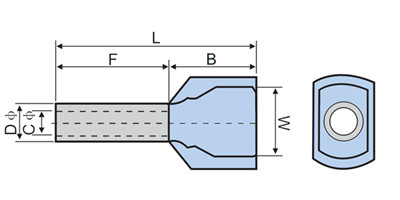

Dimension (mm)
Cable size
F
L
W
E
D
C
mm²
A.W.G.
TE0508
8.0
15.0
5.0
6.5
1.8
1.5
2 * 0.5
2 * 22
TE0510
10.0
17.0
5.0
6.5
1.8
1.5
2 * 0.5
2 * 22
TE0512
12.0
19.0
5.0
6.5
1.8
1.5
2 * 0.5
2 * 22
TE0518
18.0
25.0
5.0
6.5
1.8
1.5
2 * 0.5
2 * 22
TE7508
8.0
15.6
5.3
6.7
2.1
1.8
2 * 0.75
2 * 20
TE7510
10.0
17.6
5.3
7.7
2.1
1.8
2 * 0.75
2 * 20
TE7512
12.0
19.6
5.3
7.7
2.1
1.8
2 * 0.75
2 * 20
TE7518
18.0
25.6
5.3
7.7
2.1
1.8
2 * 0.75
2 * 20
TE1008
8.0
16.2
5.5
7.1
2.4
2.1
2 * 1.0
2 * 18
TE1010
10.0
18.2
5.5
8.1
2.4
2.1
2 * 1.0
2 * 18
TE1012
12.0
20.2
5.5
8.1
2.4
2.1
2 * 1.0
2 * 18
TE1018
18.0
26.2
5.5
8.1
2.4
2.1
2 * 1.0
2 * 18
TE1508
8.0
16.0
6.0
7.2
2.6
2.3
2 * 1.5
2 * 16
TE1510
10.0
18.0
6.0
7.2
2.6
2.3
2 * 1.5
2 * 16
TE1512
12.0
20.0
6.0
8.2
2.6
2.3
2 * 1.5
2 * 16
TE1518
18.0
26.0
6.0
8.2
2.6
2.3
2 * 1.5
2 * 16
TE2508
8.0
17.8
7.8
8.5
3.3
2.9
2 * 2.5
2 * 14
TE2510
10.0
20.0
7.8
9.5
3.3
2.9
2 * 2.5
2 * 14
TE2513
13.0
23.0
7.8
10.5
3.3
2.9
2 * 2.5
2 * 14
TE2518
18.0
28.0
7.8
10.5
3.3
2.9
2 * 2.5
2 * 14
TE4012
12.0
22.2
8.5
11.1
4.2
3.8
2 * 4.0
2 * 12
TE6014
14.0
25.2
9.5
12.1
5.3
4.9
2 * 6.0
2 * 10
TE10-14
14.0
26.0
12.6
12.0
6.9
6.5
2 * 10.0
2 * 8
TE16-14
14.0
30.3
19.0
17.3
8.7
8.3
2 * 16.0
2 * 6
