Two/ Three Pin Plug Pin Crimp Machine
Electrical
2815

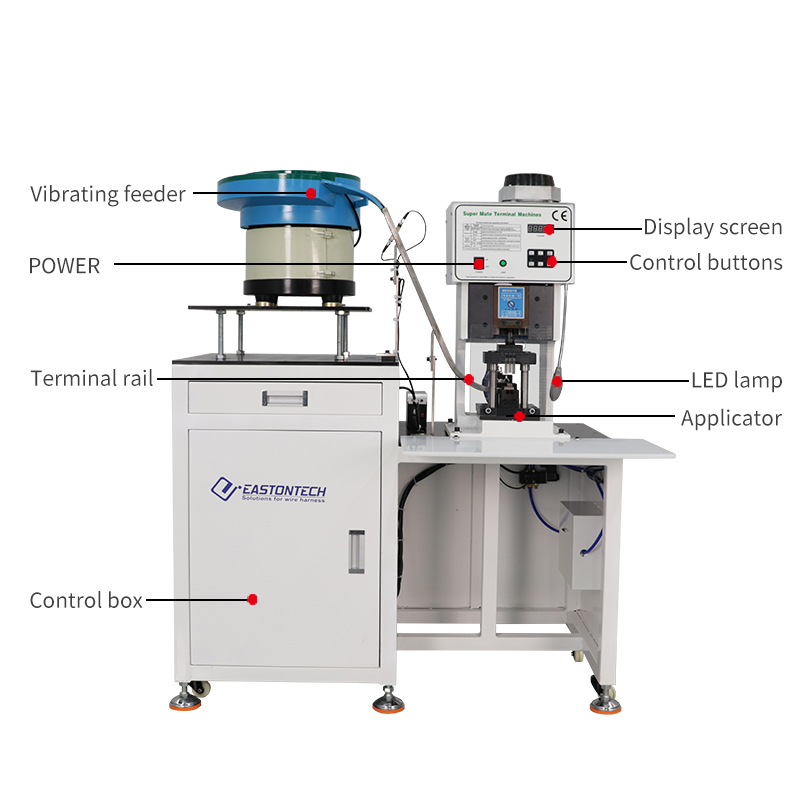

Model：Two/ Three Pin Plug Pin Crimp Machine
Model：EW-5055A
Applicable：Two Pin Plug,
Three Pin Plug
Crimping Force：2-8T
Capacity：1200pcs/h
Air Pressure：5-6KGF
Applicable：Two Pin Plug,
Three Pin Plug
Crimping Force：2-8T
Capacity：1200pcs/h
Air Pressure：5-6KGF
Technical Data
|
Model |
EW-5055A |
|
Applicable |
Two Pin Plug, Three Pin Plug |
|
Detection Method |
Optical fiber amplifier, magnetic switch automatic sensing detection |
|
Feeding Method |
Vibrating plate |
|
Crimping Force |
2-8T |
|
Control Method |
Button/ Foot pedal |
|
Power Supply |
110/220V 50/60HZ |
|
Capacity |
1200pcs/h |
|
Air Pressure |
5-6KGF |
|
Machine Size |
1250*730*1550mm |
|
Machine Weight |
150KGS |

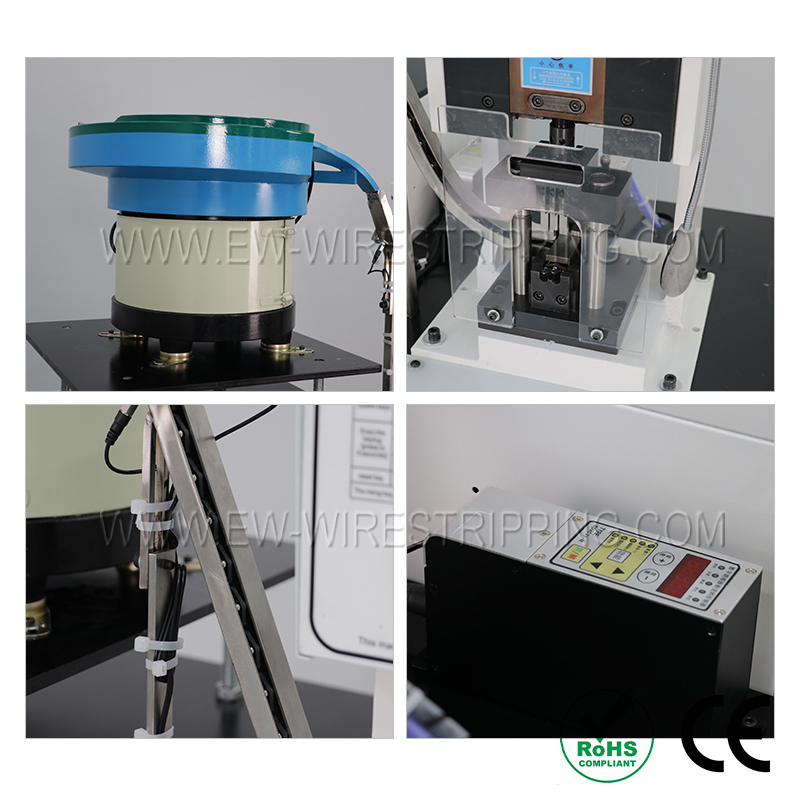

Feature
● Automatic feed and pressure connection can be completed once for all. Equipped with a protective unit on the pressure connection point and it is safe and convenient for operation.
● Maintenance method is simple and fast, the ordinary work staff can also complete the equipment maintenance work.
● Easy to operate, just put the cable in the in terminal, the machine can be crimped.
● Processing precision is in place, the terminal crimping is firmly in place, so that the copper wire is not exposed, the copper wire is not broken, and the terminal is detached

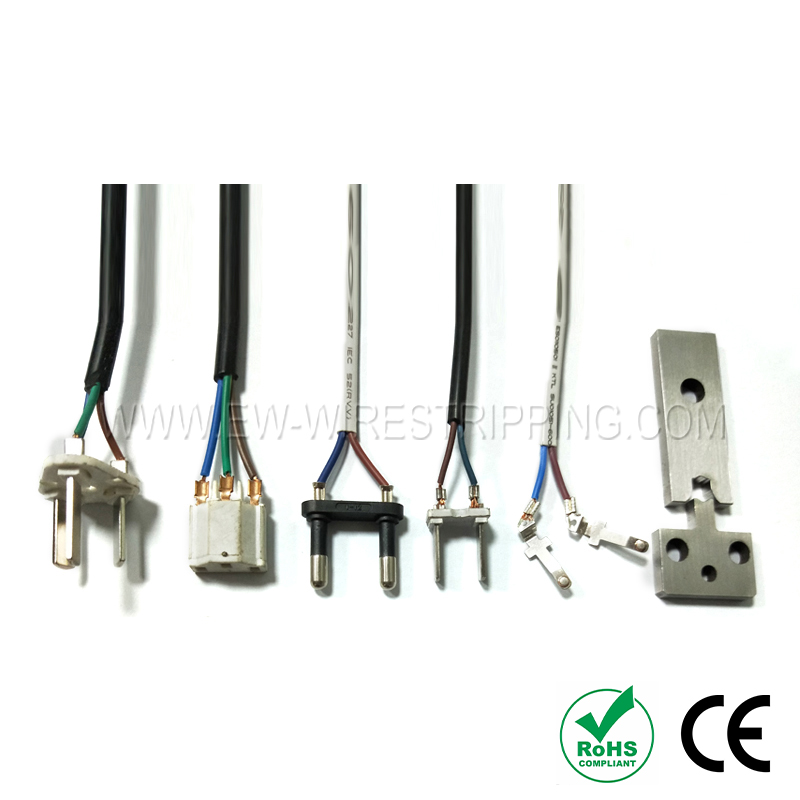

● Applicable terminals: BS inner frame, Australian standard three plug, Brazil three plug, Argentina three plug, South Africa first three-pin terminal, French inner frame, British standard inner frame, Israeli inner frame, inner end frame and other specifications.
● If connector special, support customized base on the sample.
Application Range
