Coaxial Cable Stripping Machine 3-30mm
4673
Model：Coaxial Cable Stripping Machine 3-30mm
Model:EW-06S-3
Wire diameter:3-30mm
Diameter Increments:0.01mm
Capacity:200-500pcs/h(depends on
wire material)
Max. stripping length:200mm
Max. stripping layer:9 layers
Wire diameter:3-30mm
Diameter Increments:0.01mm
Capacity:200-500pcs/h(depends on
wire material)
Max. stripping length:200mm
Max. stripping layer:9 layers
Technical Data
|
Model |
EW-06S-3 |
|
Wire diameter |
3-30mm |
|

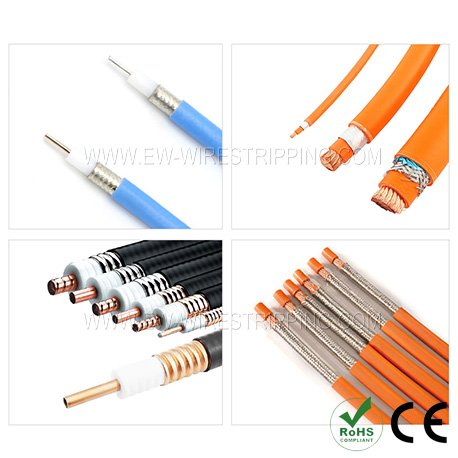

Applicable wire |
New energy cables, coaxial cables, power cables, etc |
|
Stripping mode |
Rotary knife |
|
Max. stripping length |
200mm |
|
Max. stripping layer |
9 layers |
|
Memory program |
99 types of processing parameter data |
|
Drive mode |
Motor/ball screw drive |
|
Display |
Touch Screen |
|
Blades material |
Imported mold steel |
|
Power |
800W |
|
Cut precision |
0.01mm |
|
Dimension |
1100*285*490mm |
|
Power supply |
AC220V/50Hz (110V is optional) |
|
Weight |
145KGS |
Feature
● Multi-Layer Precision Stripping: Capable of stripping up to 9 layers of coaxial cable in a single automatic cycle, including the outer jacket, dielectric, shielding braid, and inner conductor.
● Rotary Blade Technology: Utilizes ultra-sharp, micro-grain tungsten carbide rotary blades and centering mechanisms to guarantee clean, burr-free cuts without damaging the inner conductors.
● Programmable Memory Storage: Store up to 100 groups of processing programs via the user-friendly touchscreen interface, allowing operators to switch between different cable types (e.g., RG58, RG59, RG174) in less than 10 seconds.
● High Processing Accuracy: Features a high-resolution step motor that controls the stripping diameter and depth with an exceptional tolerance of $\pm 0.01\text{ mm}$.
● Rotary Blade Technology: Utilizes ultra-sharp, micro-grain tungsten carbide rotary blades and centering mechanisms to guarantee clean, burr-free cuts without damaging the inner conductors.
● Programmable Memory Storage: Store up to 100 groups of processing programs via the user-friendly touchscreen interface, allowing operators to switch between different cable types (e.g., RG58, RG59, RG174) in less than 10 seconds.
● High Processing Accuracy: Features a high-resolution step motor that controls the stripping diameter and depth with an exceptional tolerance of $\pm 0.01\text{ mm}$.
Application Range
Our coaxial stripping machine is the preferred choice for manufacturing high-quality cable assemblies across multiple sectors:
Automotive Electronics: Processing FAKRA, HSD, and RF cables for GPS, ADAS camera systems, and infotainment modules.
Telecommunications: Prepping high-frequency coaxial cables for 5G base stations, routers, and antenna systems.
Aerospace & Defense: Stripping military-grade, heat-resistant, and heavy-shielded triaxial cables with zero defect tolerance.
Medical Equipment: Delicate processing of miniature coaxial wires used in ultrasound probes and imaging devices.
Automotive Electronics: Processing FAKRA, HSD, and RF cables for GPS, ADAS camera systems, and infotainment modules.
Telecommunications: Prepping high-frequency coaxial cables for 5G base stations, routers, and antenna systems.
Aerospace & Defense: Stripping military-grade, heat-resistant, and heavy-shielded triaxial cables with zero defect tolerance.
Medical Equipment: Delicate processing of miniature coaxial wires used in ultrasound probes and imaging devices.
Frequently Asked Questions
Q1: How many layers can this automatic coaxial wire stripping machine strip in a single cycle?
A: Our automatic coaxial wire stripping machine is highly programmable and can precisely strip up to 9 layers in a single automatic cycle. This includes the outer rubber jacket, metal shielding braid, aluminum foil, inner dielectric insulation, and the central conductor. You can easily configure the cutting depth, speed, and stripping length for each individual layer via the intuitive touchscreen control panel.
Q2: What types of coaxial and RF cables are compatible with your equipment?
A: This machine is highly versatile and compatible with a wide range of high-frequency signal cables, RF cables, and shielded wires. It perfectly processes industry-standard cables such as the RG-series (e.g., RG58, RG59, RG174, RG316), as well as automotive FAKRA and HSD cables. As long as your cable's outer diameter falls within our standard processing range ($\Phi 1.0\text{ mm} - \Phi 8.0\text{ mm}$), the machine will deliver flawless results.
Q3: Will the rotary blades damage the inner conductor or shield during the stripping process?
A: Absolutely not. The machine utilizes an advanced rotary stripping head equipped with imported micro-grain tungsten carbide blades and an automatic centering mechanism. Combined with a high-resolution step motor, the cutting depth accuracy reaches an exceptional tolerance of $\pm 0.01\text{ mm}$. This ensures the blade cleanly scores the insulation or shielding layer without ever nicking or scraping the delicate inner conductor strands.
Q4: How difficult is it to switch between different cable processing programs?
A: It is extremely simple and takes less than 10 seconds. The microprocessor system features a built-in memory bank that can store up to 100 groups of customized programs. Once your engineering team sets up and saves the parameters for a specific cable (such as an RG58 cable), the operator only needs to select the corresponding program number on the touchscreen for future production runs—no manual mechanical adjustments required.
Q5: Can I test my specific, high-requirement coaxial cable before placing an order?
A: Yes, we highly recommend it! Eastontech offers a 100% Free Sample Testing Service for global buyers. You can ship your specific cable samples to our factory. Our engineering team will calibrate the machine, perform the stripping process, and send you a comprehensive evaluation report along with a high-definition video of the test run within 48 hours. This guarantees the machine meets your exact quality standards before you make any investment.
