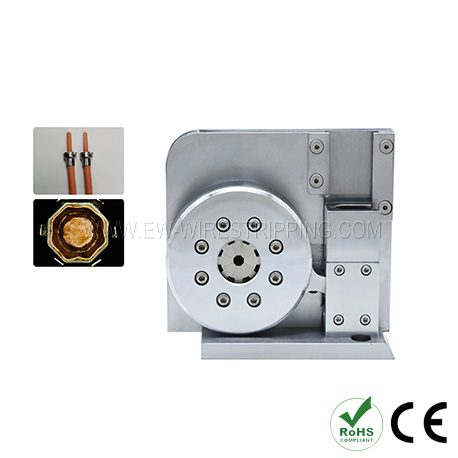

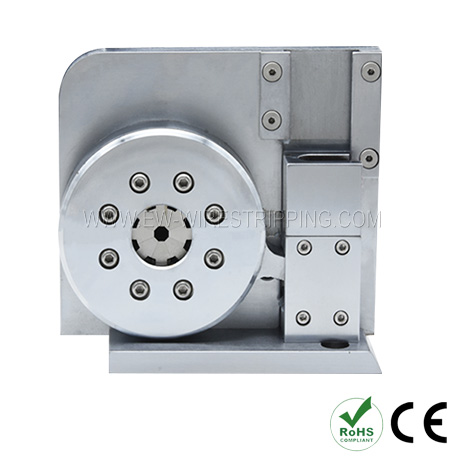

Octagonal Ring Shield Crimping Die&Applicator
Moulds&Accessory
2781
Model：Octagonal Ring Shield Crimping Die&Applicator
Model:EW-09H007
Crimping range: According to the diameter of the shielding ring
Shielding ring diameter: 5-30mm
Dimensions:172*96*162mm
N.W.:6.3KGS
Crimping range: According to the diameter of the shielding ring
Shielding ring diameter: 5-30mm
Dimensions:172*96*162mm
N.W.:6.3KGS
Technical Data
| Model | EW-09H007 |
| Crimping accuracy | ±0.03mm |
| Number of crimping | ≧300,000 times |

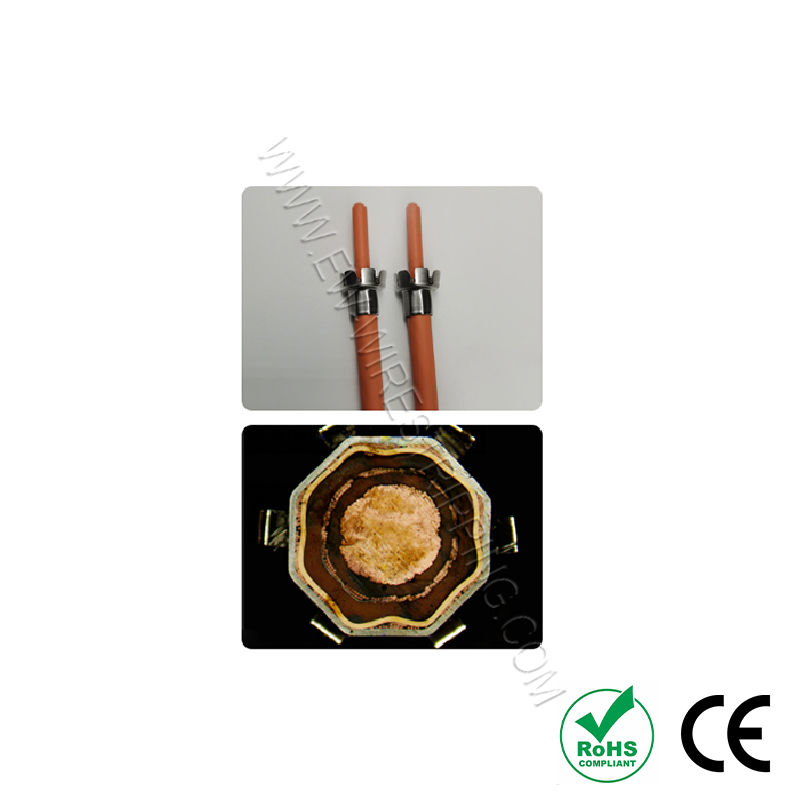

| Crimp shape | Octagonal |
| Crimping range | According to the diameter of the shielding ring |
| Stroke | 0-30mm |
| Shielding ring diameter | 5-30mm |
| Dimensions | 172*96*162mm |
| N.W. | 6.3KGS |
Feature

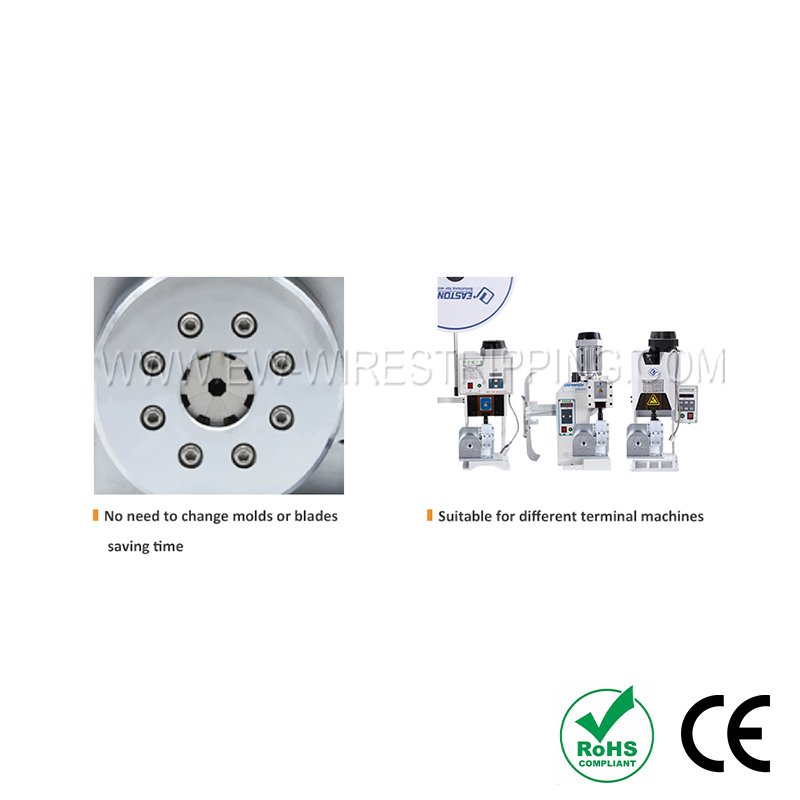

● Applicable equipment:
Silent terminal machine below 4T.
5T servo terminal crimping machine.
Pneumatic hydraulic connection machine.
