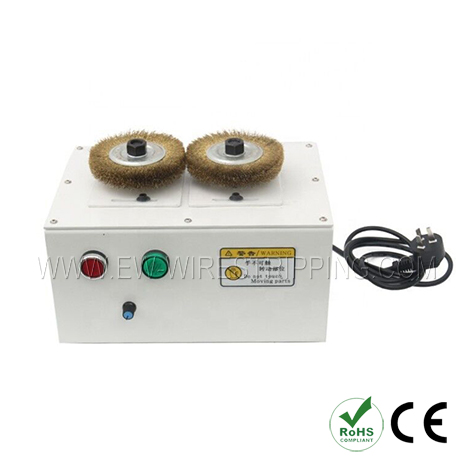

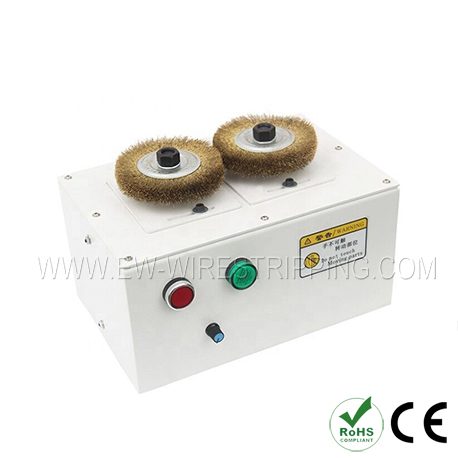

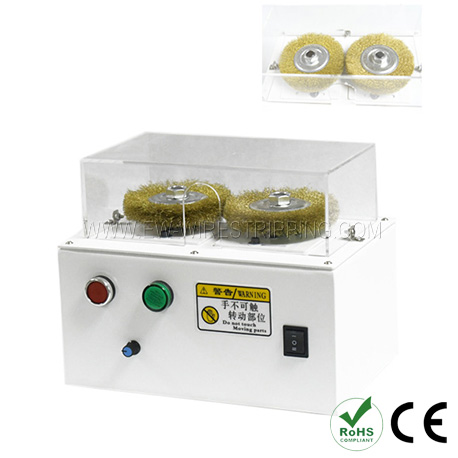

| Model | EW-1010 |
| Wire diameter | 1-8mm |
| Brushing length | 5-50mm |
| Motor speed | 1-6000rpm (Can be adjusted) |
| Drive System & Power | Dual Motor Drive (50 W * 2 = 100 W Total) |
| Rotational Direction | Adjustable / Reversible (Forward & Reverse) |
| Brush Wire Clearance | Adjustable for varying wire diameters |
| Weight | 10KGS |
| Dimension | 320*220*260mm |

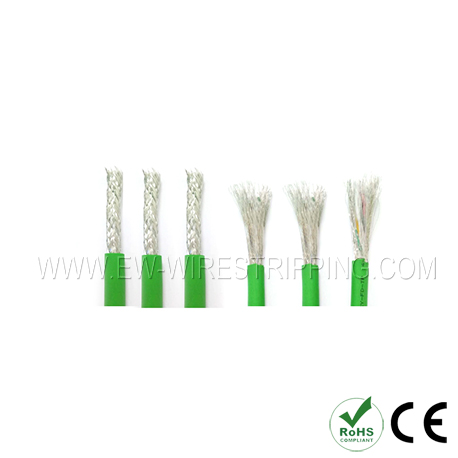

● Automated Shield Unbraiding:Quickly brushes out braided, woven, and spiral-wrapped wire shielding into smooth, parallel strands, replacing labor-intensive manual combing.
● Wide Cable Diameter Range (1–8 mm):Accommodates a broad variety of signal leads, communication lines, and multi-core shielded wires with 5 to 50 mm brushing lengths.
● Dual-Motor Speed & Direction Control:Powered by dual 50 W motors with continuously variable speed control (1–6,000 RPM) and reversible rotation to handle tough, tightly woven braids.
● Adjustable Brush Clearance:Allows quick micro-adjustment of the brush wire spacing to accommodate different wire gauges while protecting delicate core insulation.
● Automotive & EV Wiring Harnesses:Shielded CAN bus cables, sensor lines, and infotainment wiring shield preparation.
● Consumer & Industrial Electronics: USB cables, HDMI/DisplayPort leads, coaxial lines, and multi-core shielded power cords.
● Medical & Precision Telecommunications:Low-noise shielded sensor cables and high-speed data transmission lines.
● Aerospace & Defense Cabling:Opening dense metal braid shielding prior to grounding sleeve or connector assembly.
Q1: Why should I use an automatic cable shielding brushing machine instead of manual unbraiding?
A: Manual shield combing with picks or handheld brushes is slow, inconsistent, and leads to operator fatigue and repetitive strain injuries. The EW-1010 automates the process using dual rotating brushes, completing the task in seconds with uniform results while preventing damage to internal wire insulation.
Q2: Can the EW-1010 handle both spiral-wrapped and tightly braided shielding nets?
A: Yes. The machine features adjustable motor speeds (up to 6,000 RPM) and reversible rotation directions. This allows operators to tailor the brushing action specifically for loose spiral wraps or stiff, tightly woven copper/aluminum braided wire layers.
Q3: How do I adjust the machine when switching between thin signal wires and thicker cables?
A: The EW-1010 includes an adjustable brush wire mechanism. Operators can widen or narrow the clearance between the brushes to match the exact outer diameter of the wire (between 1 and 8 mm), ensuring optimal brushing efficiency without pinching or scraping the inner cores.
