Model |
EW-2505 |

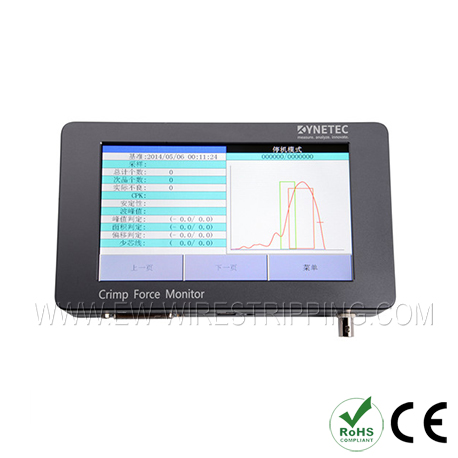

| Machine Category | Inline Crimp Force Monitor (CFM System) |
| Channel Count | 1 Channel / 2 Channels (1CH–2CH) |
| Sampling Speed Rate | Max. 20,000 samples / second |
| Measurement Precision | 0.3 Grade |
| Force Evaluation Methods (EOS) | Peak, Area, SC (Shape Comparison), Shift |

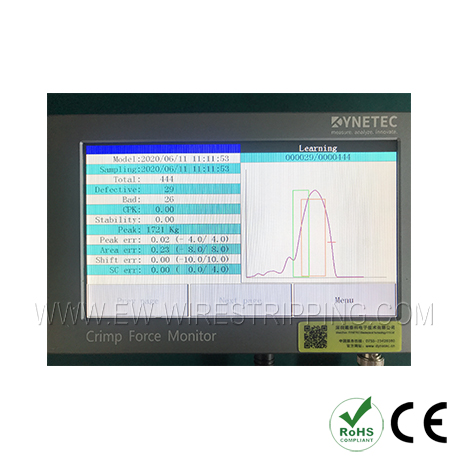

| Test Results & Visual Output | OK / Not OK Judgment, Force Curve, Measured Values, Trend Graphs |
| Sensor Mounting Types | Side Mount / Bottom Mount / Top Mount |
| Control Signal Output | Relay / Pulse Output (Machine Stop / Defect Signal) |
| Alarm Memory Capacity | Up to 500 latest warning records stored in unit |
| Interface Port | USB Port (PC Application Data Sync) |
|
Power supply |
5V3A |
| Mounting & Form Factor |
Panel Mount / Side Mount |
● High-Speed 20,000 Hz Force Sampling: Captures up to 20,000 data points per second, delivering high-resolution force curve rendering to detect tiny structural variations in terminal crimps.

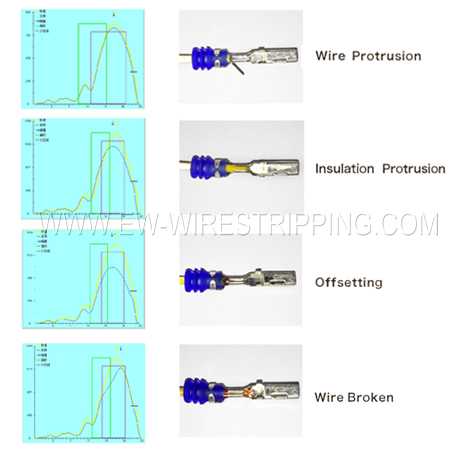

● 4-Way Precision Evaluation Algorithms (Peak / Area / SC / Shift):Analyzes peak force, curve area, shape deviation (SC), and timing shift to identify missing strands, incorrect wire gauges, insulation in wire barrels, and uneven terminal hardness.
● Flexible 1CH / 2CH Dual Channel Support:Configurable for single-station benchtop presses or dual-head automatic wire processing machines.

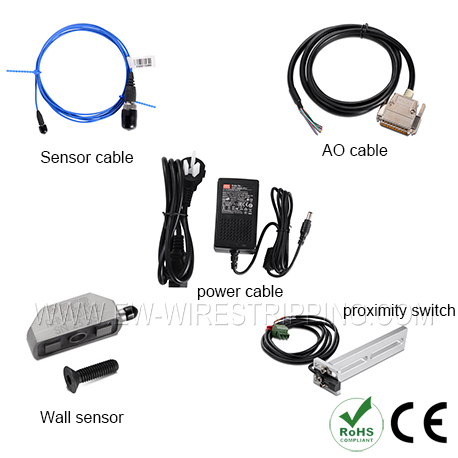

● Universal Crimp Press & Sensor Compatibility: Connects seamlessly to all brands of crimping machines with flexible piezo sensor mounting options (Side Mount, Bottom Mount, Top Mount).
● Instant Relay Interlock Output:Sends immediate OK / Not OK relay or pulse signals to lock the machine or activate rejection mechanisms upon detecting a defective crimp.
● Complete PC Traceability & Parameters Import/Export:Dedicated PC application saves all historical crimp waveforms and data for quality auditing, allowing quick parameter recipe backups via USB.
● Automotive Wire Harness Production:100% inline force verification for critical safety wiring, ABS control leads, and airbag harness terminals.
● High-Precision Industrial Wiring:Quality monitoring for ring terminals, spade connectors, and pin contacts in power distribution panels.
● Home Appliance & HVAC Electronics:Benchtop and automatic crimp quality control for power supply cords and internal control board wiring.
● Medical & Aerospace Assemblies: High-traceability wire processing requiring total data logging and zero-defect crimp validation.
Q1: How does the EW-2505 detect crimping defects that look visually correct?
A: Even if a crimped terminal looks correct externally, missing wire strands or insulation caught inside the core barrel alters the mechanical resistance during the press stroke. The EW-2505 detects these minute force variations in real time using its 20,000 Hz sampling curve analysis.
Q2: Can the EW-2505 Crimp Force Monitor be retrofitted onto existing third-party crimping presses?
A: Yes. The EW-2505 is universally compatible with all types of manual, semi-automatic, and fully automatic crimping equipment. It supports side, top, or bottom sensor mounting to fit various ram and frame structures.
Q3: How does the PC application assist in wire harness data traceability?
A: The included PC application logs all crimping force curves, peak values, and OK/Not OK results. This data can be archived for customer quality audits, batch tracking, and statistical process control (SPC).
