| Model | EW-1535 |
| Machine Category | Fully Automatic One Head Wire Splicing Machine |
| Applicable Wire Range | AWG28-AWG18 |
| Compatible Components | Taped / Braided Resistors, Diodes, Sensors & Passive Components |
| Stripping Length Range | 3.0 – 14.0 mm (Customizable for longer lengths) |
| Lead screw and guide rail | Original Taiwan WIHIN |
| Wire Cutting Length Range | 20-999mm |
| Production Speed Capacity | 2000-3200pcs/h |
| Power | 2.5KW |
| Splice / Crimping Force | 2.0 Tons (20 kN) |
| Power | 220V/110V/50/60HZ |
| Motion Drive & Linear Rails | Precision Stepper Motors & Original Taiwan HIWIN Lead Screws / Rails |
| Pneumatic System Components | Genuine SMC Pneumatic Valves & Cylinders |
| Control System Architecture | Self-Developed Programmable Numerical CNC System |
| Air Pressure Requirement | 0.5-0.65Mpa |
| Machine Dimensions (L × W × H) | 720*850*1600mm |
| Weight | 260KGS |
● All-in-One Automated Splicing Workflow: Integrates wire feeding, precision cutting, stripping, taped component feeding, lead trimming, wire-to-component splicing, and automated fault detection into a unified process.
● Integrated Taped Resistor Feeding System:Purpose-built feeding module with one-sided adjustment seamlessly feeds taped/braided resistors, trimming leads cleanly and flatly before splice crimping.
● High Production Speed (Up to 3,200 pcs/h):Driven by high-precision stepper motors and Taiwanese HIWIN guide rails, achieving rapid cycles of 2,000–3,200 finished assemblies per hour.
● 2.0 Ton Splice Force & Alloy Steel Blades:Delivers 2.0 Tons (20 kN) of crimp force for high mechanical pull-out strength, utilizing precision-ground imported alloy steel blades for clean, burr-free cuts.
● Programmable Numerical CNC Control:Self-developed CNC touch control system allows digital setting of wire length, strip length (3–14 mm), tail length, full/half-stripping modes, and target batch counting.
● Industrial SMC Pneumatics & Heavy Frame:Built with genuine SMC pneumatic valves and cylinders mounted on a rigid 260 kg chassis to minimize operational vibration and maintenance downtime.

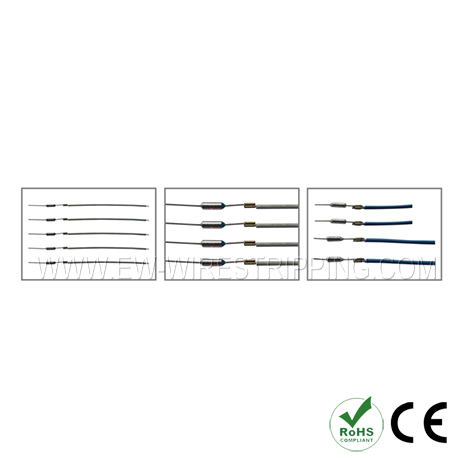

● Automotive & Appliance Sensor Sub-Harnesses:Automated lead wire splicing onto taped thermistors, temperature sensors, and resistor sub-assemblies.
● Resistor & Diode Lead Wire Interconnections: High-volume automated wire splicing for braided/taped axial-lead components.
● PCB & In-Line Harness Electronics:Precision cutting, stripping, and crimp-splicing of lead wires requiring in-line passive components.
● Industrial Control & Power Supplies: Gas-tight, reliable wire-to-component joints engineered to withstand continuous mechanical vibration.
Q1: What components can be automatically spliced with wire leads on the EW-1535?
A: The EW-1535 is designed to automatically feed, trim, and splice wire leads onto taped or braided axial electronic components, such as resistors, diodes, thermistors, and discrete circuit sensors.
Q2: What wire sizes and production speeds does the EW-1535 support?
A: The machine processes insulated wires from AWG28 to AWG18 with cutting lengths from 20 to 999 mm, achieving automated output speeds between 2,000 and 3,200 pieces per hour.
Q3: How does the EW-1535 ensure flat component leg cutting and accurate alignment?
A: The machine features a dedicated component feeding module with one-sided adjustment that seamlessly aligns taped resistors with the cutting head, delivering flat, burr-free component lead cuts before splice crimping.
