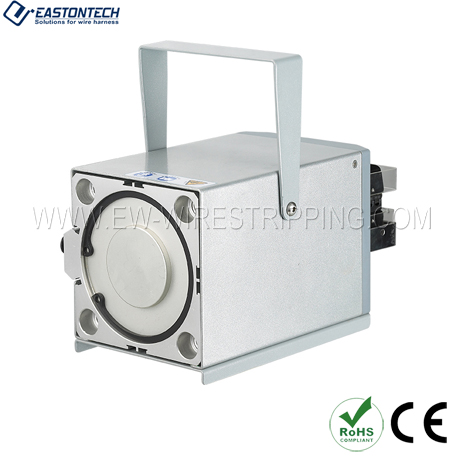

Model |
FEK-20M |
| Machine Category | Multi-Functional Pneumatic Wire Crimping Machine |
| Crimp Output Force | 2.0 Tons (approx. 20 kN) |
| Non-Insulated Terminal Range |
≤ 16.0 mm² |
| Insulated Terminal Range | ≤ 6.0 mm² |
| Wire Ferrule (Bootlace) Range | ≤ 35.0 mm² |
| Maximum Processing Speed | Up to 1,200 crimps / hour |
| Die Attachment System | Interchangeable Quick-Change Dies |
|
Air Pressure |
0.6-0.8 MPa |
|
External Dimension |
275*128*145mm |
|
Weight |
6KGS |
● Powerful 2.0 Ton (20 kN) Crimp Output:Pneumatic cylinder output ensures uniform crimping pressure without relying on physical operator hand strength.
● Interchangeable Quick-Change Die Sets: Compatible with a wide array of quick-swap crimping dies for non-insulated, insulated, open-barrel, and ferrule terminals.
● High-Speed Output (Up to 1,200 Crimps/Hour):Foot-pedal operation increases bench production speed up to 400% over manual hand crimpers, hitting cycle rates of 1,200 ties per hour.
● Broad Wire Range (Up to 35 mm² Ferrules):Accommodates non-insulated terminals up to 16 mm², insulated lugs up to 6 mm², and bootlace end-ferrules up to 35 mm².
● Ultra-Compact 6 kg Benchtop Design:Footprint of just 275 × 128 × 145 mm fits easily on congested assembly benches and mobile work carts.
● Ergonomic & Low-Maintenance Operation: Smooth pneumatic actuation lowers operator hand strain and repetitive motion injuries while providing long operational durability.
● Electrical Control Cabinet & Panel Building: Rapid crimping of bootlace ferrules up to 35 mm² for PLC control modules and DIN-rail terminal blocks.
● Automotive & Commercial Harness Assembly:High-repeatability crimping of non-insulated and insulated ring, fork, and disconnect terminals.
● Industrial Appliance & Equipment Wiring:Fast, consistent crimping for internal power distribution harnesses and grounding wires.
● Contract Electronics & Custom Harness Production:Ideal for high-mix, low-to-medium volume bench stations requiring quick die changeovers.
Q1: What terminal types can be crimped using the FEK-20M?
A: The FEK-20M supports a wide variety of terminals including non-insulated terminals (up to 16 mm²), insulated terminals (up to 6 mm²), and wire end ferrules (up to 35 mm²), depending on the installed interchangeable die set.
Q2: How easy is it to change crimping dies on the FEK-20M?
A: The machine features a quick-change die locking mechanism that allows operators to swap die sets in seconds without disassembling the main pneumatic drive housing.
Q3: What air supply pressure is required to achieve full 2.0T crimp force?
A: The FEK-20M operates on standard industrial compressed air at a pressure range of 0.6 to 0.8 MPa.
