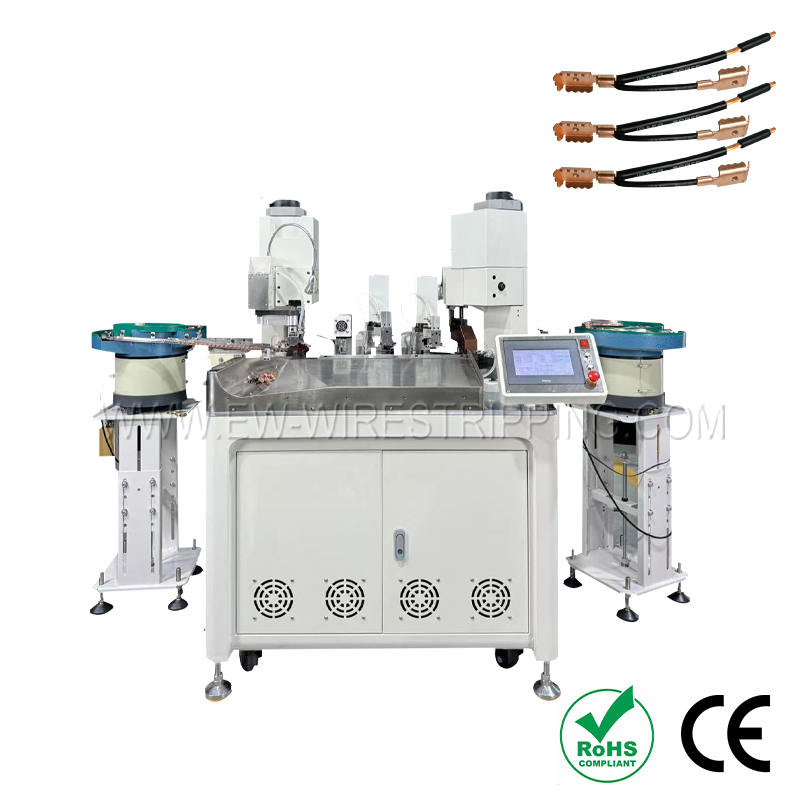

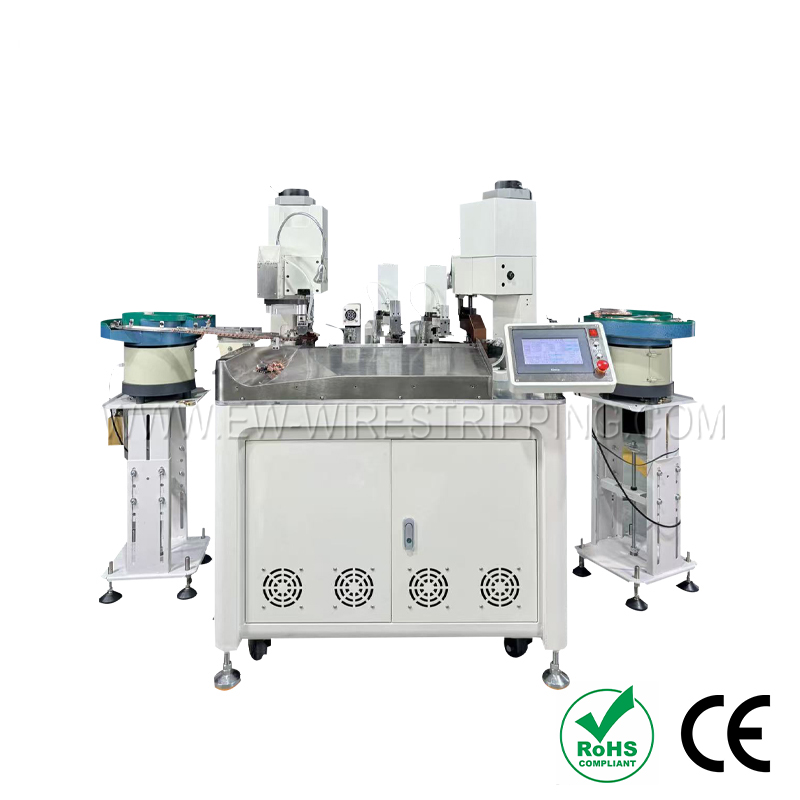

Fully Automatic Loose Terminal Two Wire Joint Crimping Machine
Joint Crimping
36
Model：Fully Automatic Loose Terminal Two Wire Joint Crimping Machine
Model: EW-9575
Applicable wire range: AWG14-10
Cutting length: 50-99999mm
Dimension: 750*1000*1800mm
Weight: 500Kg
Applicable wire range: AWG14-10
Cutting length: 50-99999mm
Dimension: 750*1000*1800mm
Weight: 500Kg
Technical Data
|
Model |
EW-9575 |
|
Applicable wire range |
AWG14-AWG10 |
|
Stripping length |
Front:0.5-8.0mm,Back:0.1-10.0mm |
|
Cut precision |
For wire lengths under 100mm, the error is 0.2+(wire length * 0.002). For wire lengths over 100mm, the error is 0.5+(wire length * 0.002). |
|
Cutting length |
50-99999mm |
|
Capacity |
Wire length 60-100mm, about 1400 lines/hour (depending on the material) |
|
Cutting depth |
Maximum adjustment: 5.50mm, resolution: 0.01mm |
|
Air pressure |
0.5Mpa |
|
Function |
Wire cutting, single-end stripping, double-end stripping, double-end crimping, one-end crimping and one-end half stripping; stripping length,crimping position,knife depth can be adjusted |
|
Detection |
device Low air pressure Presence of wires Abnormal crimping Abnormal wire entry |
|
Power |
AC200V-242V 50/60Hz,10A |
|
Dimension |
750*1000*1800mm |
|
Weight |
500Kg |
Feature
● The machine utilizes primarily branded components, completing functions such as wire cutting, stripping, and terminal crimping with precise motion and stable performance.
● The main unit features a built-in four-wheel synchronous wire feeder to maintain constant wire tension and an automatic terminal strip cutter.
● The main unit is controlled by a motion control card, with parameter settings in both Chinese and English on the touch screen, ensuring quick adjustments and easy operation.
● It is suitable for both horizontal and direct feed OTP terminal dies.
● Energy-saving, space-saving, and environmentally friendly equipment.

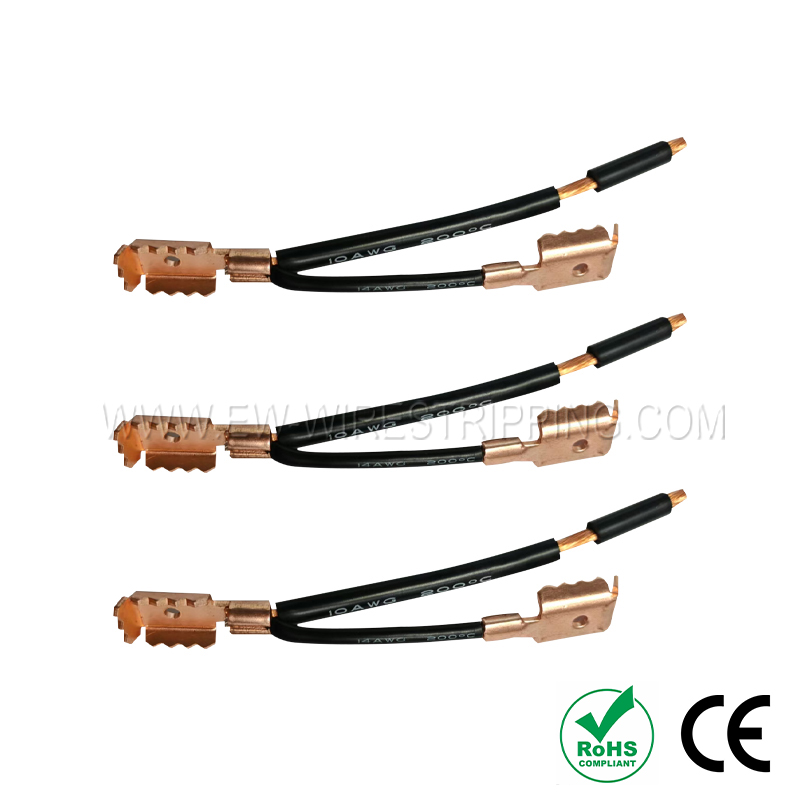

Application Range
