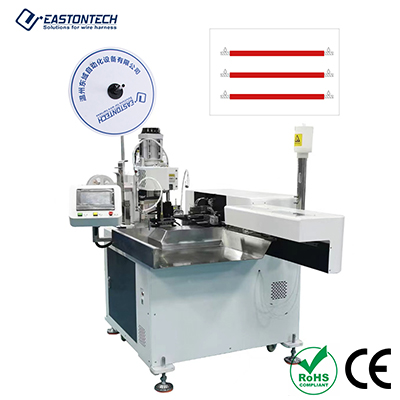

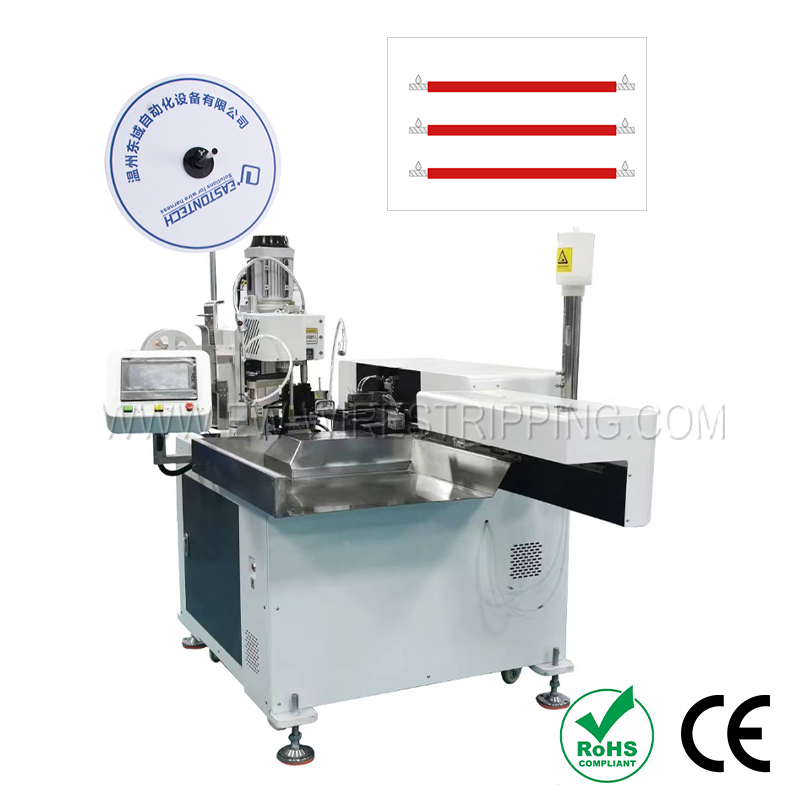

Full-Automatic Double-End Wire Tinning and Terminal Crimping Machine
Tinning Crimping
81
Model：Full-Automatic Double-End Wire Tinning and Terminal Crimping Machine
Model: EW-9565
Crimping capacity: 2T
Applicable wire diameter: 26#-18#
Tinning length: within 11mm
Dimensions: 1750*1220*1550mm
Crimping capacity: 2T
Applicable wire diameter: 26#-18#
Tinning length: within 11mm
Dimensions: 1750*1220*1550mm
Technical Data
|
Model |
EW-9565 |
|
weight |
480kg |
|
Dimensions |
L1750*W1220*H1550mm |
|
Placement space |
4 square |
|
power |
Within 3000W |
|
power supply |
AC220/50Hz |
|
Air pressure |
0.4mpa-0.8mpa |
|
Crimping capacity |
2T |
|
Display |
Touch screen LCD |
|
Applicable wire |
Electronic wire, electronic wire, etc. |
|
Parallel production capacity |
800-1000 times*number of items |
|
Electronic wire dipping capacity |
Time limit 1000 to 1300 times*number of items |
|
Double-dip production capacity |
According to 100mm length, it is about 1100-1300 times/h |
|
Cutting length |
Double dip within 830mm , single dip 45-830mm |
|
Peeling length |
The standard machine has a front and rear blade distance of 12mm and a complete rubber removal capacity of 9mm. |
|
Wire diameter |
26#-18# |
|
Tinning length |
within 11mm |
|
Twisted wire length |
Marking machine 2mm-10mm |
|
Rewinding mode |
Rotating pay-off |
|
transmission |
Screw, guide rail, synchronous belt |
|
Detection |
End detection, missing wire detection, wire knot detection, paper collection detection, air pressure detection |
|
Assistive devices |
Horizontal and vertical terminal leakage , collection of waste flux , collection of waste tin slag , collection of waste rubber |
Feature
● Multifunctional parallel wire/electronic wire stripping and tinning + rear end crimping, rear end translation and rotation crimping, making it more convenient to crimp long terminals.
● The blade size, cutting length, slit depth, slit length, twisting speed, tinning depth, and glue coating depth are all CNC controlled.Quick switching; post-pull cutting to a fixed length, precise and consistent length, and rotary arm take-up.
● The tool holder is a grinding screw double guide rail servo, which sucks and blows the rubber to make it clean; it rotates back and forth with a precision screw double guide rail servo.
● The knife holder, peeling rotation, rear end translation and air clamp are all hard and finely ground parts with long service life.
● Built-in abnormal signal monitoring indicator light, easy to check faults at a glance.

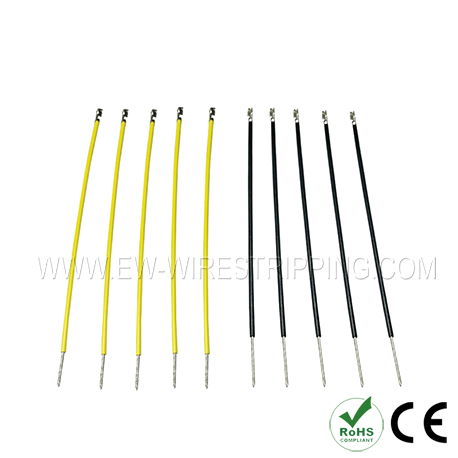

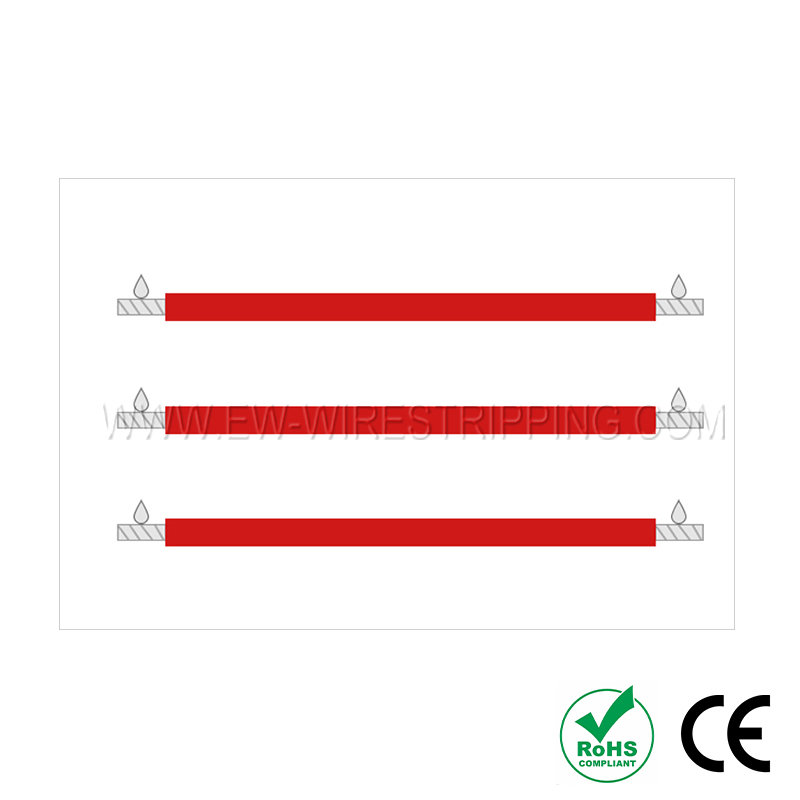

Application Range
