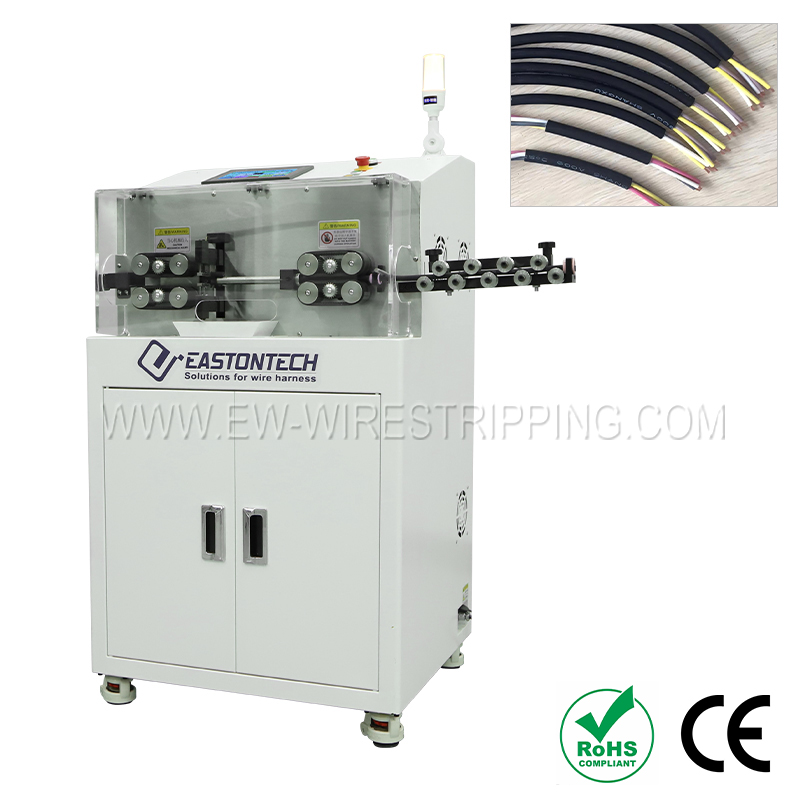

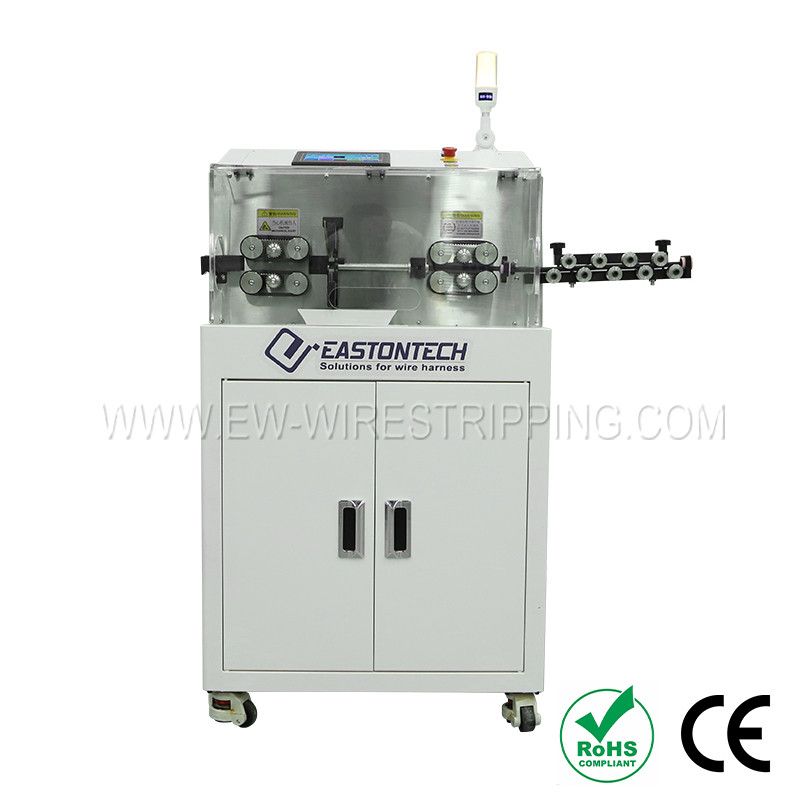

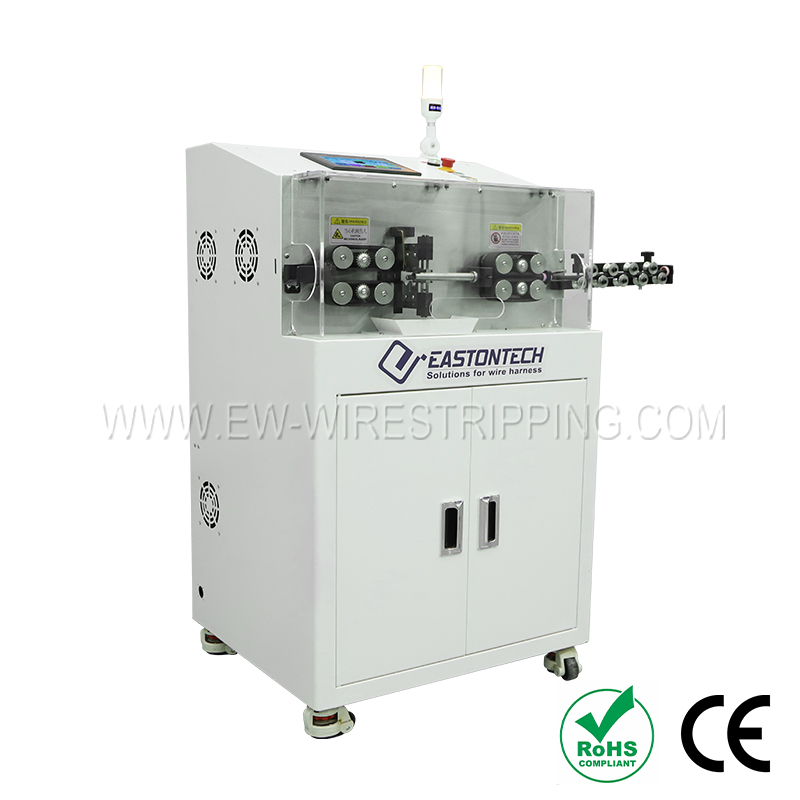

Fully Automatic Sheathed Wire Cutting Stripping Machine Electric Model
Pro-cut&Strip
56
Model：Fully Automatic Sheathed Wire Cutting Stripping Machine Electric Model
Model: EW-3390
Processing Diameter: 2-6mm
Core wires: 1-8 cores
Guide Tube Diameter: 3 - 13mm
Stripping Speed: 1,000 pcs/hour
Rated Power: 1100W
Processing Diameter: 2-6mm
Core wires: 1-8 cores
Guide Tube Diameter: 3 - 13mm
Stripping Speed: 1,000 pcs/hour
Rated Power: 1100W
Technical Data
|
Applicable Wire Types |
Multi-core sheathed wires, multi-core cables |
|
Processing Diameter |
Overall: 2-6mm; Core wires: 1-8 cores |
|
Cutting Length |
0.5mm - 99999.9mm; Mid-span insulation length: >120mm |
|
Max. Outer Sheath Stripping Length |
Front: 200mm; Rear: 150mm (Wire material dependent) |
|
Core Stripping Length |
Front: 30mm; Rear: 30mm |
|
Guide Tube Diameter |
3 - 13mm |
|
Stripping Speed |
Up to 1,000 pcs/hour (Based on 500mm wire length, wire material dependent) |
|
Drive Mechanism |
Belt-driven wire feeding, 8-wheel drive system, independently driven cartridge |
|
Rated Power |
1100W |
|
Power Supply |
AC 220V/110V, 50/60Hz |
|
Dimensions (L*W*H) |
700*600*1180 mm |
|
Net Weight |
148 kg |
Feature

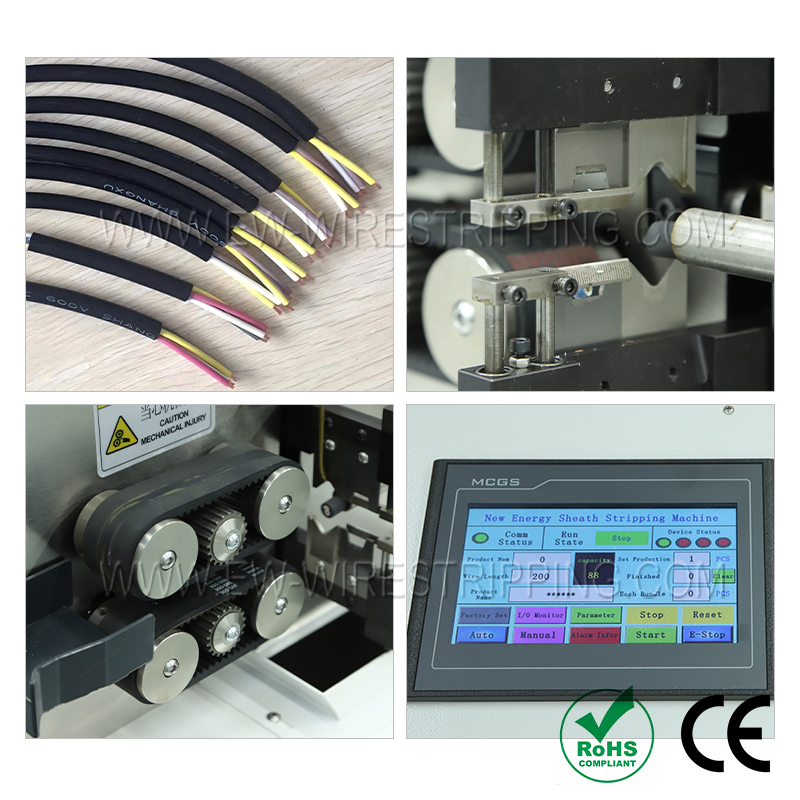

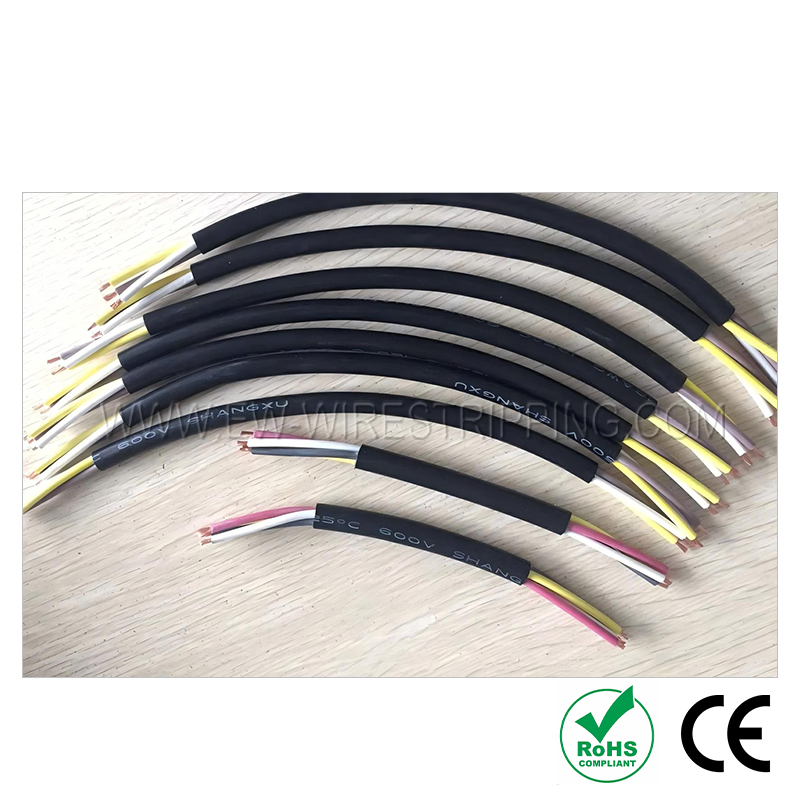

● Specializing in the cutting and stripping of round or flat sheathed cables, as well as special single-core wires.
● The mobile cutter holder features separate tools assigned to cutting and stripping functions, producing burr-free cuts.
● The belt-driven feeding system ensures higher precision, significantly enhancing overall efficiency.
● The system supports up to 200 stored programs, ensuring full data integrity with quick access.
