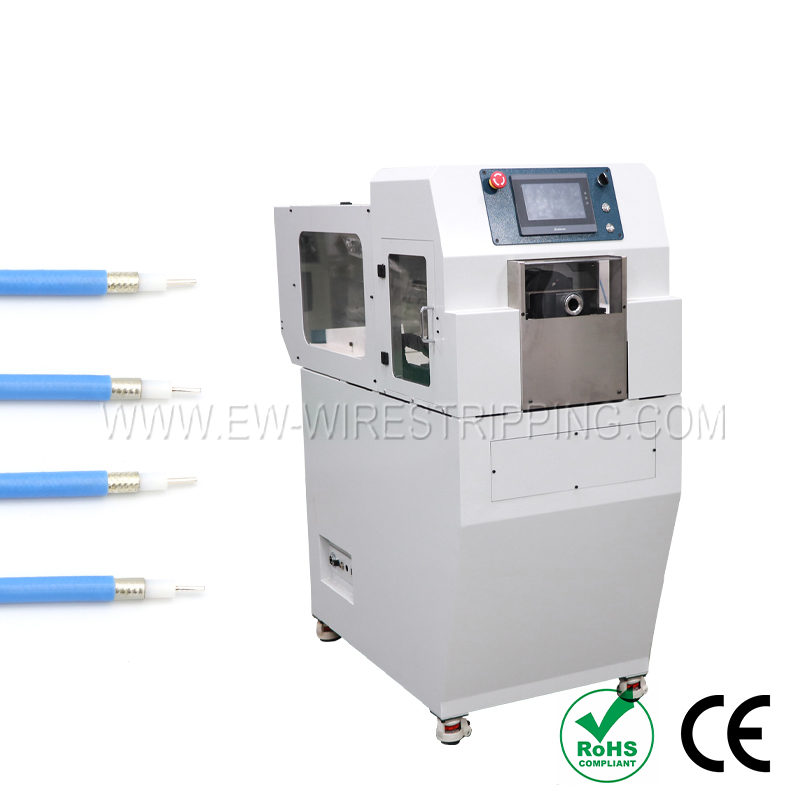

Multi-Layer Rotary Coaxial Cable Stripping Machine(OD 5-26mm)
1146
Model：Multi-Layer Rotary Coaxial Cable Stripping Machine(OD 5-26mm)
Model:EW-0690
Wire diameter:5-26mm
Max. stripping length:500mm
Max. stripping layer:9 layers
Productivity:300-500pcs./h
Wire diameter:5-26mm
Max. stripping length:500mm
Max. stripping layer:9 layers
Productivity:300-500pcs./h
Technical Data
|
Model |
EW-0690 |
|
Wire diameter |
5-26mm |
|
Max. stripping length |
500mm |
|
Diameter increments |
0.01 mm |
|
Max. stripping layer |
9 layers |
|
Productivity |
300-500pcs./h |
|
Power |
2000W |
|
Weight |
225kg |
|
Stripping mode |
Rotary stripping |
|
Display |
Touch Screen |
|
Air pressure |
N/A |
|
Dimension |
1250X670X1400mm |
|
Pedals |
Yes |
Feature
● This rotary coaxial cable stripping machine is professionally designed for multi-layer shielded wire processing, capable of removing outer sheath, aluminum foil and braided shielding in one working cycle.
● Standard processing range covers outer diameter from 5mm to 26mm, with maximum single-side stripping length up to 500mm and support for up to 9 sequential stripping layers.
● Fine cutting adjustment with 0.01mm diameter increment ensures precise cutting without scratching inner core conductors during multi-layer stripping.

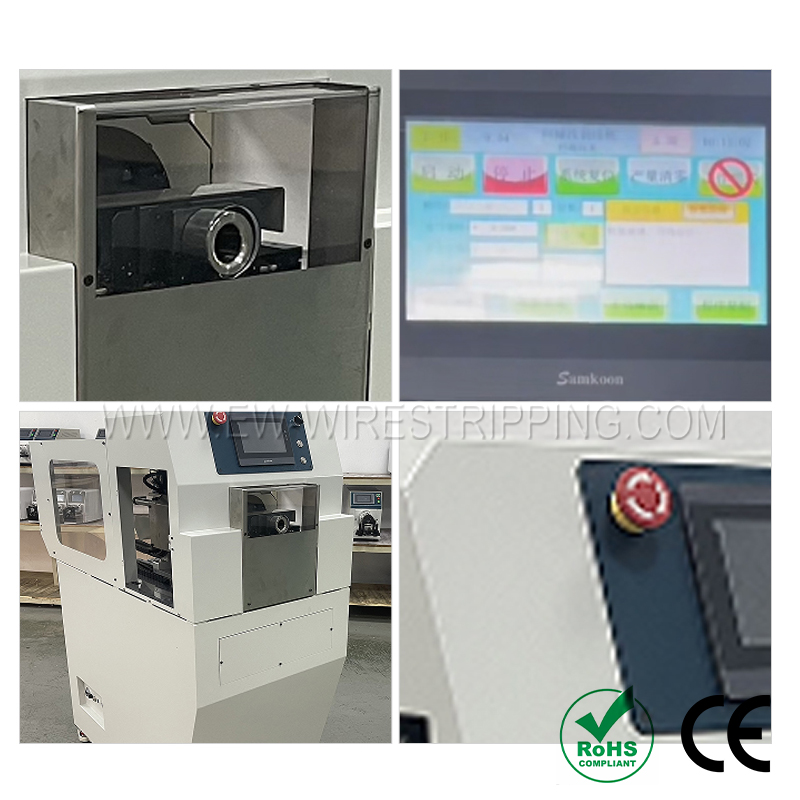

● Equipped with high-power 2000W servo driving system and intuitive color touch screen for easy parameter setup and program storage.
● Dual start modes available: foot pedal control and manual button operation to adapt different workshop production habits.
● Hourly production output ranges from 300 to 500 pieces based on cable structure, layer quantity and stripping specifications.
● No compressed air required for operation, effectively saving factory pneumatic pipeline construction cost and workshop layout trouble.
● Overall dimension 1250*670*1400mm with net weight 225KG for stable long-time continuous industrial production.
● CE & RoHS certified to meet global manufacturing safety standards for automotive, new energy and aerospace factories.
Application Range

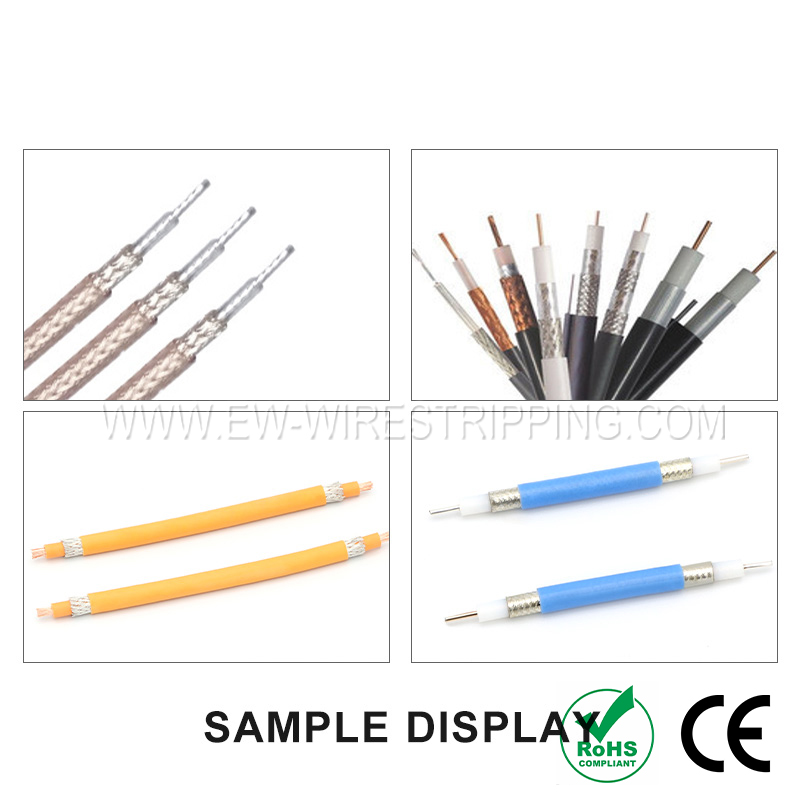

● New energy vehicle high-voltage wiring harness multi-layer coaxial cable outer sheath and shielding stripping processing.
● Automotive and motorcycle internal shielded control wire, sensor coaxial cable pre-production stripping work.
● Aerospace industry multi-layer insulated shield wire and high-reliability special cable peeling manufacturing.
● RF coaxial, communication shielded cable and industrial equipment multi-core composite wire stripping production.
● Pre-processing for subsequent terminal crimping and connector assembly to reduce manual workload and improve finished yield.
Frequently Asked Questions
Q: What outer diameter range can this multi-layer coaxial stripping machine handle?
A: It is designed for cables with outer diameter between 5mm and 26mm, suitable for various multi-layer shielded and coaxial wires.
Q: How many layers of insulation and shielding can this rotary stripper peel in one pass?
A: The equipment supports maximum 9 layers sequential stripping, including outer jacket, aluminum foil and metal braided shield layer.
Q: What start control methods are available for this coaxial cable stripping equipment?
A: It supports two operation ways: foot pedal triggering and manual button start for flexible production switching.
Q: What is the hourly processing output of the EW-0690 multi-layer wire stripping machine?
A: Standard production capacity is 300~500 pieces per hour, fluctuated by wire layers and stripping length requirements.
Q: Does this rotary stripper need factory air compressor for operation?
A: No air pressure required, the machine runs on pure electric servo drive to save workshop air source cost.
