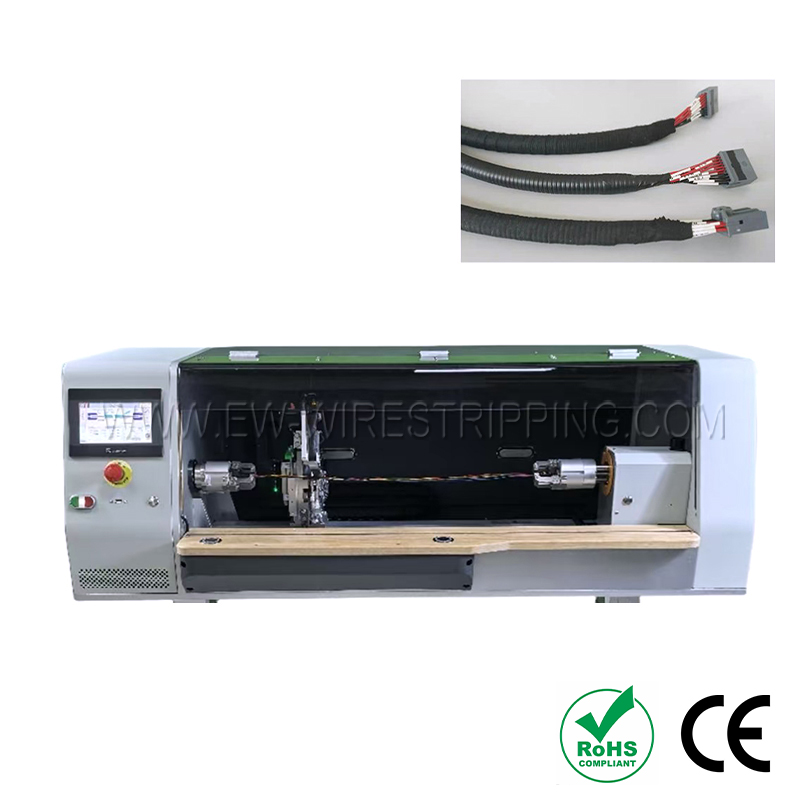

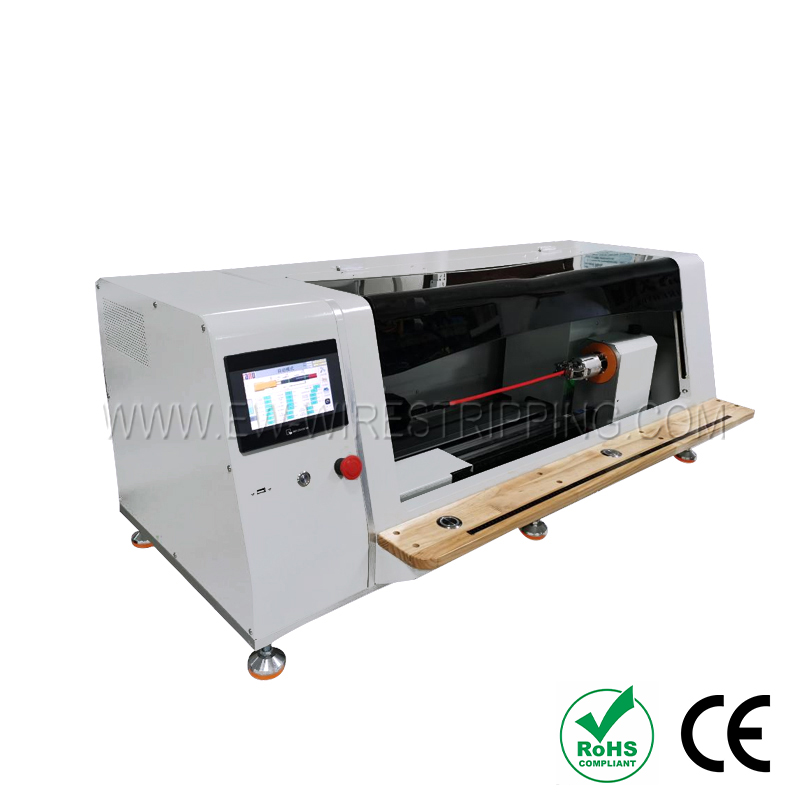

Fully Automatic Wire Tape Wrapping Machine
Tape Bundling
59
Model：Fully Automatic Wire Tape Wrapping Machine
Model:EW-1875
Wire diameter:≤10mm
Max. OD of Tape:≤180mm
Suit for tape:9/19mm width
ID of Tape:32-76mm
Taping length:<600mm
Wire diameter:≤10mm
Max. OD of Tape:≤180mm
Suit for tape:9/19mm width
ID of Tape:32-76mm
Taping length:<600mm
Technical Data
|
Model |
EW-1875 |
|
Applicable tape |
9/19mm width, PVC or fabric-based tape |
|
Wire diameter |
≤10mm |
|
Max. Outer Diameter of Tape |
≤180mm |
|
Inner Diameter of Tape |
32-76mm |
|
Taping length |
<600mm |
|
Taping speed |
≤800 RPM |
|
Tape material |
PVC, felt, cloth tape |
|
Dimension |
755*620*480mm |
|
Power |
110V/220V（AC）(±10%) |
|
Air supply |
0.4-0.6Mpa. |
|
Foot pedal |
N/A |
Feature

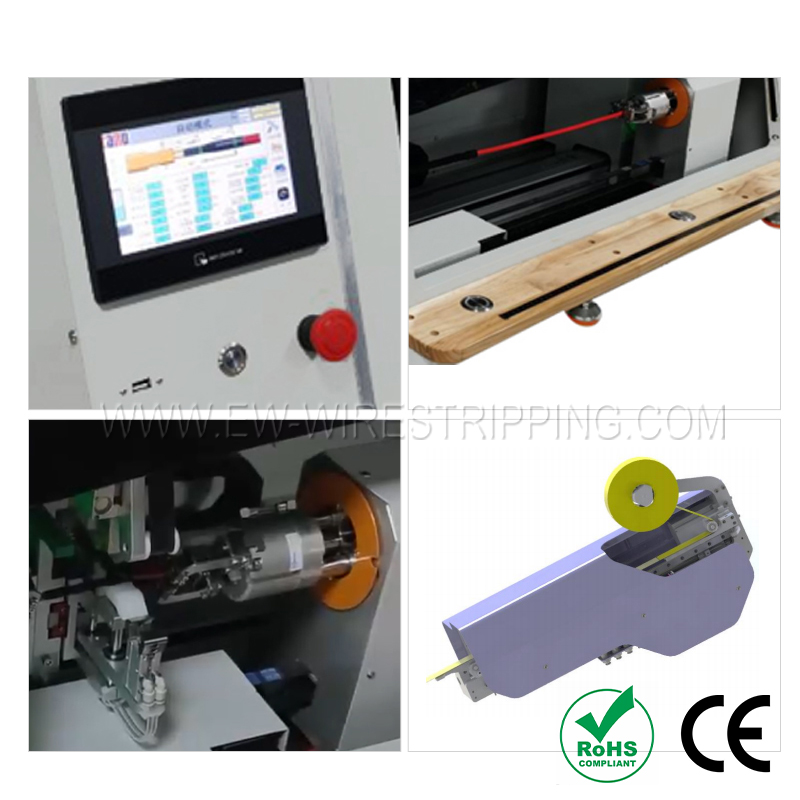

● Model EW-1875 is new automatic wire tape wrapping machine with automatic tape cutting wrapping function.

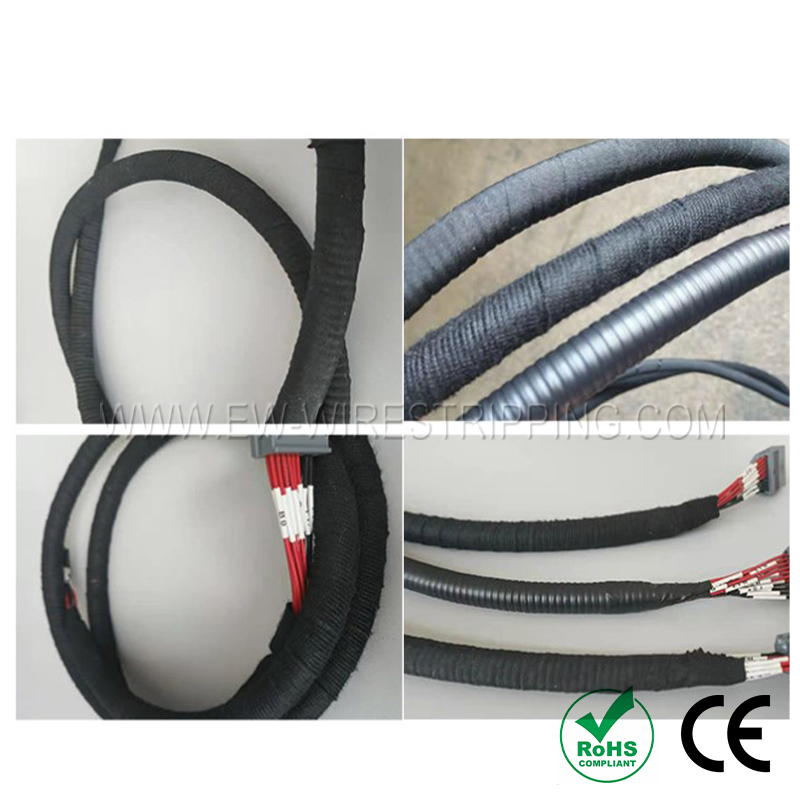

● It is suitable for 10mm OD wires and 9/19mm width PVC or fabric-based tape.
● The special design ensures that the tape can be wound up to 10mm on the left end and 30mm on the right end of the sheath.
● The wire should not be distorted during the wrapping process.
● The tape cutting effect is excellent, especially for the fabric-based adhesive tape.
● The fixture replacement is very convenient. Only needs to do is to remove and install four screws.
