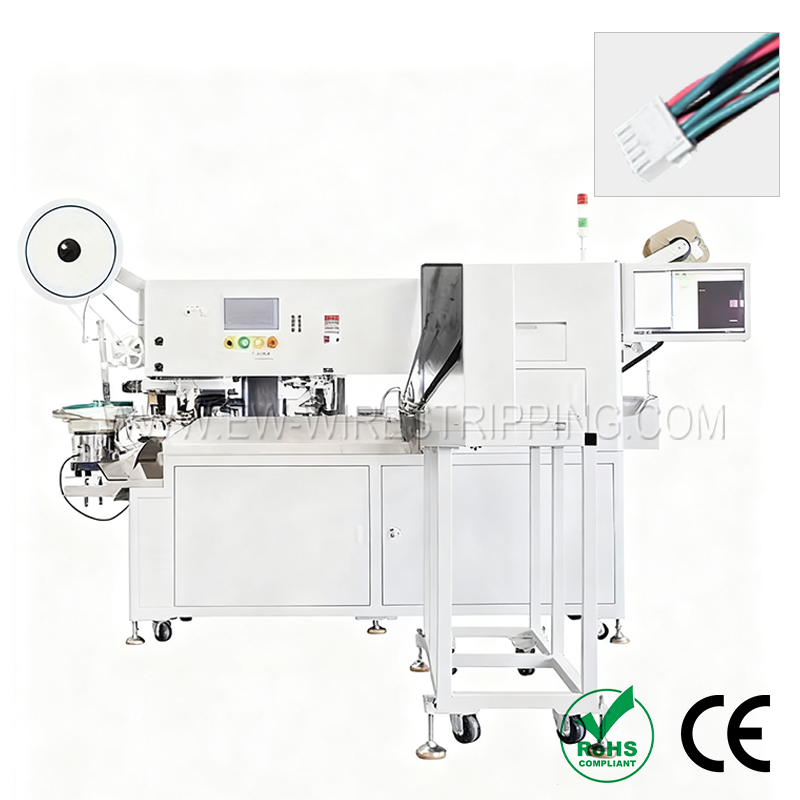

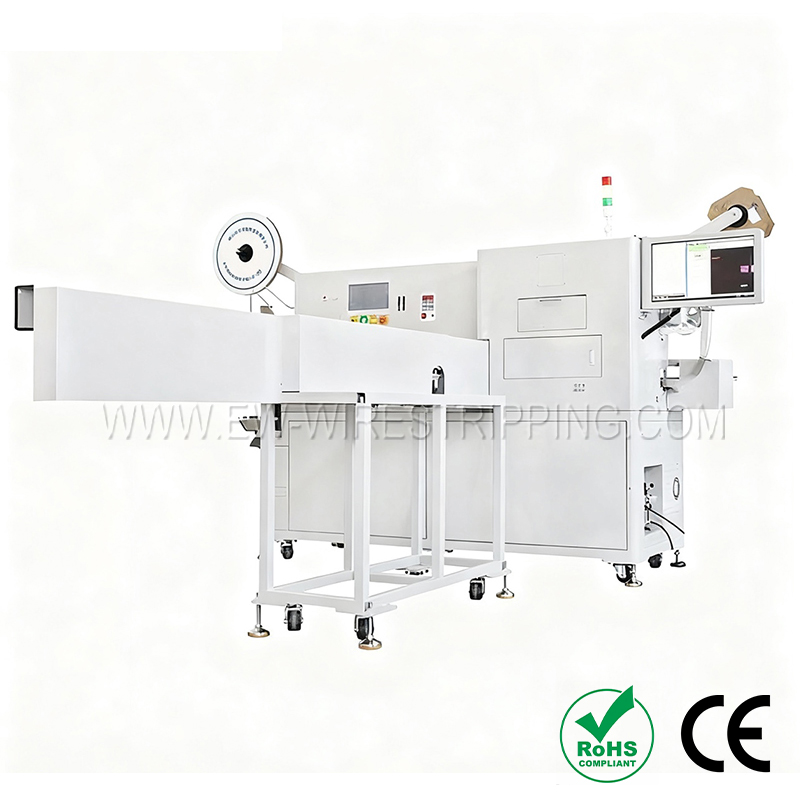

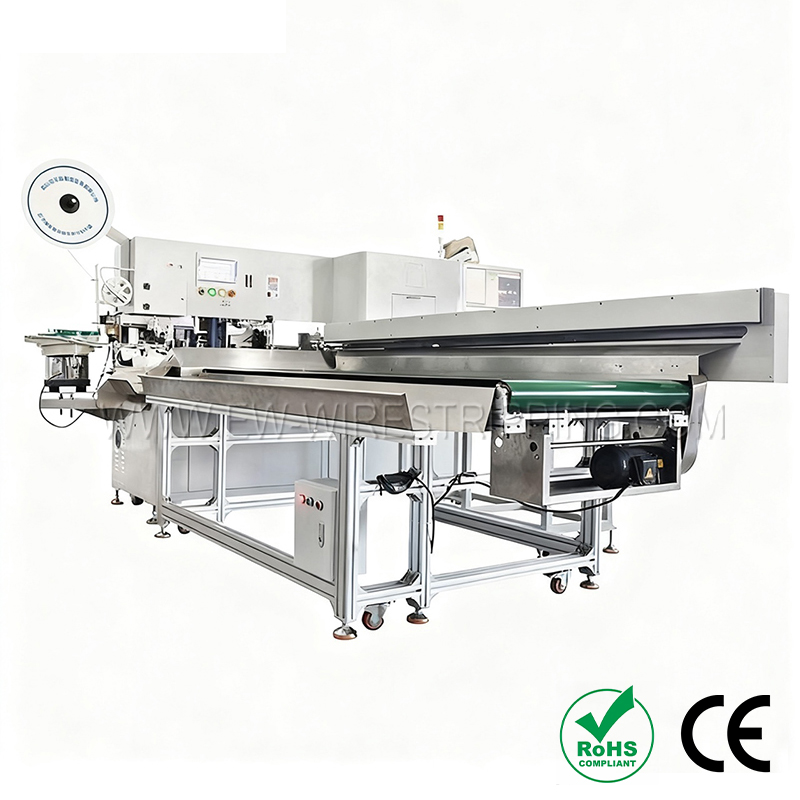

One End Housing Insert and Another End Crimp 2 Different Terminal Machine
Housing/Tube Insertion
89
Model：One End Housing Insert and Another End Crimp 2 Different Terminal Machine
Model: EW-9545
Voltage: 220V/50Hz; 110V/60Hz
Power: 3.6KW
Wire size: AWG16-AWG28
Max. efficiency: 1200PIN/H
Air pressure: 4 - 6kgf (0.4-0.6Mpa)
Voltage: 220V/50Hz; 110V/60Hz
Power: 3.6KW
Wire size: AWG16-AWG28
Max. efficiency: 1200PIN/H
Air pressure: 4 - 6kgf (0.4-0.6Mpa)
Technical Data
|
Model |
EW-9545 |
|
Voltage |
220V/50Hz; 110V/60Hz |
|
Power |
3.6KW |
|
Wire size |
AWG16-AWG28 |
|
Max. efficiency |
1200PIN/H |
|
Air pressure |
4 - 6kgf (0.4-0.6Mpa) |
|
Crimping capacity |
1.5KN |
|
Cutting length |
40-3000mm (customizable) |
|
Stripping length |
side A: 0.1-10mm, side B: 0.1-6mm |
|
Max. pin No |
single row 16 holes, max.3 rows |
|
Max. wire colors |
20 colors |
|
Connector size |
Min.5x6x3, Max. 40x25x25mm (customizable) |
|
Test functions |
wire lack/knotted, terminal lack, stripping abnormal, CFM, insertion pull force, connector lack, NG rate |
|
Optional devices |
cable prefeeder, transfer belt, CFM, CCD tester |
|
NG rate setting function |
alarm stop production: wire lack/knotted,terminal lack, connector lack, NG rate exceeds set value |
|
Alarm to pick out and continue production |
abnormal stripping, abnormal crimping force, abnormal connector insertion tension, NG rate does not exceed the set value |
|
Dimensions |
260x120x158cm |
|
Packing size |
271x95x186cm;326x63x134cm; 262x146x112cm |
Feature

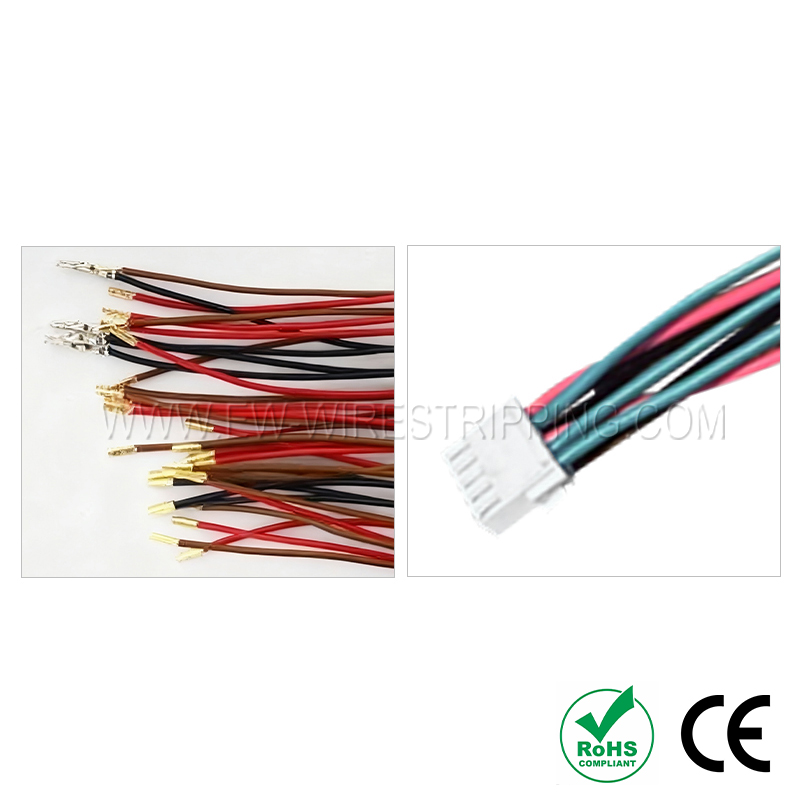

● Two types of wires can be processed at the same time.
● Side A: cutting, stripping, terminal crimping (two types of terminals at one end), inserting housing connector
● Side B: cutting, stripping, twisting and tinning at the other end.
