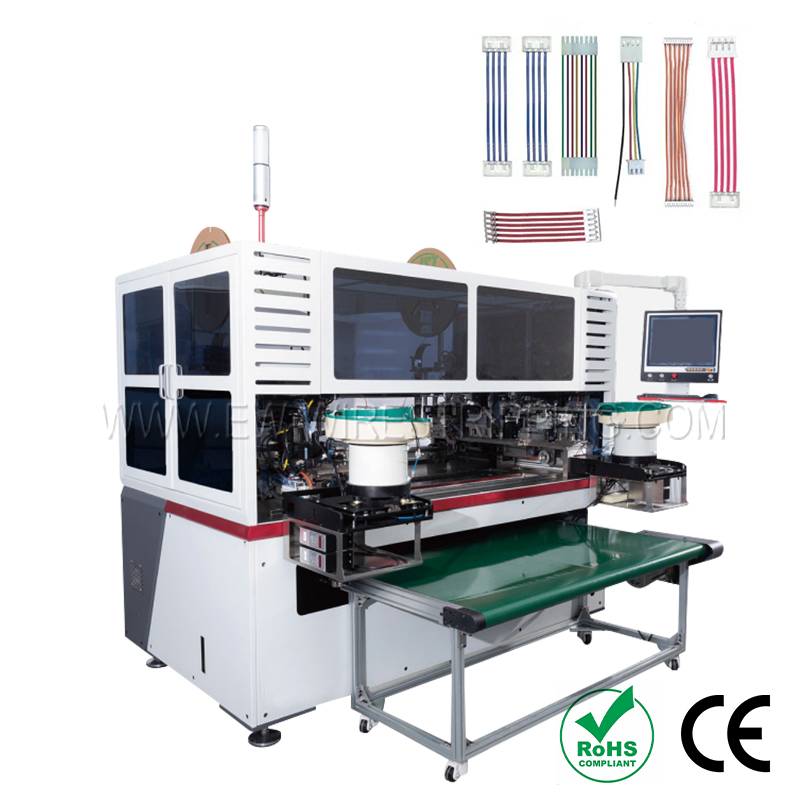

Fully Automatic Double-head Crimping And Housing Connector Assembly Machine

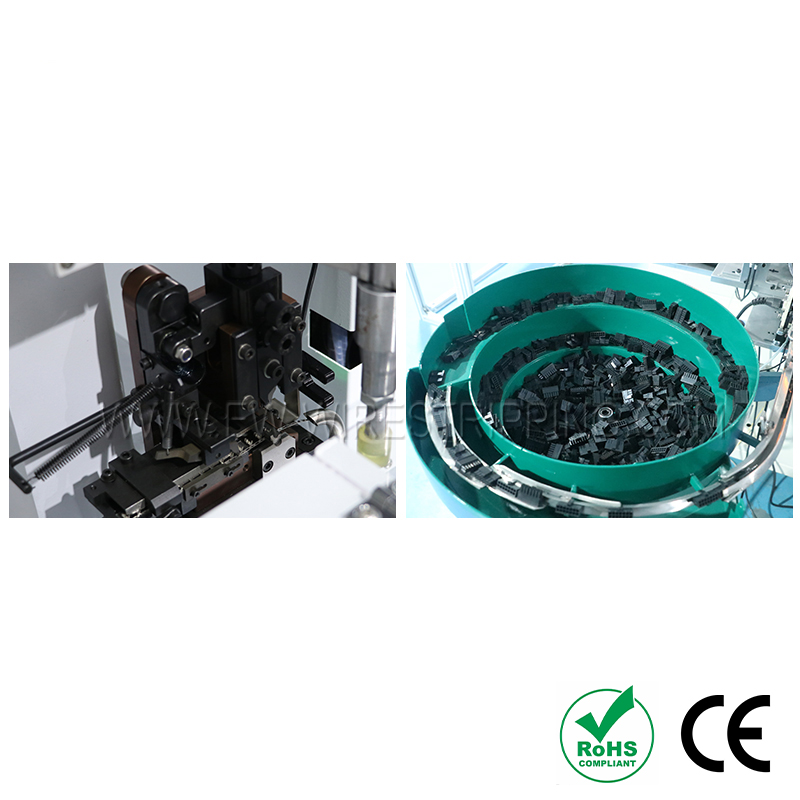

Housing/Tube Insertion
77
Model：Fully Automatic Double-head Crimping And Housing Connector Assembly Machine
Model: EW-9535
Cutting Length: 85-600mm
Wire Processing Range: AWG#30-AWG#18, suitable for various wire sizes and 8 colors
Terminal Pitch: 1.0-3.96mm
Stripping Length: A-end 1.0-7.0mm, B-end 1.0-8.5mm
Cutting Length: 85-600mm
Wire Processing Range: AWG#30-AWG#18, suitable for various wire sizes and 8 colors
Terminal Pitch: 1.0-3.96mm
Stripping Length: A-end 1.0-7.0mm, B-end 1.0-8.5mm
Technical Data
|
Model |
EW-9535 |
|
Cutting Length |
85-600mm |
|
Wire Processing Range |
AWG#30-AWG#18, suitable for various wire sizes and 8 colors |
|
Terminal Pitch |
1.0-3.96mm |
|
Production Capacity |
L=100mm, 1600-1700 wires/hour (only for reference) |
|
Stripping Length |
A-end 1.0-7.0mm, B-end 1.0-8.5mm |
|
Cutting Accuracy |
±(0.2%*L+1)mm |
|
Air Pressure |
0.5-0.7MPa (5-7kg/m³) |
|
Power Source |
50/60Hz 220V single-phase |
|
Dimensions |
2300*1200*1370mm, 1400*800*1300mm(feeding machine） |
|
Weight |
750kg±15kg, （crimping machine） |
|
Main Functions |
Wire cutting, stripping, terminal insertion, and plastic casing insertion on the A and B ends |
|
Pay-off System |
Applicable to shaft-mounted wire |
|
Detection Device |
CCD visual inspection: 1 set each for A and B ends, |
|
Terminal Pressure Detection System |
Built-in dual-channel pressure detection |
|
Defective Product Handling |
Defective product sorting area |
|
Compatible Dies |
Dedicated OTP mold |
|

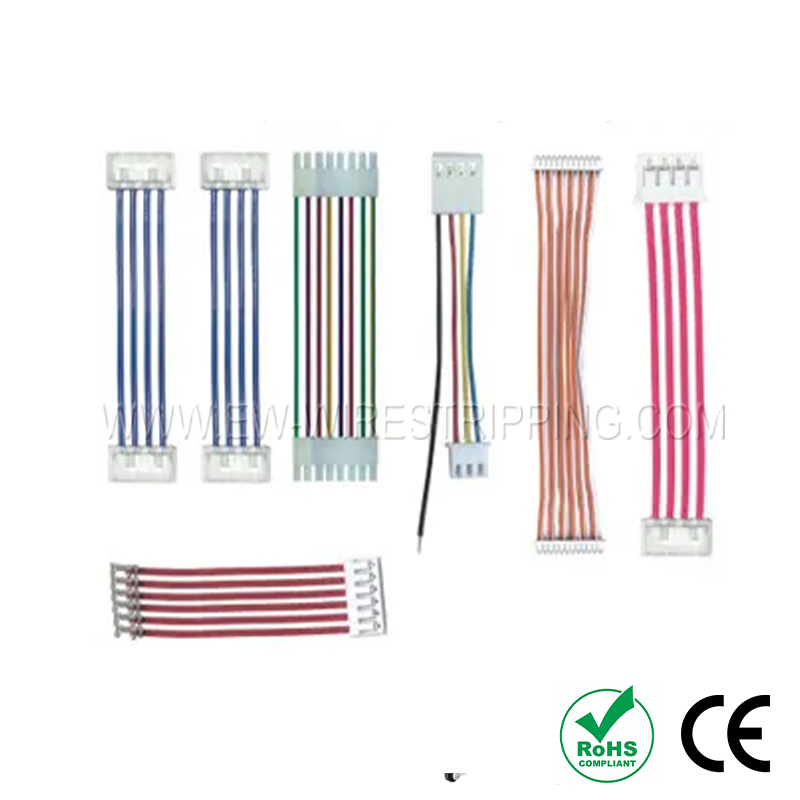

Applicable Plastic Housings |
Suitable for plastic shells with multiple pins and different pin spacing, and can realize double-layer or triple-layer plastic shells |
|
Terminal Crimping Capacity |
750W Ultra-Quiet Servo Terminal Machine |
|
Pedal Control |
N/A |
Feature
● This is a fully automatic cable double-end housing shell inserting machine. It is able to process of double-end cutting, stripping, terminal crimping and housing connector inserting.
● Function: cable double-end cutting, stripping, terminal crimping and housing connector inserting.
● Independent double-knife seat, convenient and quick adjustment of the stripping depth.
● The insertion adopts 3-axis split operation, which effectively improves the insertion efficiency.
● Guided insertion method, effectively improving the insertion accuracy and protecting the functional area of the terminal.
● Flip-type defective product isolation method, 100% isolation of defective production.
