Model |
EW-1130 |

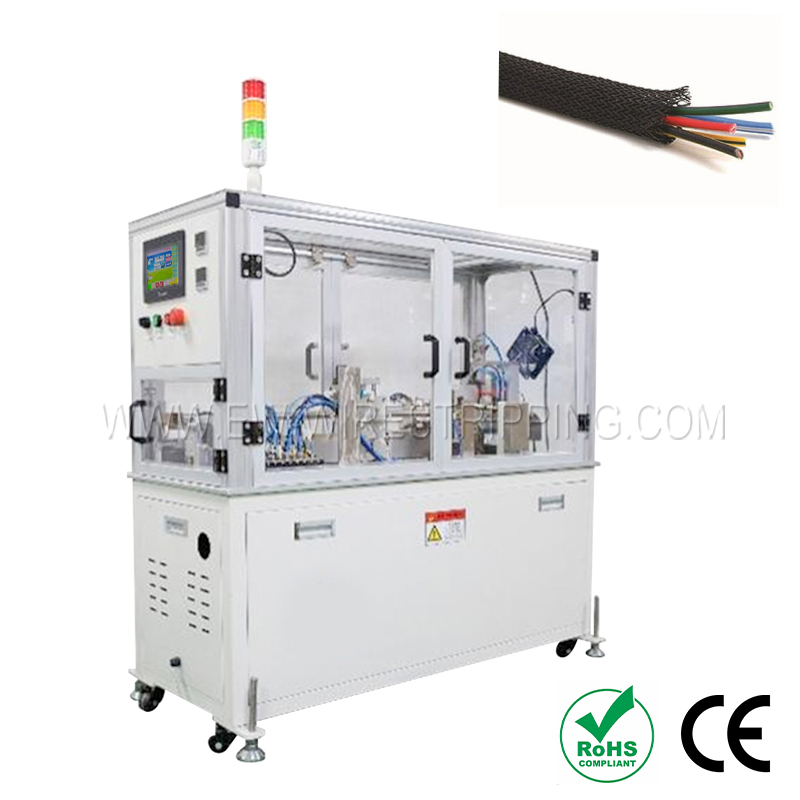

| Machine Category | Automatic Braided Cable Sleeve Cutting and Threading Machine |

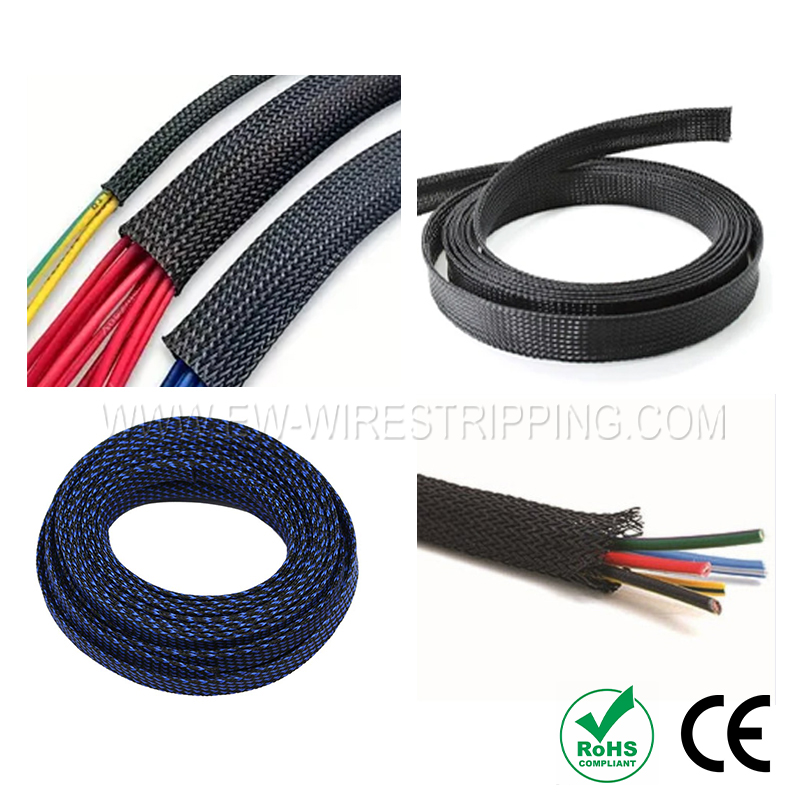

| Applicable Sleeve Materials | Nylon Braided Sleeves, Expandable Mesh, Shock-Absorbing Mesh (Heat-Sealable) |
| Guide Pipe Diameter Range | 6.0 – 25.0 mm (Custom diameters available upon request) |
| Cutting Accuracy |
±3.0 mm |
|
Cutting length |
100 – 3,500 mm (Customizable for extended lengths) |
| Production Capacity | ≥ 600 pieces / hour (Varies with manual operator speed) |
|
Power supply |
Single-Phase AC 220 V (50 Hz) |
| Cutting Technology | Thermal Hot-Melt Edge-Sealing Cut |
| Control System | Digital PLC Control System |
|
Energy consumption |
400W/hour |
| Operating Environment | -5°C to +40°C / (40–90)% RH |
|
Air supply |
0.4～0.6MPA |
|
Weight |
About 240KG |
|
Dimensions |
500W*1350L*2400H(mm) |
|
Note: Materials beyond the scope can be intelligently customized |
|
● Thermal Hot-Melt Cutting & Anti-Fraying Seal:Uses integrated heat-cutting technology to instantly melt and fuse nylon mesh edges upon cutting, completely preventing loose strands and fraying.
● Photoelectric Sensing & High Precision: Photoelectric sensing system delivers consistent cut-length accuracy of ±3 mm across the entire 100 mm to 3,500 mm processing range.
● PLC Digital Length Setting:Operators program exact target lengths on the digital PLC interface, enabling fast specification changeovers without mechanical measurement gauges.
● Operator-Assisted Flexible Threading: Combines automated hot-melt cutting with guided manual sleeve insertion, accommodating diverse wire bundle shapes and 6–25 mm guide pipe diameters without requiring costly dedicated tooling per cable size.
● High Output Efficiency (600+ Pcs/Hour):Boosts production capacity to over 600 pieces per hour while significantly reducing operator wrist fatigue during high-volume harness jacketing.
● Automotive Wiring Harnesses:Rapid hot-melt sleeve cutting and jacketing for engine bay wiring, high-voltage battery lines, and chassis harnesses.
● Industrial Machinery Cabling:Protective nylon mesh tube threading for multi-core control cables and robotic arm flex cabling.
● HVAC & Home Appliance Wiring: Clean, non-fraying sleeve processing for internal power distribution harnesses and thermal protection sleeves.
● Rail & Aerospace Harnessing:High-precision sleeve insertion for flame-retardant braided cabling and heavy-duty shock-absorbing mesh pipes.
Q1: How does the EW-1130 prevent nylon braided sleeve ends from fraying after cutting?
A: The EW-1130 incorporates a thermal hot-melt cutting mechanism. As the cutting element slices through heat-sealable nylon or woven mesh sleeving, the applied heat instantly melts and fuses the individual fiber strands together, producing a neat, sealed edge that will not unravel during harness assembly or installation.
Q2: What guide pipe diameters and cutting lengths can the machine handle?
A: The standard EW-1130 handles guide pipe outer diameters from 6 mm to 25 mm and cutting lengths from 100 mm up to 3,500 mm with ±3 mm accuracy. Custom guide pipe sizes and extended cutting length options can be intelligent-customized upon request.
Q3: Is the sleeve threading process fully automatic or operator-assisted?
A: The machine uses an operator-assisted threading system using interchangeable guide pipes. After the PLC system cuts and thermally seals the sleeve to length, the operator feeds the wire bundle through the guide pipe. This semi-automatic design provides exceptional flexibility for handling complex or variable wire bundle profiles without requiring dedicated rigid threading fixtures.
