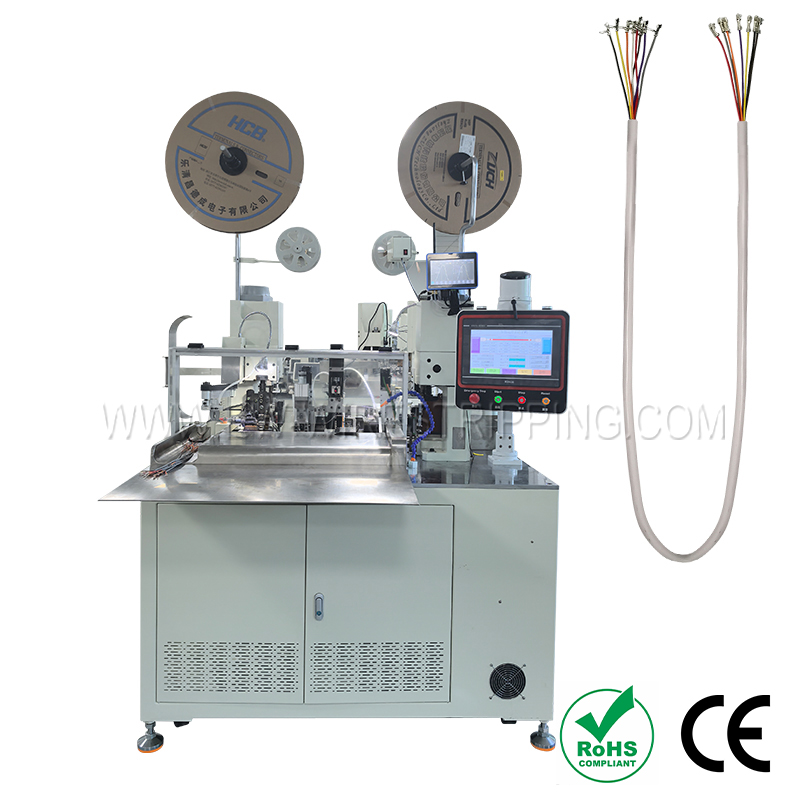

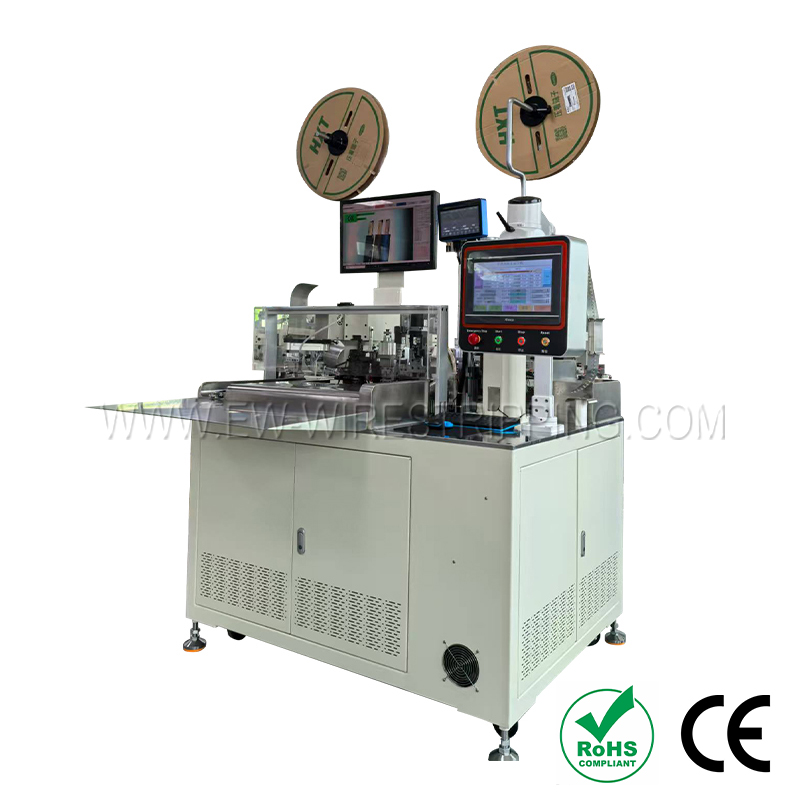

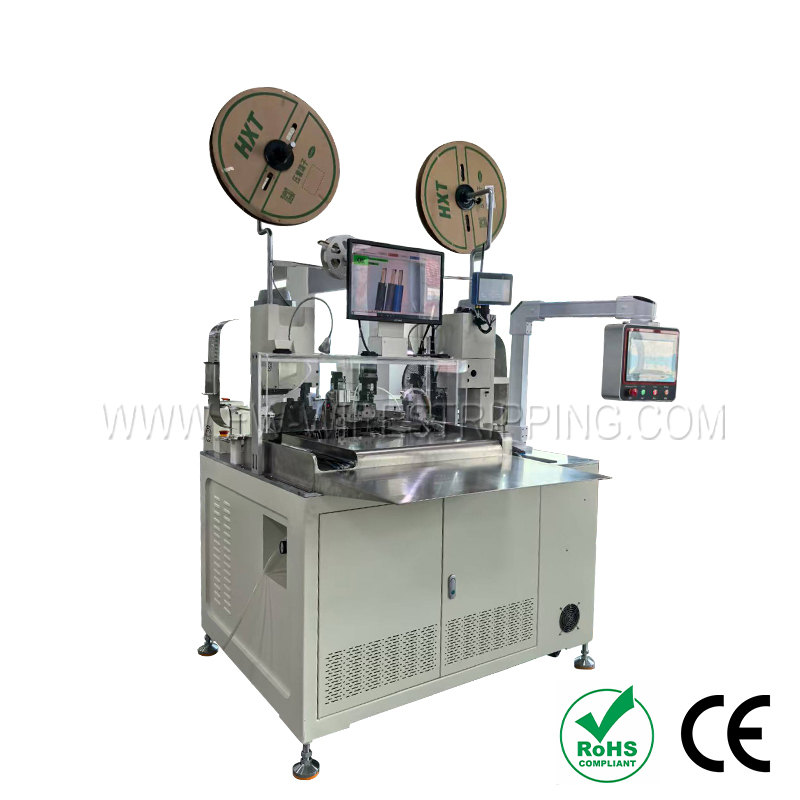

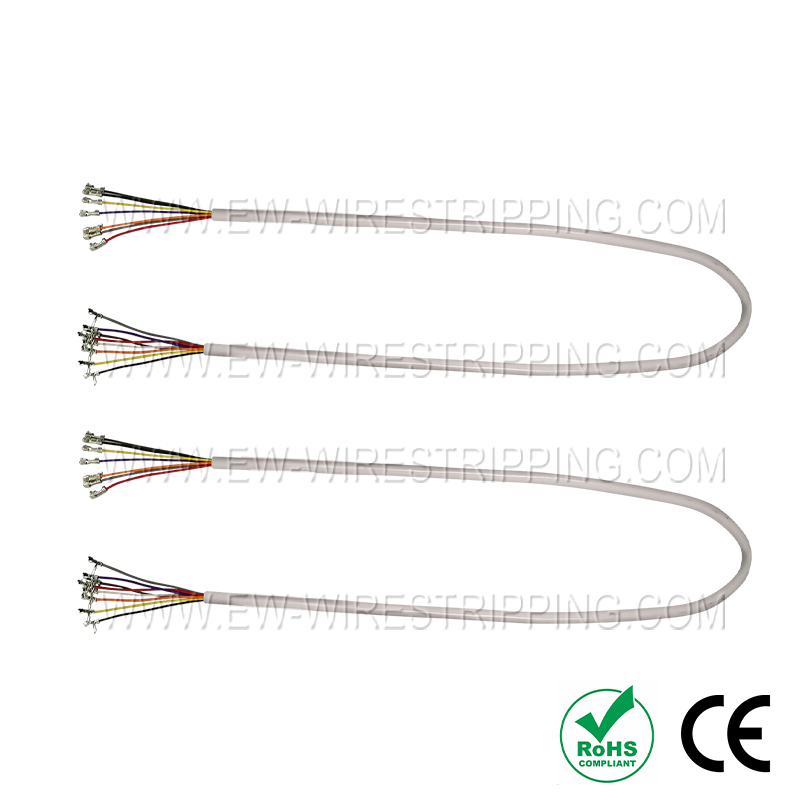

Fully Automatic Double-head Multi-core Wire Terminal Crimping Machine
Cut Strip Terminate& Solder
95
Model：Fully Automatic Double-head Multi-core Wire Terminal Crimping Machine
Model：EW-9530
Wire Processing: OD3-8mm, inner core AWG 28-20
Processing Length: 180-99999mm
Stripping Length: Jacket 30-150mm, inner core 2-10mm
Compressed Air: 0.5 MPa (5 kgf/cm²) clean dry air
Wire Processing: OD3-8mm, inner core AWG 28-20
Processing Length: 180-99999mm
Stripping Length: Jacket 30-150mm, inner core 2-10mm
Compressed Air: 0.5 MPa (5 kgf/cm²) clean dry air
Technical Data
|
Model |
EW-9530 |
|
Wire Processing |
OD 3-8mm, inner core AWG 28-20 |
|
Processing Capacity |
750 wires/hour (depending on cable specifications and length) |
|
Cutting Accuracy |
Wire length under 150mm, tolerance 0.5 + (wire length x 0.002) |
|
Processing Length |
180-99999mm |
|
Stripping Length |
Jacket 30-150mm, inner core 2-10mm |
|
Detection Device |
Kink detection (with feeding machine), and air pressure detection |
|
Power Supply |
Single-phase AC200V-250V 50/60Hz 10A |
|
Compressed Air |
0.5 MPa (5 kgf/cm²) clean dry air |
|
Machine Dimensions |
1300*1020*1520mm (excluding terminal rods and other accessories) |
|
Machine Weight |
750kg |
|
Foot Pedal |
N/A |
Feature
● The machine's translation, wire cutting, and stripping actions are driven by a servo motor driving a lead screw or gear. Compared to traditional stepper motor-driven synchronous belt drives, this system achieves higher precision and stability. Furthermore, using stepper motors in low-speed, high-torque applications maximizes performance.

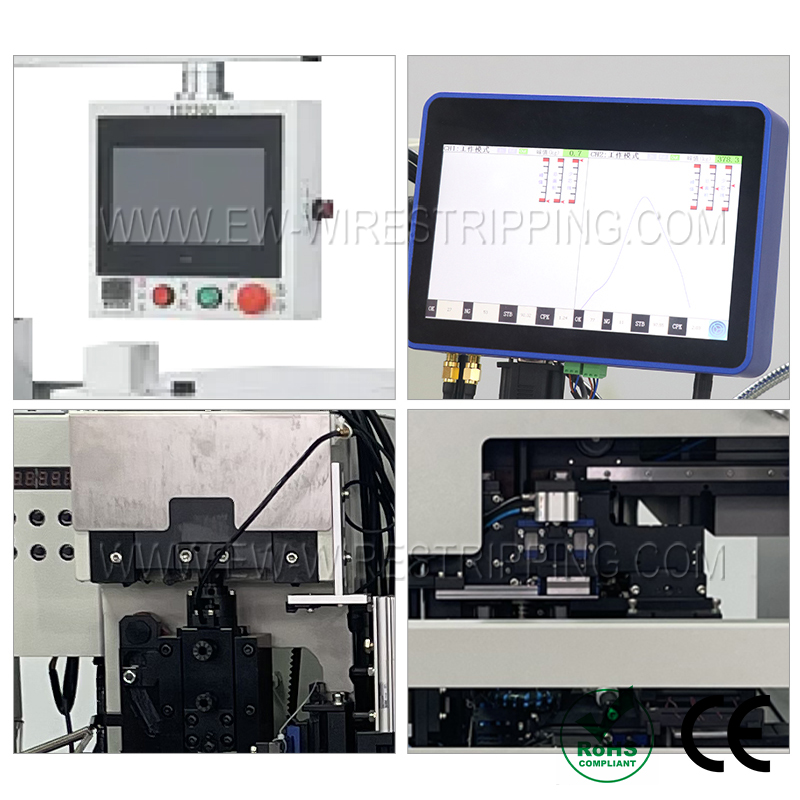

● The host computer is controlled by a motion control card, with parameter settings on a Chinese and English touchscreen, ensuring quick adjustments and easy operation.
● Suitable for both horizontal and direct-feed OTP terminal dies.
● Energy-saving, space-saving, and environmentally friendly equipment.
