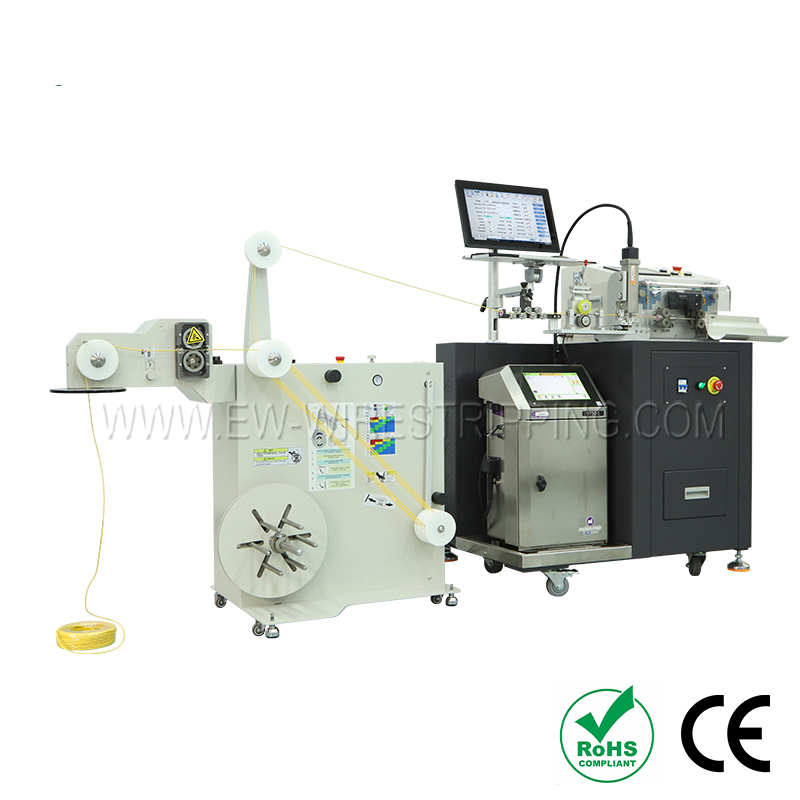

Wire Cutting Stripping Marking Machine with Ink Printing and Cabling Smart Computer Control Machine
Printing Marking
117
Model：Wire Cutting Stripping Marking Machine with Ink Printing and Cabling Smart Computer Control Machine
Model:EW-3385

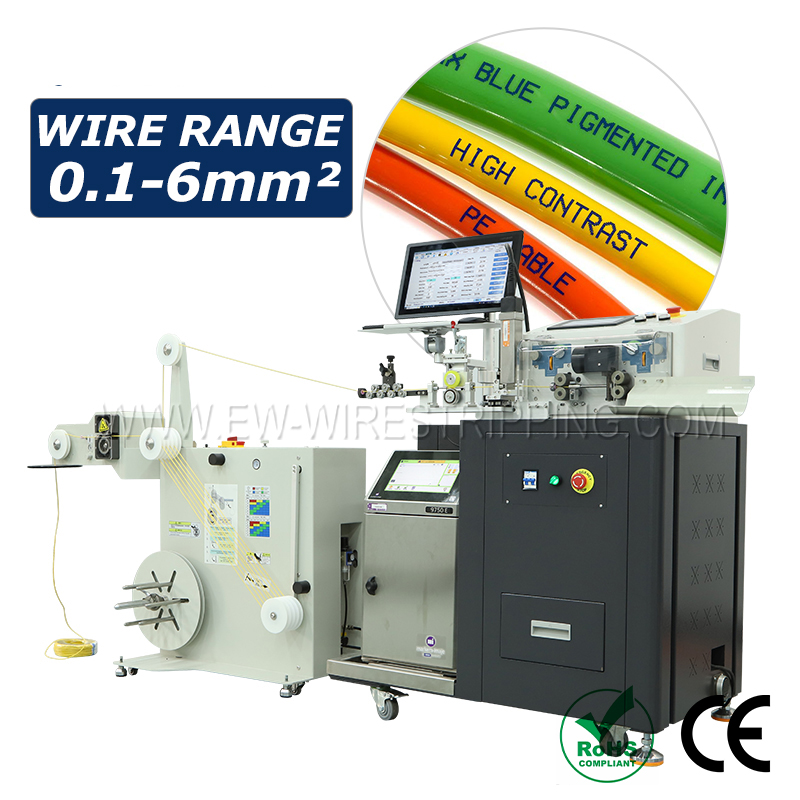

Wire range:0.1-6mm²
Cutting length:0.1mm-99999.9mm
Stripping length:
Stripping head:0.1-250mm Stripping tail: 0.1-70mm
Wire range:0.1-6mm²
Cutting length:0.1mm-99999.9mm
Stripping length:
Stripping head:0.1-250mm Stripping tail: 0.1-70mm
Technical Data
|
Model |
EW-3385 |
|
Function |
Wire cutting, double-end stripping, middle stripping |
|
Wire range |
0.1-6mm² |
|
Cutting length |
0.1mm-99999.9mm |
|
Stripping length |
Stripping head:0.1-250mm Stripping tail: 0.1-70mm |
|
Stripping accuracy |
Silent hybrid stepper motor 0.01mm |
|
Intermediate strip |
16 (can be customized) |
|
Capacity |
3000-8000 / h |
|
Blade material |
Imported tungsten steel / high speed steel |
|
Power |
AC110V/220V 50/60HZ |
|
Dimension |
1000mm * 620mm * 1380mm |
|
Weight |
150kg |
|
Remark function |
Automatic entry / exit, timing start, jog adjustment |
|
Remarks |
Special application can be customized by sending samples |
Feature
● Provide general and customized versions of Excel to realize batch and fast import of tasks.
● Production tasks can be traced back, providing daily, monthly, and annual reports.
● Hybrid stepper motor, integrated control board, mute subdivision driver, offers precise cutting and stripping, low noise, no noise pollution.
● Processing capabilities: full strip, partial strip and multi-step stripping, max 13 steps.
● Automatic correction of cutting length saves much time and ensure the cutting accuracy.
● STEP function show every single step clearly, it's very helpful for initial operation,training operator and troubleshooting.
● Detection of lack wire, when wire is used up, the machine automatically stops working and sounds alarm to report it.

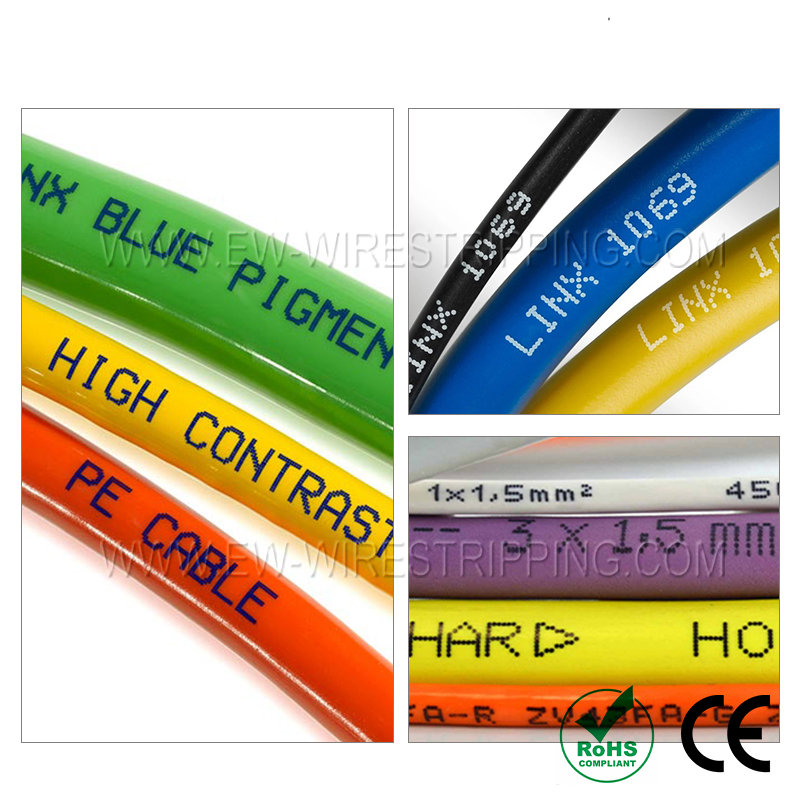

● The marking position can be freely set in the program.
Application Range
