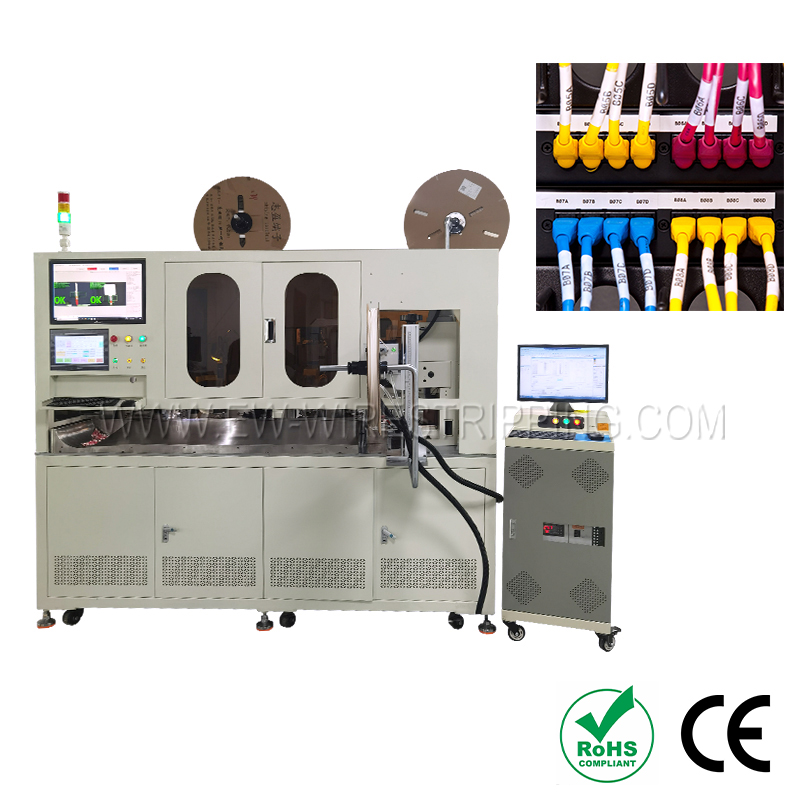

Fully Automatic Dual-Head Terminal Crimping and Double-Piercing Numbering Tube Machine
Housing/Tube Insertion
95
Model：Fully Automatic Dual-Head Terminal Crimping and Double-Piercing Numbering Tube Machine
Model: EW-9540
Cable Range: AWG 22~14
Capacity: 700-900 Pcs/Hour
Cutting Length:66~99999mm
Stripping Length:Front : 0.5–8.0 mm
Cable Range: AWG 22~14
Capacity: 700-900 Pcs/Hour
Cutting Length:66~99999mm
Stripping Length:Front : 0.5–8.0 mm
Technical Data
|
Model |
EW-9540 |
|
Cable Range |
AWG 22~14 |
|
Capacity |
700-900 Pcs/Hour |
|
Cutting precision |
Wire Lengths < 100mm: Tolerance 0.2 + (Length × 0.002) Wire Lengths > 100mm: Tolerance 0.5 + (Length × 0.002) |
|
Cutting Length |
66~99999mm |
|
Stripping Length |
Front : 0.5–8.0 mm End: 0.1–10.0 mm |
|
Detection device |
1. Low air pressure 2. Wire missing 3. Crimping Abnormality 4.Abnormal wire feeding |
|
Power |
Single-phase AC 200V to 242V, 50/60Hz, 10A |
|
Compressed Air |
0.5 MPa(5kgf / cm2) |
|
Size |
L80*W180*H180 CM |
|
Weight |
800KG |
Feature
● The equipment primarily utilizes branded components to perform wire cutting, stripping, and terminal crimping with precise operation and stable performance.
● The main unit features a built-in four-wheel synchronous wire feeder that maintains constant wire tension, along with an automatic terminal strip cutting device.
● Controlled by a motion control card, the main unit offers parameter settings via a bilingual touchscreen for quick adjustments and user-friendly operation.
● Compatible with horizontal feed and direct feed OTP terminal molds.
● Energy-efficient, space-saving, and environmentally friendly equipment.
Application Range
