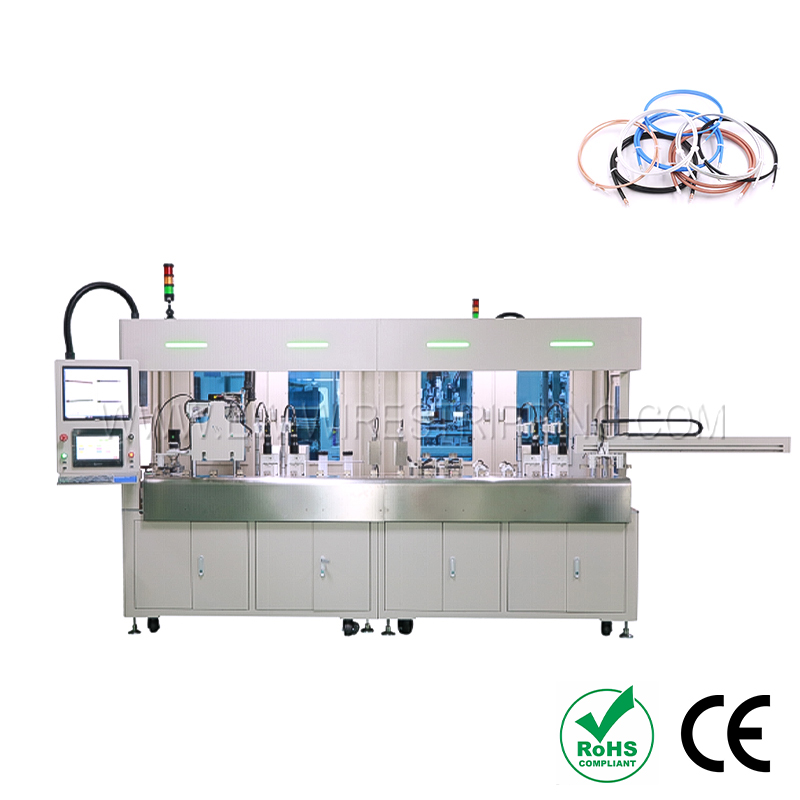

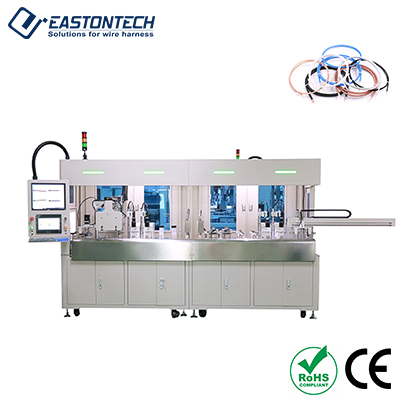

Coaxial cable double-end stripping tinning machine(1.78-3.5mm OD)
Cut Strip Terminate& Solder
39
Model：Coaxial cable double-end stripping tinning machine(1.78-3.5mm OD)
Model:EW-9515
Wire outer diameter:1.78-3.5mm
Max. stripping layer:6 Layers
Stripping length:0-25mm
Power:2KW
Productivity:600-850pcs/h
Wire outer diameter:1.78-3.5mm
Max. stripping layer:6 Layers
Stripping length:0-25mm
Power:2KW
Productivity:600-850pcs/h
Technical Data
|
EW-9515 |
|
|
Wire outer diameter |
1.78-3.5mm |
|
Cut depth increments |
0.01mm |
|
Cutting length |
Single side:120-1000m Double side:400-2000mm |
|
Max. stripping layer |
6 Layers |
|
Stripping length |
0-25mm |
|
Stripping accuracy |
±0.2mm |
|
Cutting accuracy |
±0.2%*L |
|
Power supply |
AC220V 50/60HZ |
|
Power |
2KW |
|
Productivity |
600-850pcs/h |
|
Dimension |
300*85*200cm |
|
Weight |
1T |
|
Pedal |
N/A |
|
Air pressure |
0.5-0.7Mpa |
Feature
● Model EW-9515 is a rare type of fully automatic coaxial cable machine in the market that features strip and tin-impregnation functions.
● It is suitable for 1.78-3.5mm OD wires.
● The stripping length is 0-25mm and max.layer is 6 layers.
● Two workstations operate simultaneously for tinning to enhance work efficiency.
● The fully automatic production line not only saves labor costs but also enhances production efficiency.

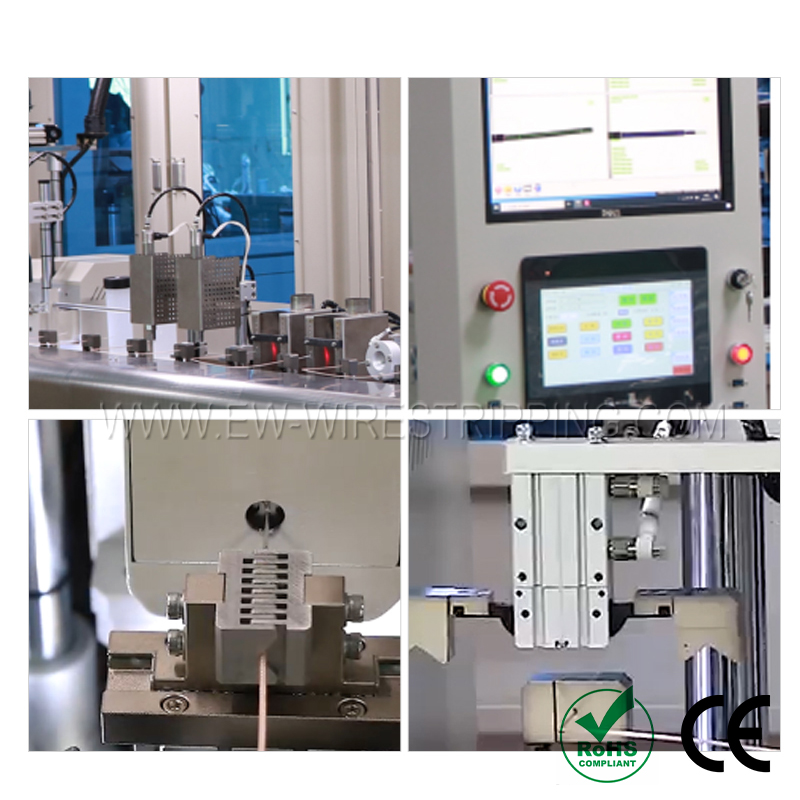

● Equipping with CCD improves the qualification rate of the finished products.

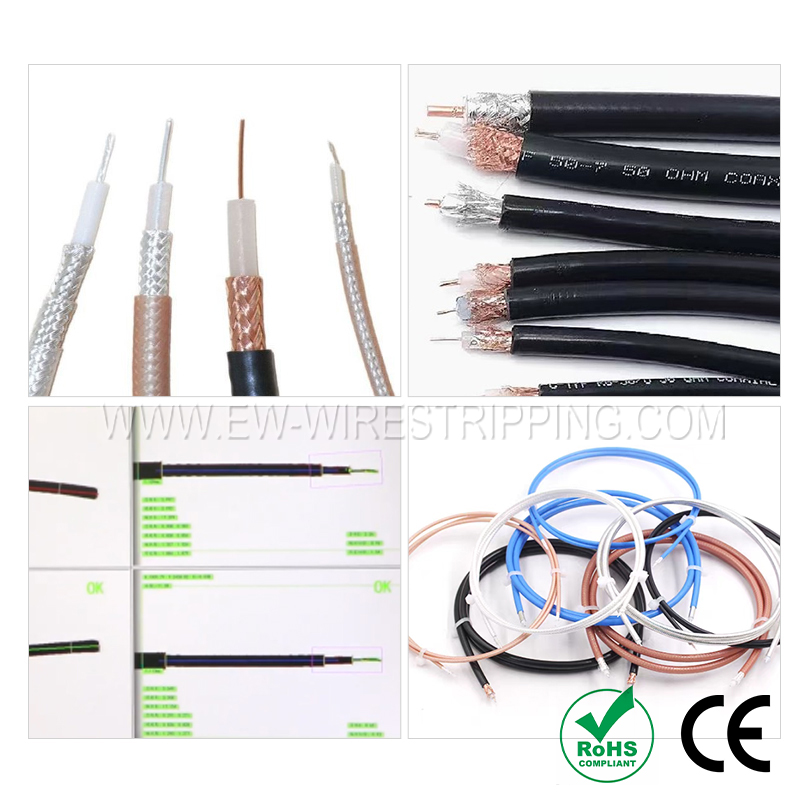

Application Range
