Fully Automatic Multi-harness Pressing Machine
Cut Strip Terminate& Solder
52
Model：Fully Automatic Multi-harness Pressing Machine
Model:EW-1525
Applicable wire range:AWG#28～AWG#18
Cutting length:>45mm
Stripping length:0.1-18mm
Crimping force:2.0/3.0Ton
Applicable wire range:AWG#28～AWG#18
Cutting length:>45mm
Stripping length:0.1-18mm
Crimping force:2.0/3.0Ton
Technical Data
| Model | EW-1525 |
| Applicable wire range | AWG#28～AWG#18 |
| Cutting length | >45mm |
| Stripping length | 0.1-18mm |
| Casing length | ≤100mm |
| Copper tape width | 1-8mm |
| Copper tape thickness | 0.2-0.5mm |
| Equipment weight | About 2000Kg |
| Dimension | 3650*3270*2200mm |
| Operating voltage | AC 220V~ 50Hz/15A |
| Working air pressure | 0.5-0.7Mpa |
| Motor power | 3000W |
Feature

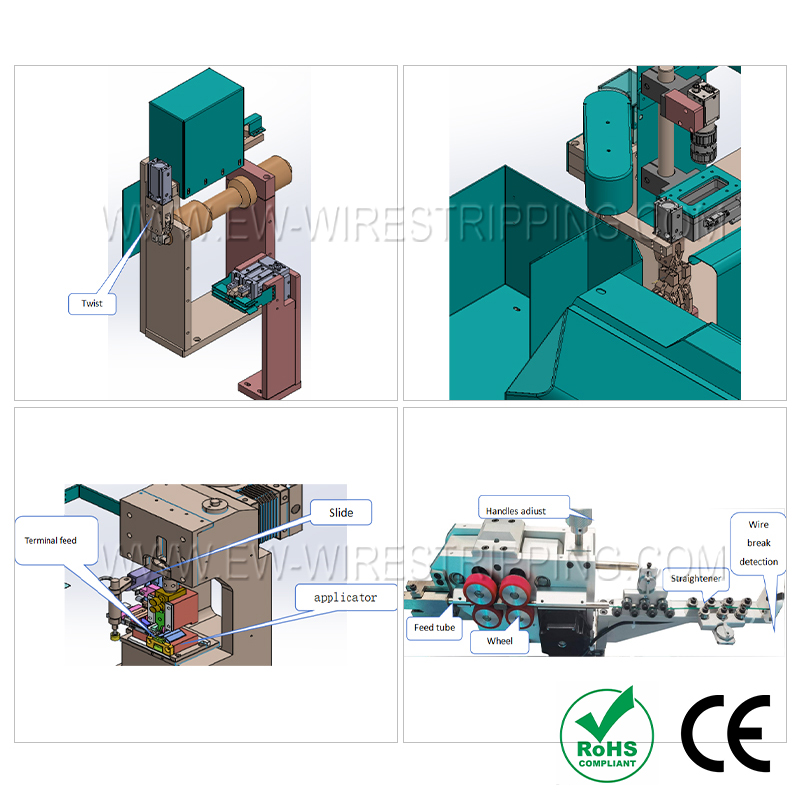

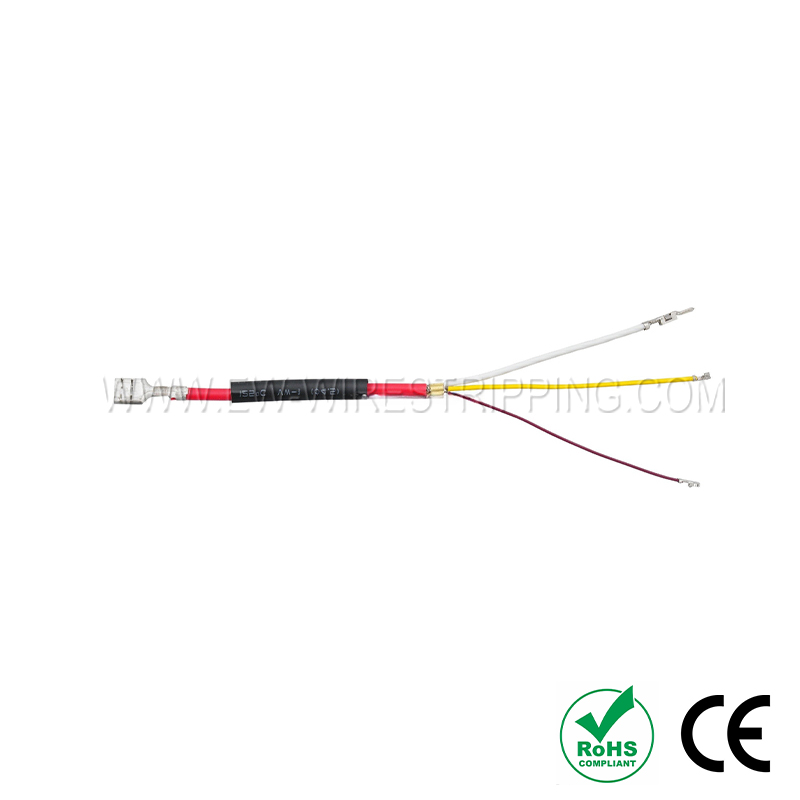

● Process flow: Automatic wire feeding, stripping and crimping - two wires together - slight twisting - connecting with the main line through heat shrink tubing - positioning and preheating the heat shrink tubing - terminal the end of the main line - finished product removal; complete a product.
● This machine uses a single-chip programmable control system. All machine parameters are digitally set. The modular design of the hardware makes changing material numbers and equipment troubleshooting more accurate and quick.
