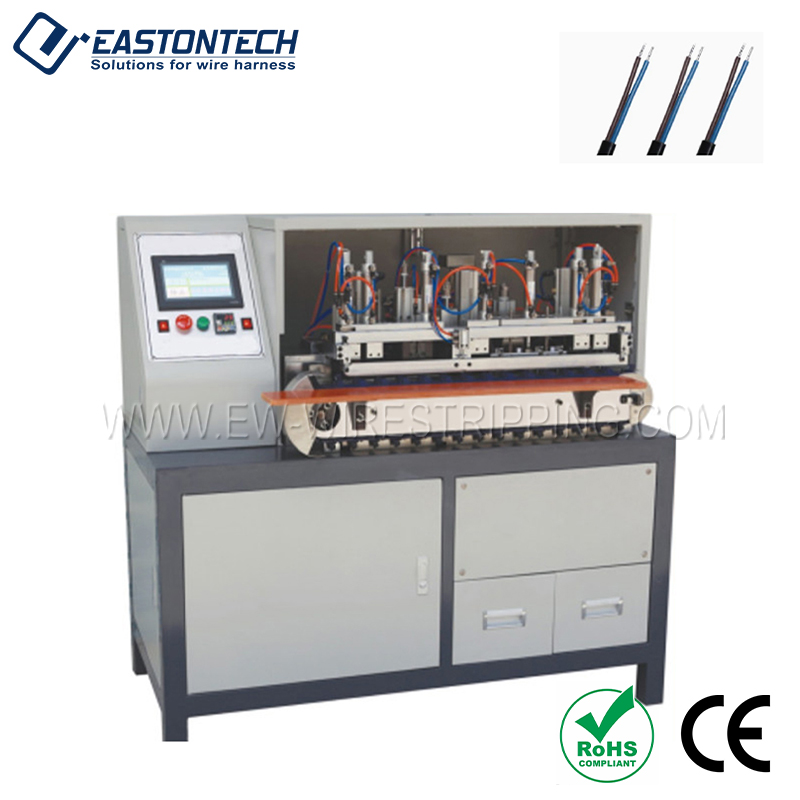

Sheathed cable stripping Twisting & Tinning machine
Plug Production
18
Model：Sheathed cable stripping Twisting & Tinning machine
Model EW-7075
Wire stripping size 6mm-12mm
Max size of slitting 20mm-60mm
Soldering size 3mm-12mm
Air supply pressure 0.5-0.8MPa
Wire stripping size 6mm-12mm
Max size of slitting 20mm-60mm
Soldering size 3mm-12mm
Air supply pressure 0.5-0.8MPa
Technical Data
|
Model |
EW-7075 |
|
Wire stripping size |
6mm-12mm |
|
Max size of slitting |
20mm-60mm |
|
Soldering size |
3mm-12mm |
|
Air supply pressure |
0.5-0.8MPa |
|
Production |
2300-2500PCS/Hour |
|
Voltage |
AC220V/50Hz |
|
Pedal control |
N/A |
|
Machine dimension |
1150mm*770mm*1130mm |
|
Machine weight |
258KG |
Feature
Five functions of wire separation, stripping, twisting, soldering and cutting in one and completed once for all, Adopted RKC digital temperature controller.

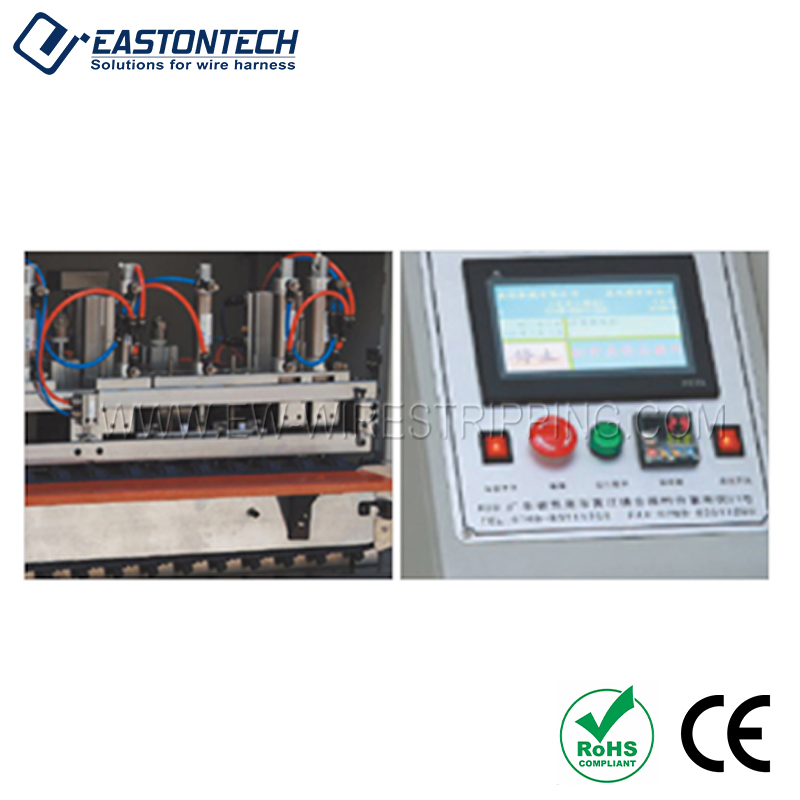

4 working positions are saved compared with original working mode, featuring labor saving, stable quality, safe and easy for operation and high efficiency. SIEMENS PLC controller; SMC air cylinder are available to be customized if special request.

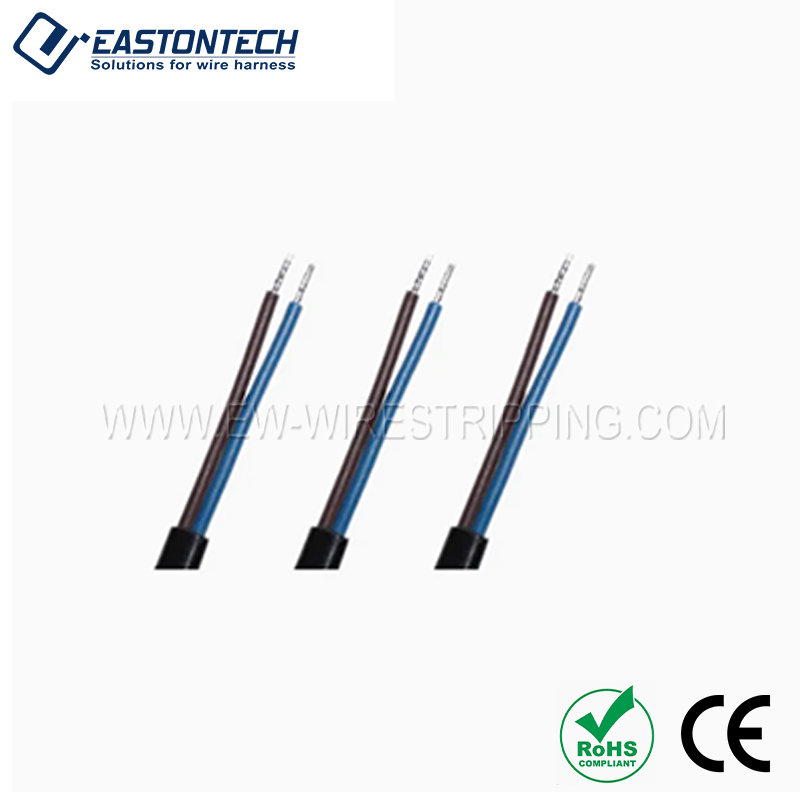

Applicable cable:
UL2468,double-branch parallel cable,20-28AWG, power chargers, two-core flat cable. Can be customized!
