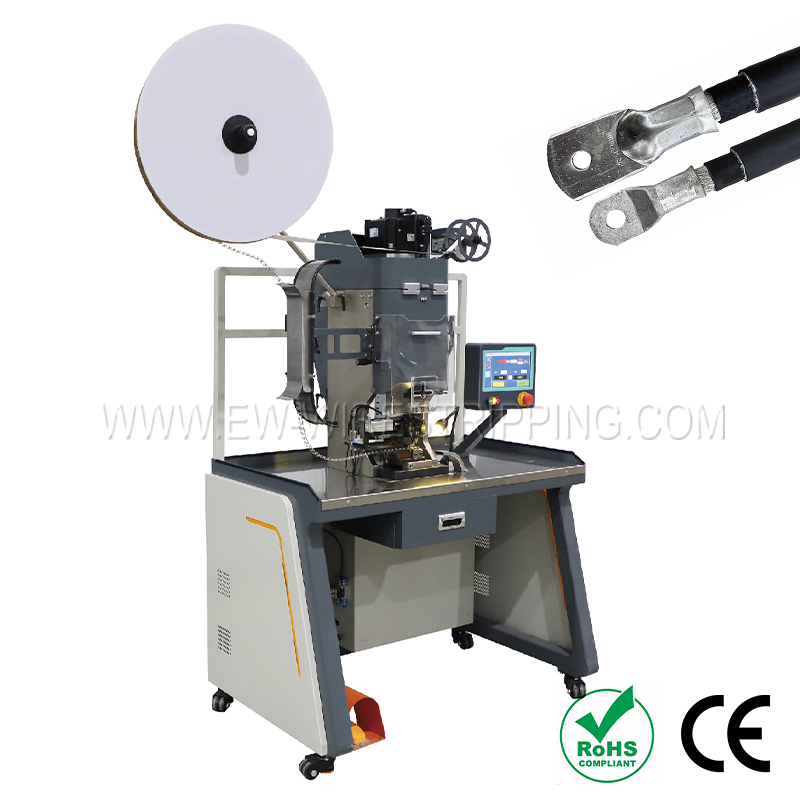

Servo Terminal Crimping Machine 8T
Electrical
47
Model：Servo Terminal Crimping Machine 8T
Model EW-5600
Crimping Force 80KN
Stroke 30mm/40mm
Wire range 0-16mm²
Crimping Force 80KN
Stroke 30mm/40mm
Wire range 0-16mm²
Technical Data
|
Model |
EW-5600 |
|
Crimping Force |
80KN |
|
Stroke |
30mm/40mm |
|
Accuracy |
0.01 |
|
Closed height |
119.7/135.78mm |
|
Wire range |
0-16mm² |
|
Power |
3.0kw |
|
Power supply |
AC380V 50/60Hz |
|
Air power |
0.5-0.7Mpa |
|
Machine Size |
1200*800*1800mm |

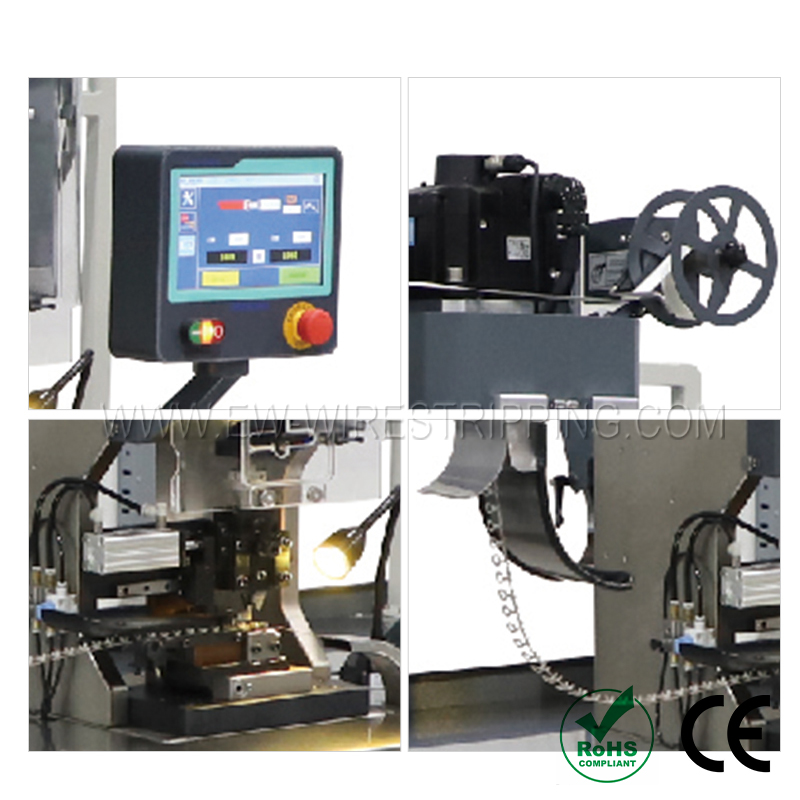

Feature
● The servo crimping system ensures crimping accuracy while improving stability and consistency.
● Automatic digital adjustment of crimp height with an accuracy of 0.001.
● Integrated pneumatic feeding, cutting, and paper collection, among other functional modules.
● The embedded pressure management system provides real-time product monitoring to ensure quality.
● Configurable storage of production process parameters enables quick switching of small batch orders.
● The OES pressure management system can be installed to connect to the MES system.

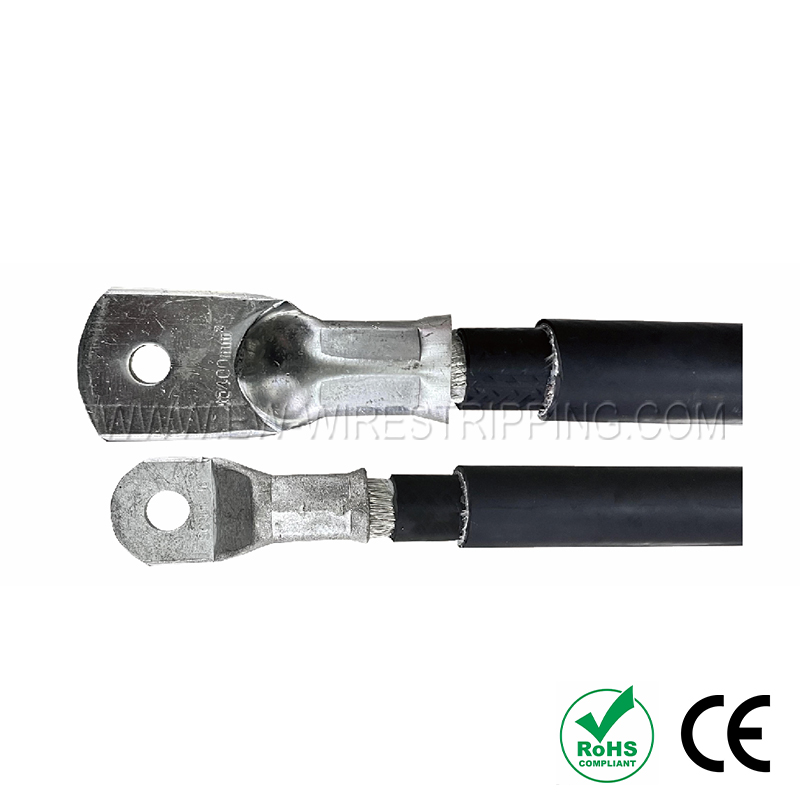

Application Range
