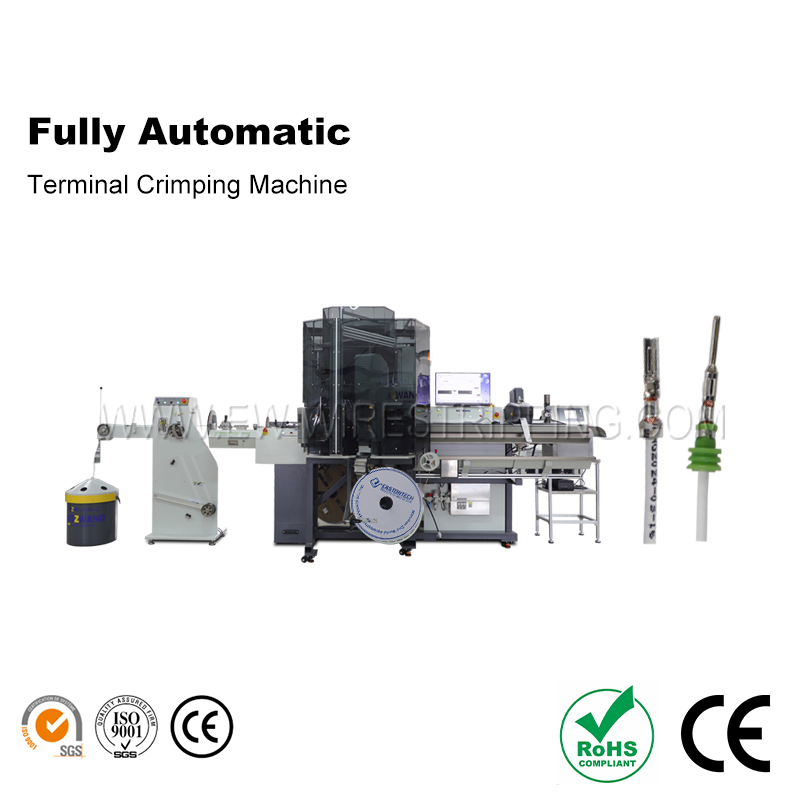

Fully Automatic Waterproof Plug Terminal Crimping Machine
Cut Strip Terminate& Solder
30
Model：Fully Automatic Waterproof Plug Terminal Crimping Machine
Model:EW-8075+1
Applicable wire range:0.22-6mm2
Cutting length:60-99999mm
Stripping length:0.1-15.5mm
Crimping force:3.0Ton
Applicable wire range:0.22-6mm2
Cutting length:60-99999mm
Stripping length:0.1-15.5mm
Crimping force:3.0Ton
Technical Data
| Model | EW-8075+1 |
| Applicable wire range | 0.22-6mm2 |
| Cutting length | 60-99999mm |
| Stripping length | 0.1-15.5mm |
| Crimping force | 3.0Ton |
| Certification | CCC, ISO, CE |
| Mould Life | >1,000,000 Shots |
| Feeding speed | Max. 10m/s |

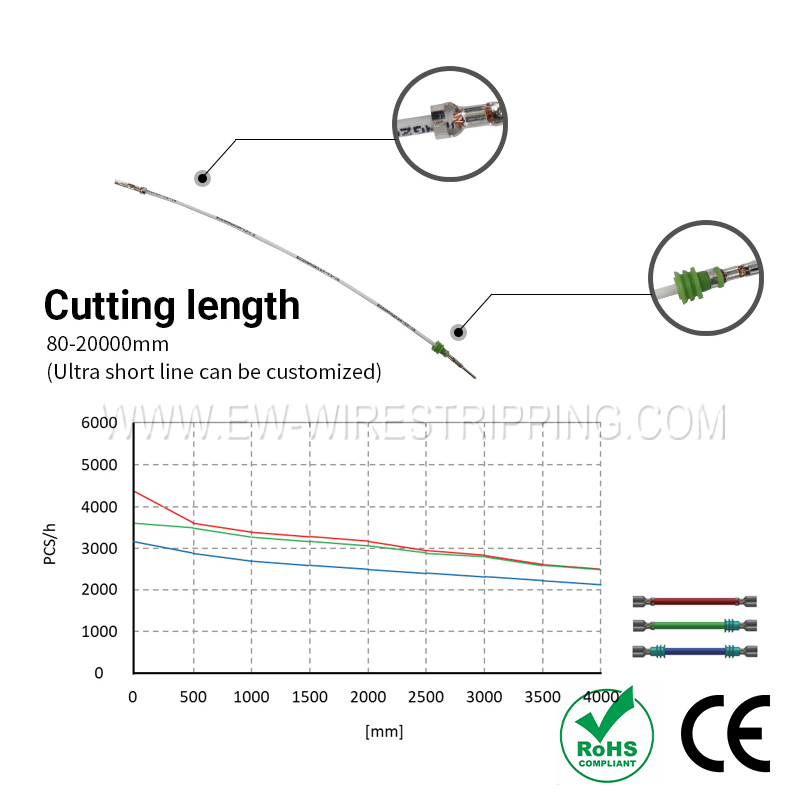

| Cutting Length | 80-20000mm |
| Air pressure | 0.5-0.8Mpa |
| Stripping/Cutting accuracy | 士(0.002mm*Stripping Length/Cutting length) |
| Crimping Force | 25kN / 40kN |
| Power supply | 220V/110V/50HZ/60HZ |
| CFM | Optional |
| Weight | 1100Kg 1800W |
| Dimension | 3500*1200*1700mm |
Feature
● EW-8075+1 is one of our newest wire pocssing equipment, the wire cross secton range extends from 0.22mm2 to 6mm2. With the touch screen, keyboard and mouse, it can be operated in a time-saving and ergonomic fashion.
● Crimp height can be set in program diretly, there is no need to adjust any screws to modify the crimping height. Crimp force monitor is integrated in the machine, the processes are constantly checked against the specified values during prodution.

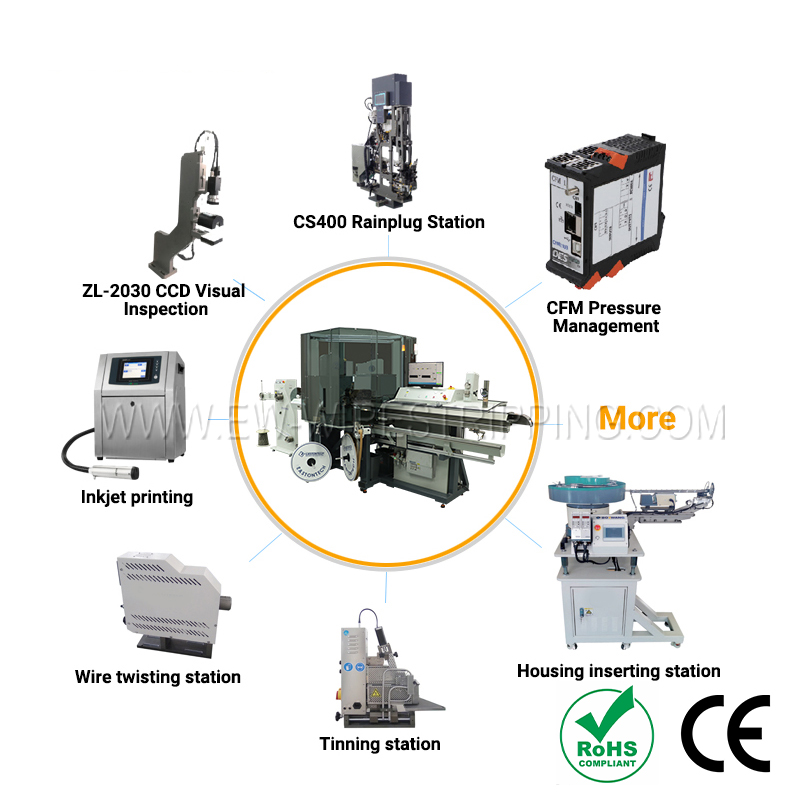

● The waterproof sealing function is optional, we can add the sealing function on one or both ends.
● This machine adopts FP2 RTX internet bus system, the operation interface is simple and easy to understand, all parameters can be easily set and accessed.

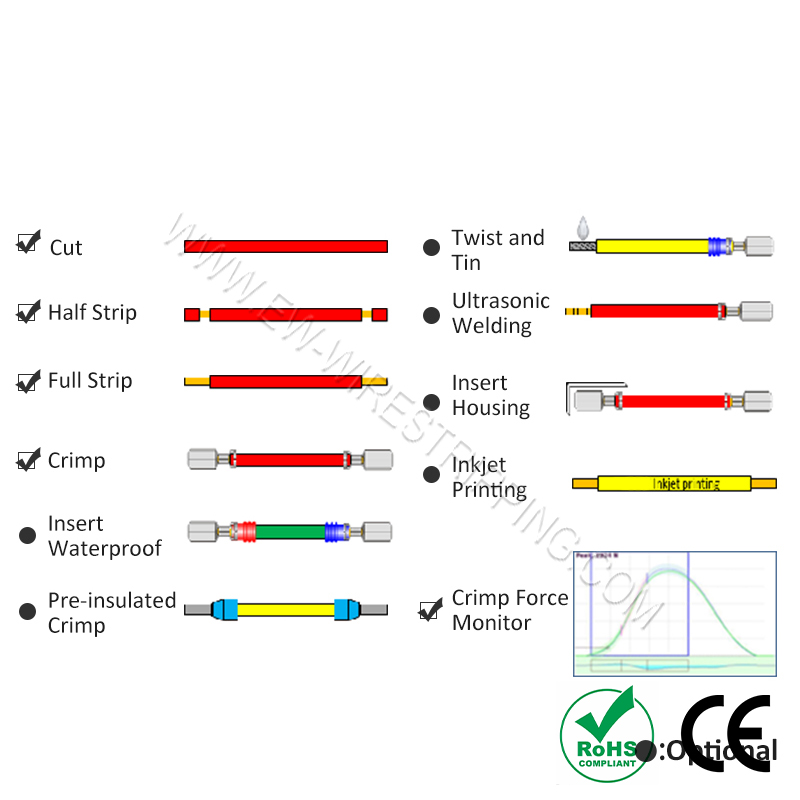

Application Range
