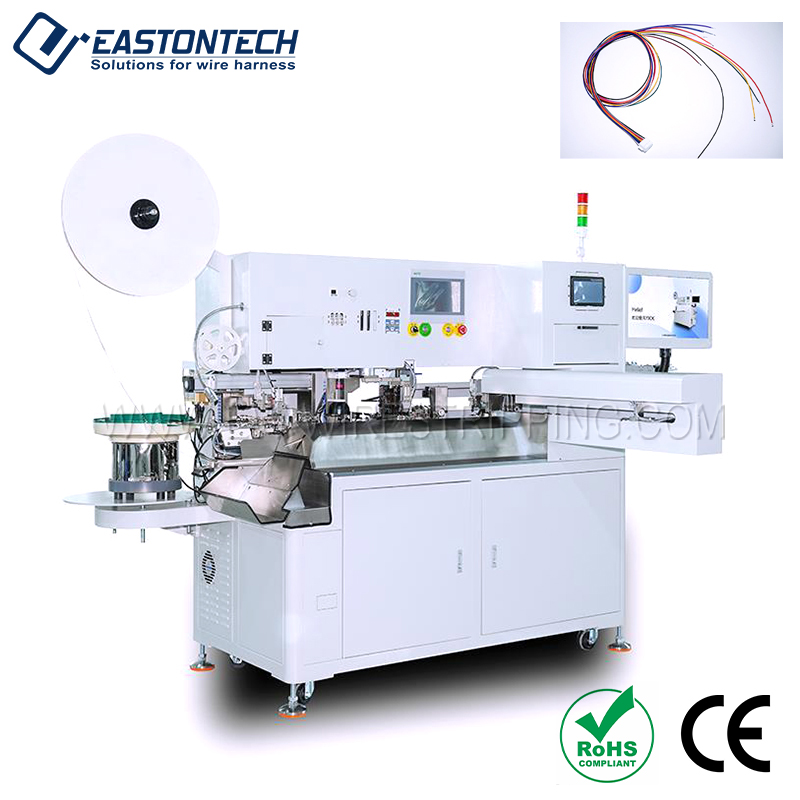

Fully Automatic Cable Housing Connector Assembly Machine
Housing/Tube Insertion
16
Model：Fully Automatic Cable Housing Connector Assembly Machine
Model: EW-9505
Processing range: AWG16-AWG28
Processing length (exposed wire length after shell penetration): 80-2000mm
Cutting accuracy: 0.5mm+cutting length*0.2%
Stripping length: A side: max10mm，B side:max6mm
Processing range: AWG16-AWG28
Processing length (exposed wire length after shell penetration): 80-2000mm
Cutting accuracy: 0.5mm+cutting length*0.2%
Stripping length: A side: max10mm，B side:max6mm
Technical Data
|
Model |
EW-9505 |
|
Processing range |
AWG16-AWG28 |
|
Processing length (exposed wire length after shell penetration) |
80-2000mm |
|
Cutting accuracy |
0.5mm+cutting length*0.2% |
|
Stripping length |
A side: max10mm，B side:max6mm |
|
Crimping capacity |
2T |
|
Maximum number of PINs |
20 holes per row, maximum 3 rows |
|
Maximum number of colors |
8 colors (more colors can be customized) |
|
Shell size |
Connector size Min.5x6x3, Max. 40x25x25mm |
|
Maximum operating speed |
Max. 1400-1600PIN/H |
|

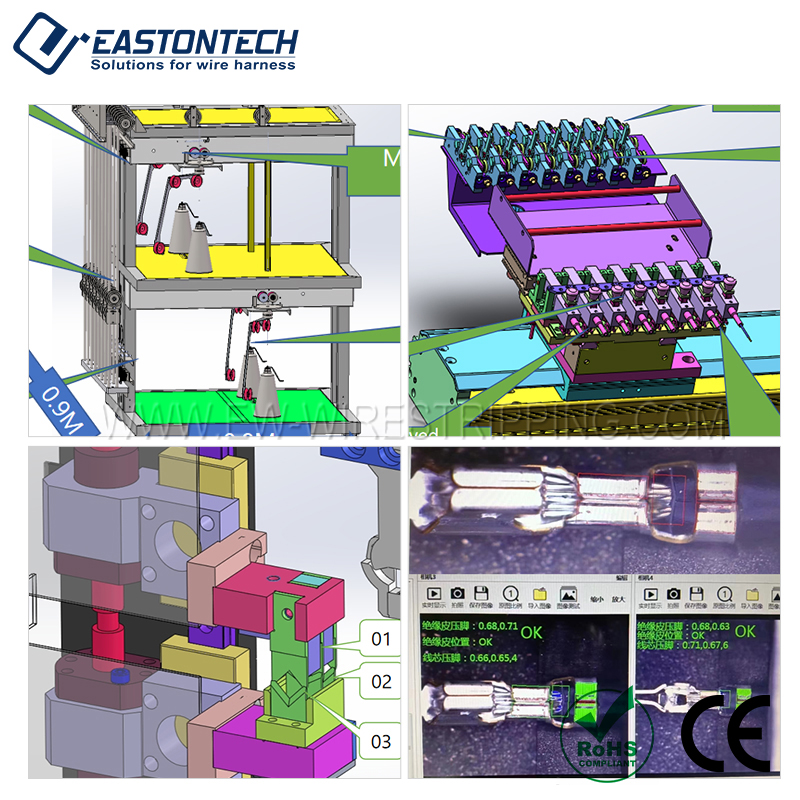

Detection device |
Terminal appearance CCD, terminal presence, plug shell back pull detection, rubber seat presence, production defect rate can be set |
|

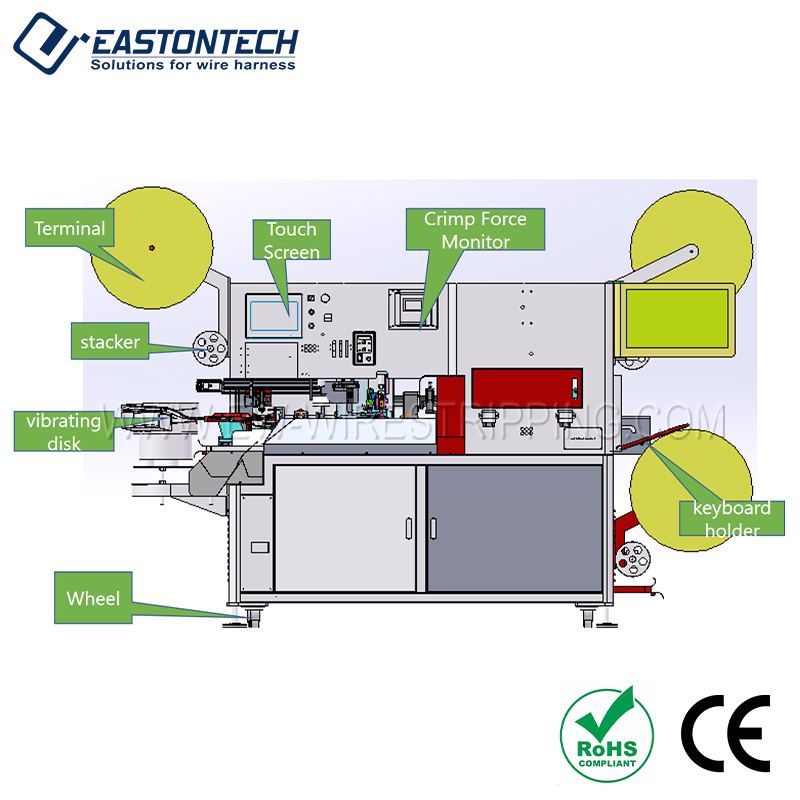

Standard components |
8-axis reel-loading universal wire feeding machine |
|
Standard |
Single-channel terminal pressure monitoring Single-lens CCD visual inspection |
|
Power supply |
220V/110V,50Hz/60Hz |
|
Maximum Power |
4.8KW |
|
Air pressure |
0.6-0.8MPa |
|
Machine weight |
About 750kg |
|
Dimensions |
2200L*1650W*1850H (excluding wire feeding machine and vibration plate, the size of non-standard machine shall be subject to the actual machine) |
Feature
● EW-9505 Fully Automatic Cable Housing Connector Assembly Machine can process AWG16–AWG28 wires with stripping length from 80 to 2000 mm. Cutting accuracy is ±0.5 mm + length × 0.2%.A-side stripping max 10 mm, B-side max 6 mm.
● Crimping force is 2T, up to 20 PINs per row and 3 rows. Suitable for common connector sizes.
● Speed is 1400–1600 PINs/h.
● Equipped with CCD and basic detection functions. Comes with wire feeding machine.
● Power supply 220 V/110 V, max power 4.8 kW, air pressure 0.6–0.8 MPa, weight about 750 kg.

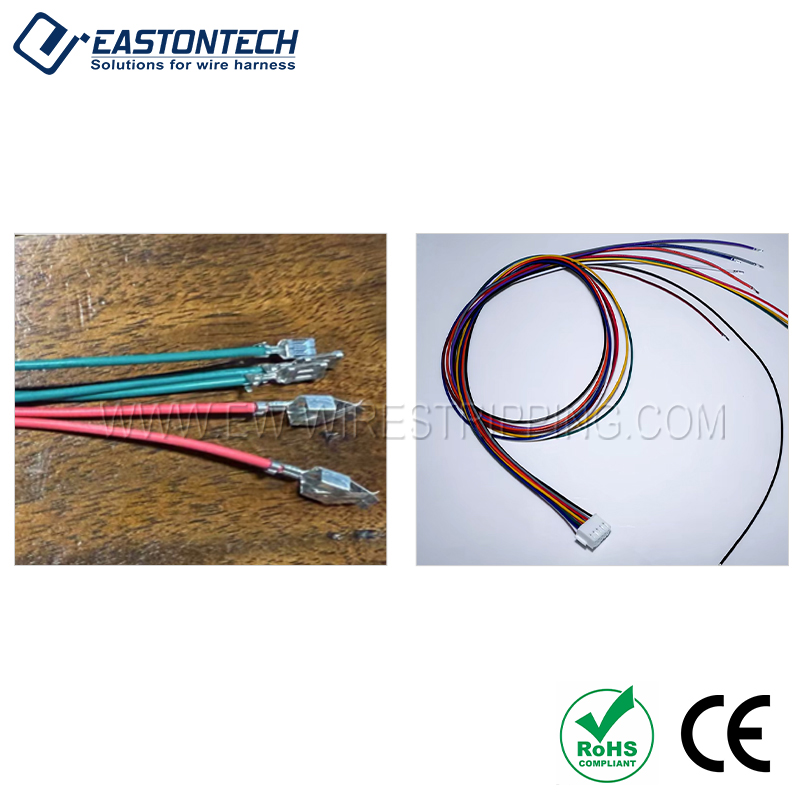

Application Range
