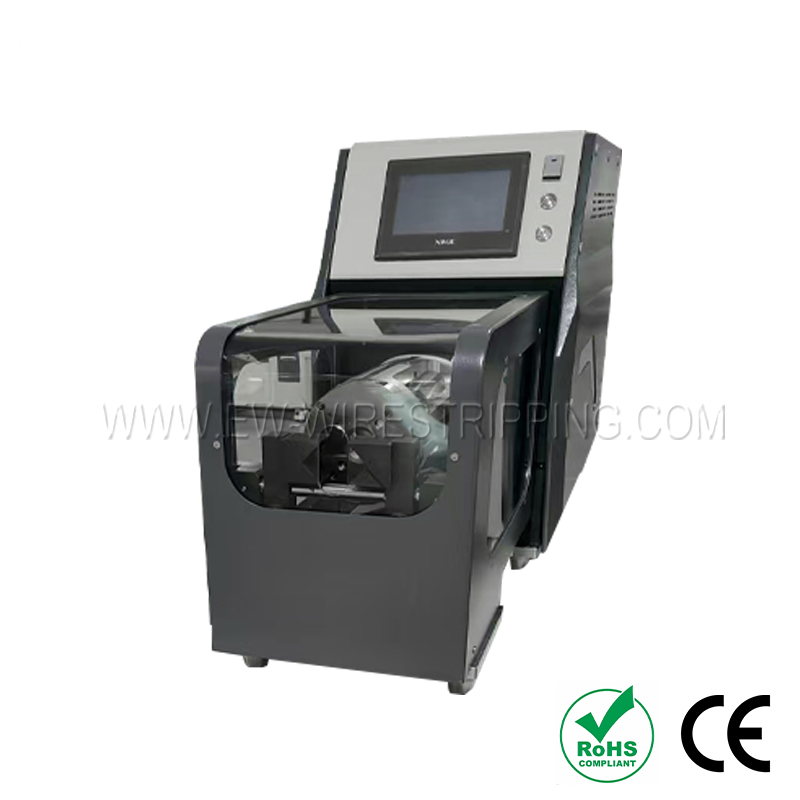

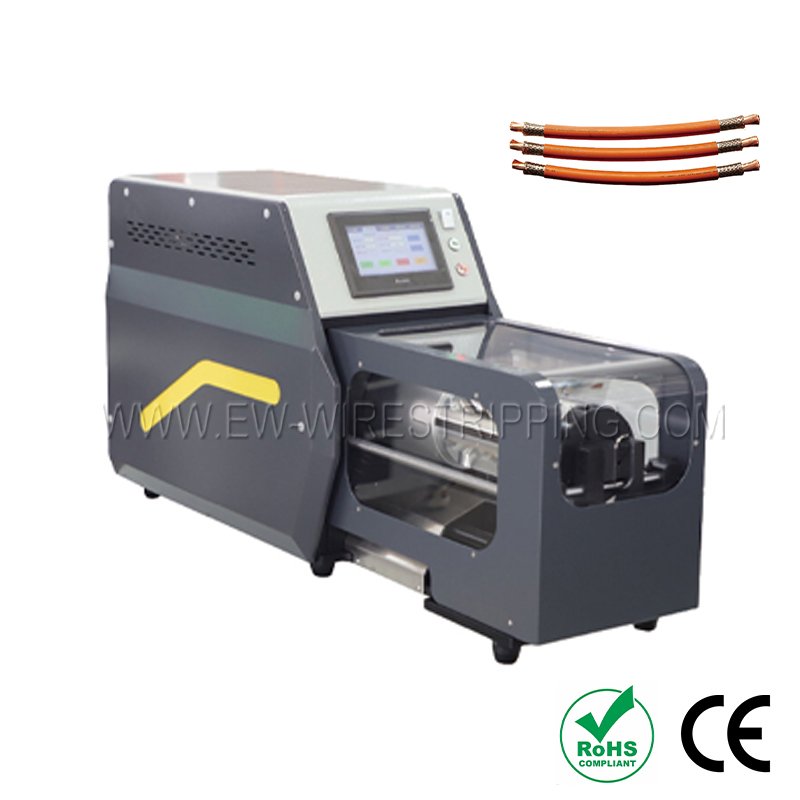

Coaxial Wire Stripping Machine(OD 4-30mm)
Strip,Twist
31
Model：Coaxial Wire Stripping Machine(OD 4-30mm)
Model:EW-0680
Stripping Length:0.1mm-200mm
Stripping Length Setting Unit:0.01mm
Wire Diameter Range:OD 4-30mm
Cutting Depth Setting Unit:0.01mm
Stripping Length:0.1mm-200mm
Stripping Length Setting Unit:0.01mm
Wire Diameter Range:OD 4-30mm
Cutting Depth Setting Unit:0.01mm
Technical Data
|
Model |
EW-0680 |
|
Applicable Wire |

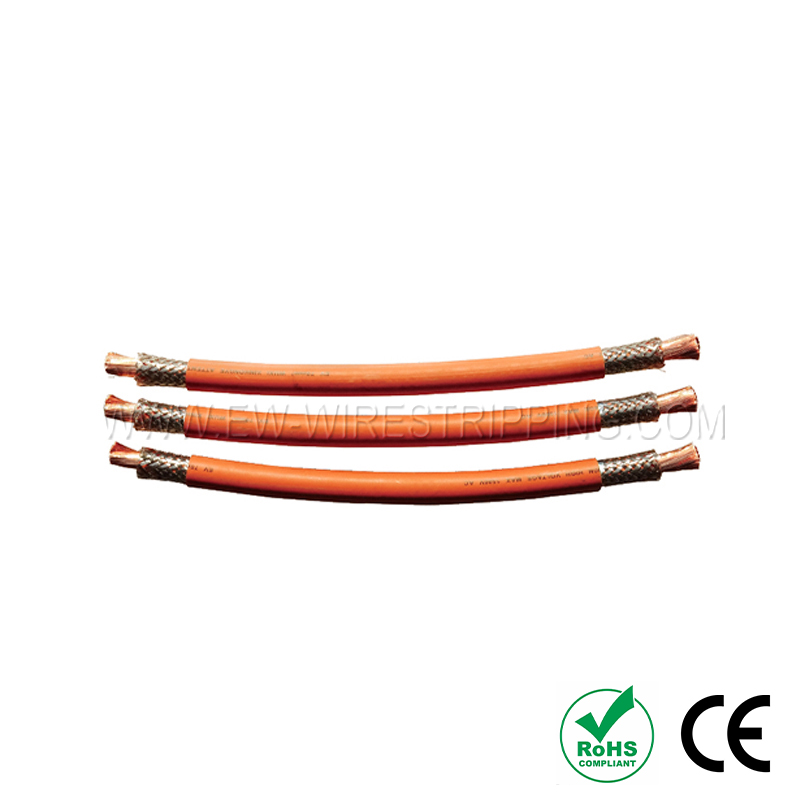

New energy cables, coaxial cables |
|
Stripping Length |
0.1mm-200mm |
|
Stripping Length Setting Unit |
0.01mm |
|
Wire Diameter Range |
OD 4-30mm |
|
Cutting Depth Setting Unit |
0.01mm |
|
Tool Material |
Imported tungsten steel |
|
Stripping Method |
Rotary blade |
|
Working Environment |
Dry, vibration-free work surface |
|
Power Supply |
AC220V 50/60Hz |
|
Power Consumption |
1000W |
|
Production Efficiency |
300-500 pieces/hour |
|
Drive Mode |
Motor/ball screw drive |
|
Number of Stripping Layers |
≤9 layers |
|
Dimensions |
1200*385*605mm |
|
Weight |
120kg |
|
Air Source |
0.4-0.6MPa |
|
Pedal Control |
Yes |
Feature
●This machine is primarily designed for multi-layer stripping of larger, dry, or large communication cables.

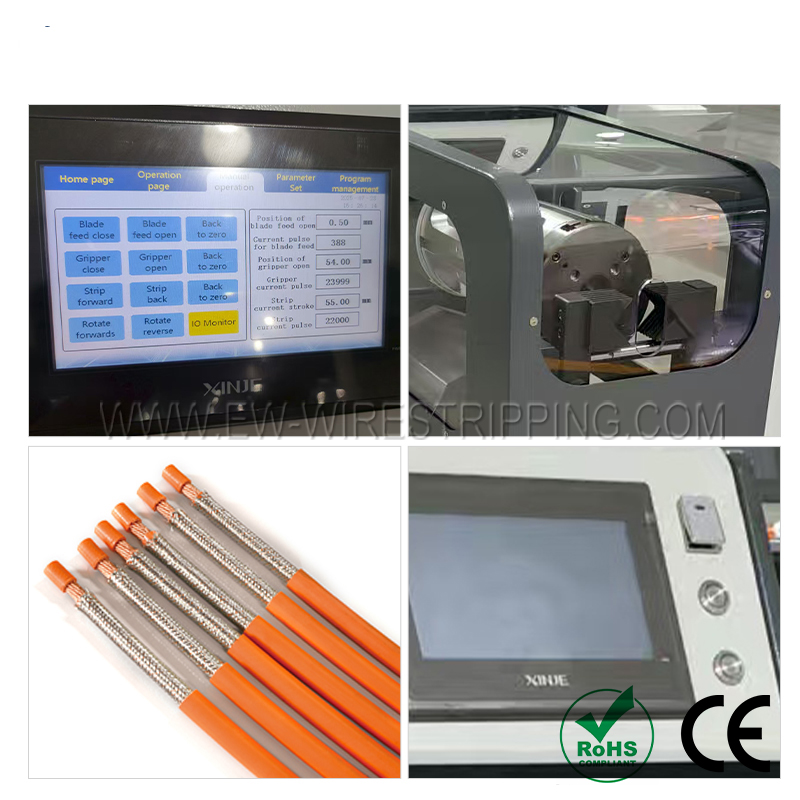

● It features a touchscreen interface, allowing for digital input of stripping depth, speed, distance, and rotation time.
● It utilizes a highly advanced rotating tool holder, improving processing accuracy and speed.
● It utilizes a specialized axis positioning device and rotating tool mechanism, capable of stripping up to nine layers, allowing it to process wires of various sizes and jackets without the need for blade replacement.
● It utilizes a wire clamp, automatic centering, motor drive, and programmable clamping force control.
Application Range
