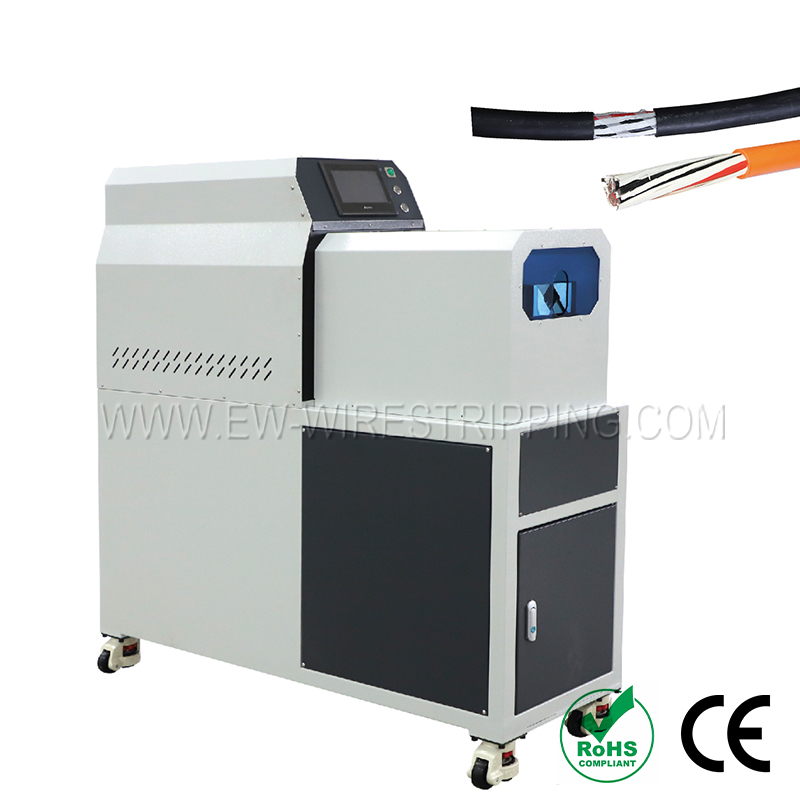

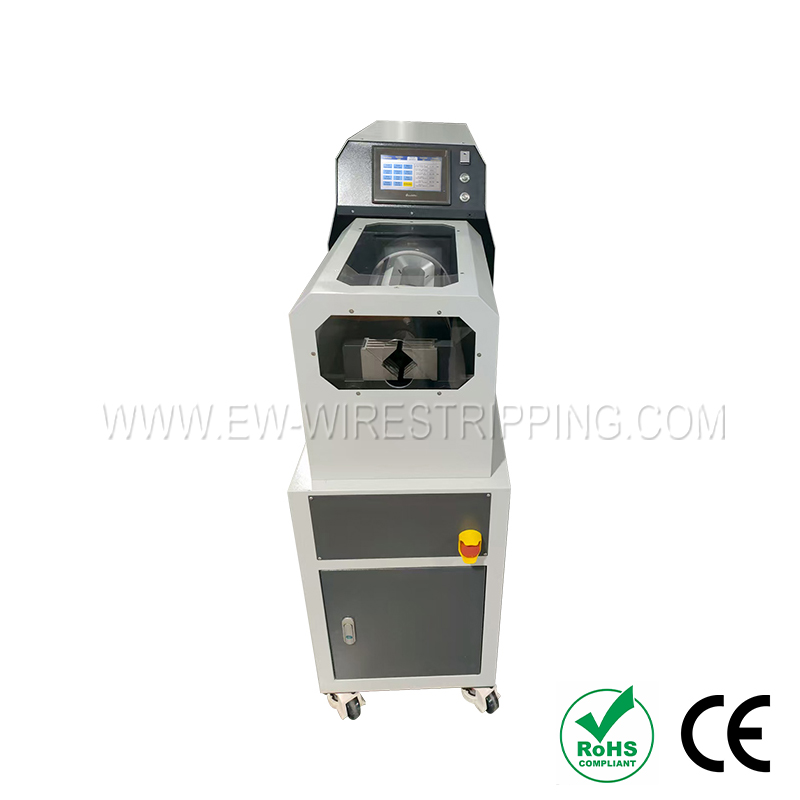

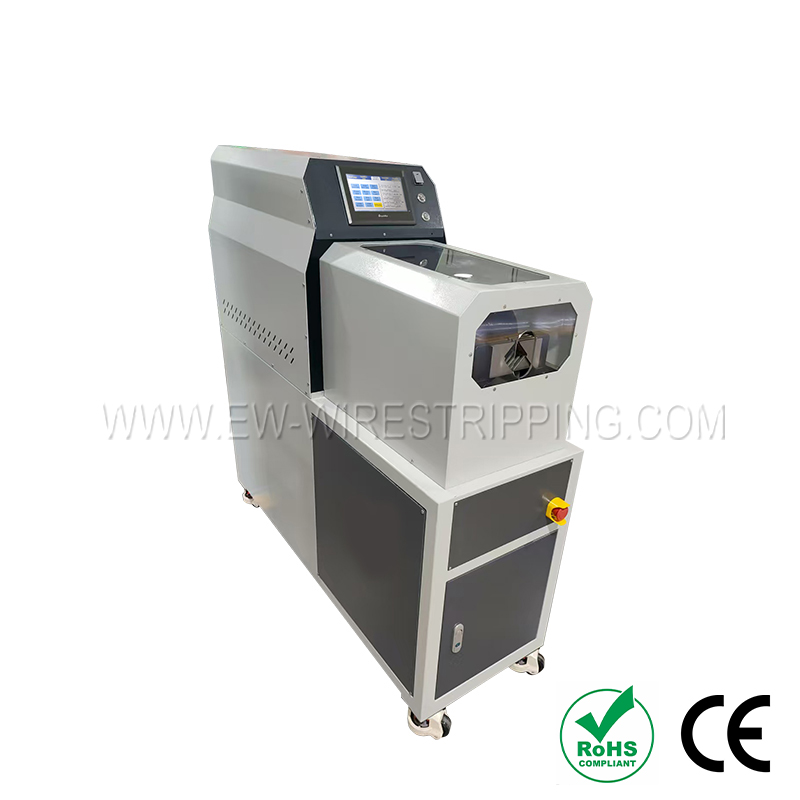

Coaxial Wire Stripping Machine (OD 10-50mm)
Strip,Twist
31
Model：Coaxial Wire Stripping Machine (OD 10-50mm)
Model:EW-0685
Power Supply:AC220V/110V 50/60Hz
Power:300W
Stripping Length:0.1mm-200mm
Wire Diameter Range:OD 10-50mm
Power Supply:AC220V/110V 50/60Hz
Power:300W
Stripping Length:0.1mm-200mm
Wire Diameter Range:OD 10-50mm
Technical Data
|
Model |
EW-0685 |
|
Applicable Wire |
Large coaxial cables, automotive cables |
|
Power Supply |
AC220V/110V 50/60Hz |
|
Power |
300W |
|
Stripping Length |
0.1mm-200mm |
|
Stripping Length Setting Unit |
0.01mm |
|
Wire Diameter Range |
10-50mm diameter |
|
Cutting Depth Setting Unit |
0.01mm |
|
Stripping Method |
Rotary blade |
|
Maximum Number of Stripping Layers |
9 layers |
|
Production Efficiency |
300-500 pcs/h |
|
Tool Material |
Imported tungsten steel |
|
Drive Method |
Motor/ball screw drive |
|
Working Environment |
-5-45 Dry degrees, vibration-free work surface |
|
Dimensions |
1340x450x1340mm |
|
Air Source |
0.4-0.6 MPa |
|
Pedal Control |
Yes |
Feature

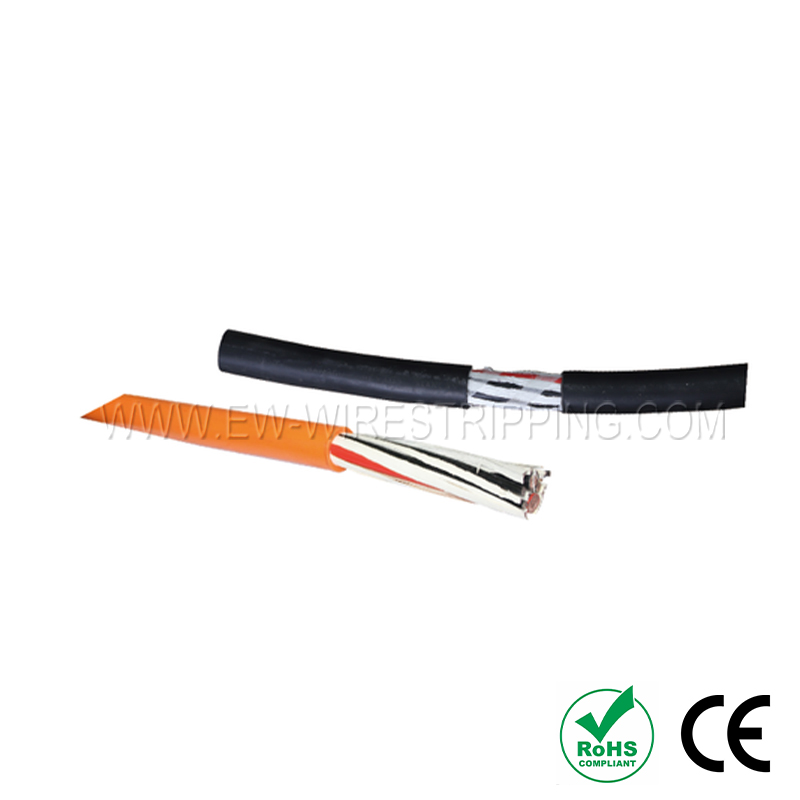

● This machine is primarily designed for multi-layer stripping of larger, dry, or large communication cables.
● It features a touchscreen interface, allowing for digital input of stripping depth, speed, distance, and rotation time.
●It utilizes a highly advanced rotating tool holder, improving processing accuracy and speed.
● It utilizes a specialized axis positioning device and rotating tool mechanism, capable of stripping up to nine layers, allowing it to process wires of various sizes and jackets without the need for blade replacement.
●It utilizes a wire clamp, automatic centering, motor drive, and programmable clamping force control.
Application Range
