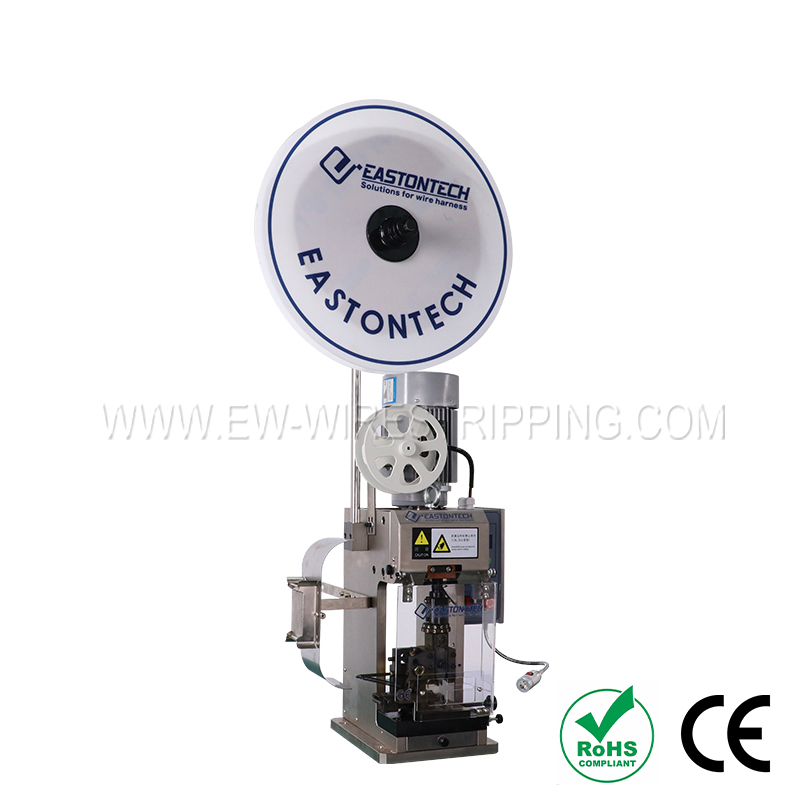

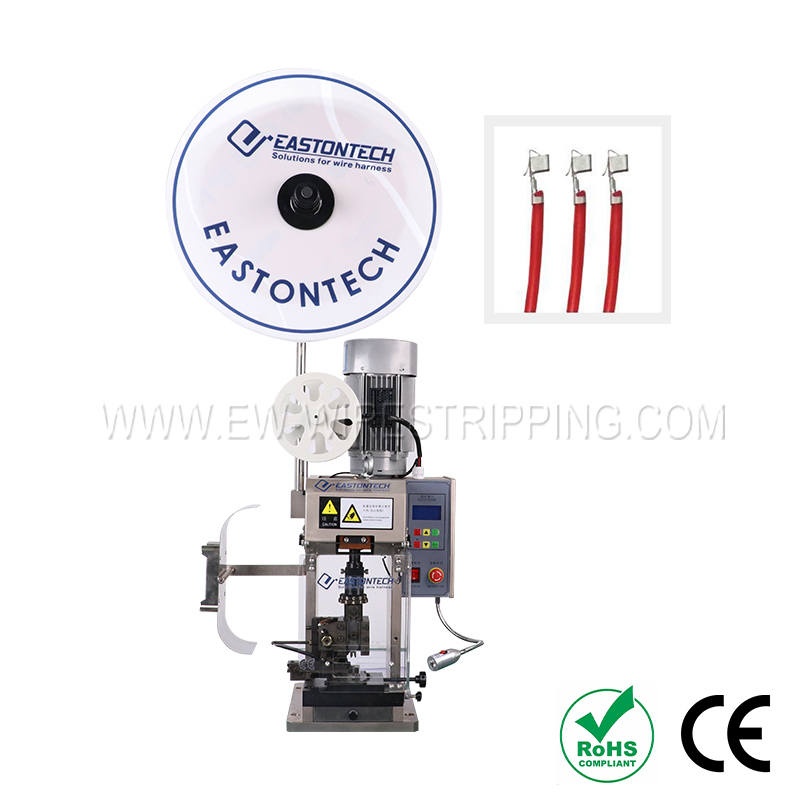

2T Bench Top Crimping Machine
Crimp
43
Model：2T Bench Top Crimping Machine
Model:EW-9820
Crimp force:2T
Stroke:30mm/40mm
Rated Power :0.75KW
Power supply:AC110/220/50/60HZ
Crimp force:2T
Stroke:30mm/40mm
Rated Power :0.75KW
Power supply:AC110/220/50/60HZ
Technical Data
|
EW-9820 |
|
|
Crimp force |
2T |
|
Stroke |
30mm/40mm |
|
Rated Power |
0.75KW |
|
Closed height(Optional) |
Japan mold:119.7mm EU mold:135.78mm Stamping mold: 192mm+10mm |
|
Adjustment |
10mm/6mm |
|
Power supply |
AC110/220/50/60HZ |
|
Wire Size |
0-4mm² |
|
Dimension |
350*350*700mm |
|
Weight |
85Kg |
|
Pedal |
Yes |
|
Air Pressure |
N/A |
Feature
● Quick changeover, setup and cycle times.
● Minimal material used during setup.
● Easy to operate with TopTouch.
● Flexiblity adaptation between different type of applicators.
● Optional function: Integrated crimp force analysis CFA / CFA+.

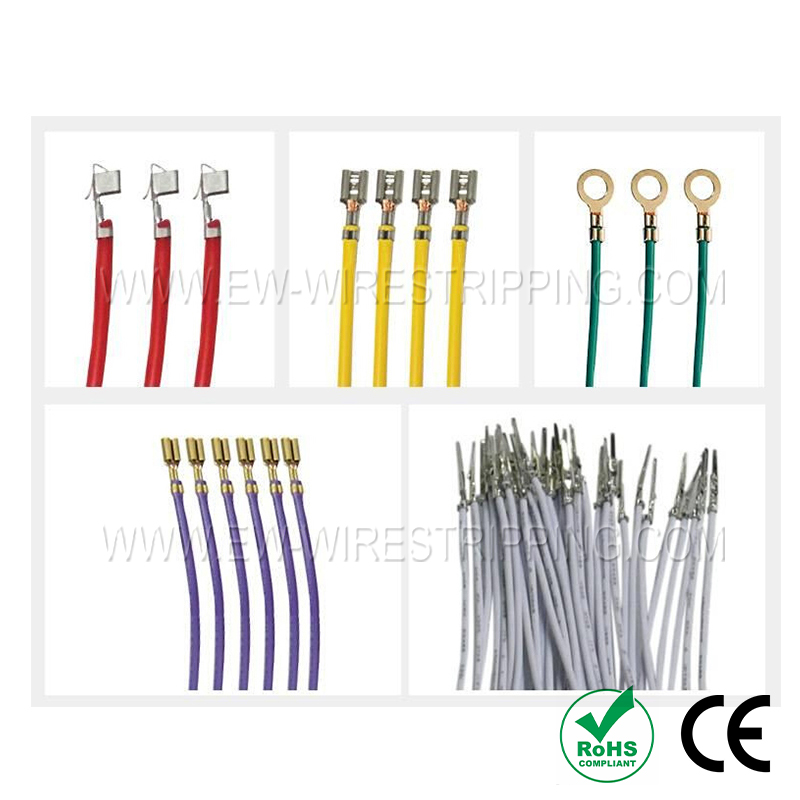

Application Range
