Model |
EW-5575 |
| Machine Type |

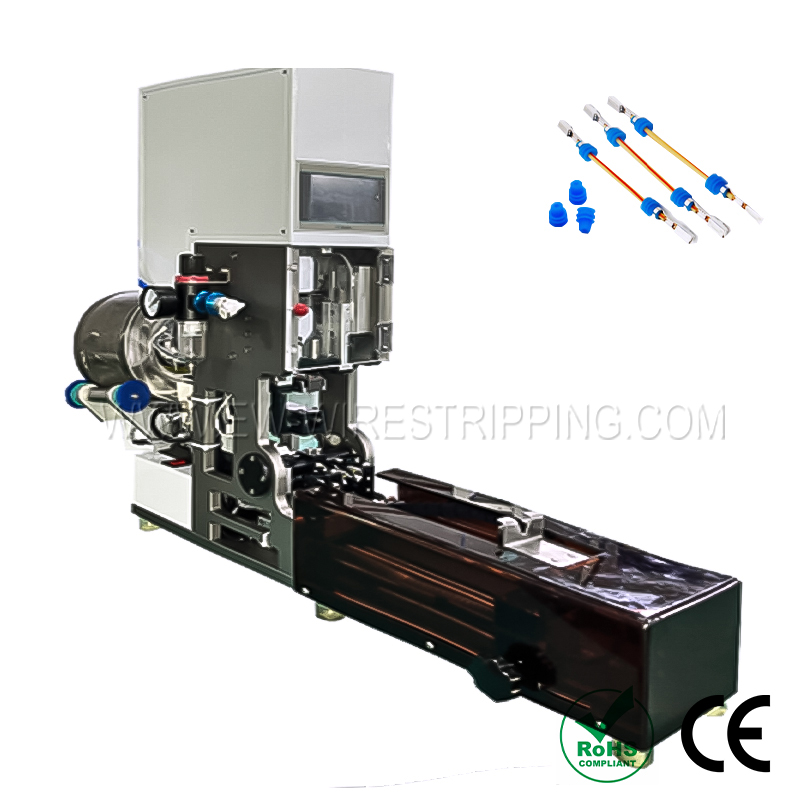

Fakra Wire Harness Grommet Insertion Machine |
|
Grommet Diameter Range |
Ø3–13mm (Customizable for >14mm) |
|
Wire Outer Diameter (OD) |
3.0–16mm (Customizable for >16mm) |
|
Insertion Depth |
20–260mm (Grommet Position) |
|
Minimum Wire Tail Length |
20mm |
|
Air Supply |
0.5-0.6MPa |
|
Power Supply |
AC 220 50HZ |
|
Speed |
60 cycles/min (2,000–2,500 cycles/hour; Max 3,000 cycles/hour) |
|
Motor Power |
24VDC-50w |
|
Weight |
42kg |
|
Dimensions |
600mm (L) × 200mm (W) × 630mm (H) |
● Automated Solution for Difficult Grommet Insertion

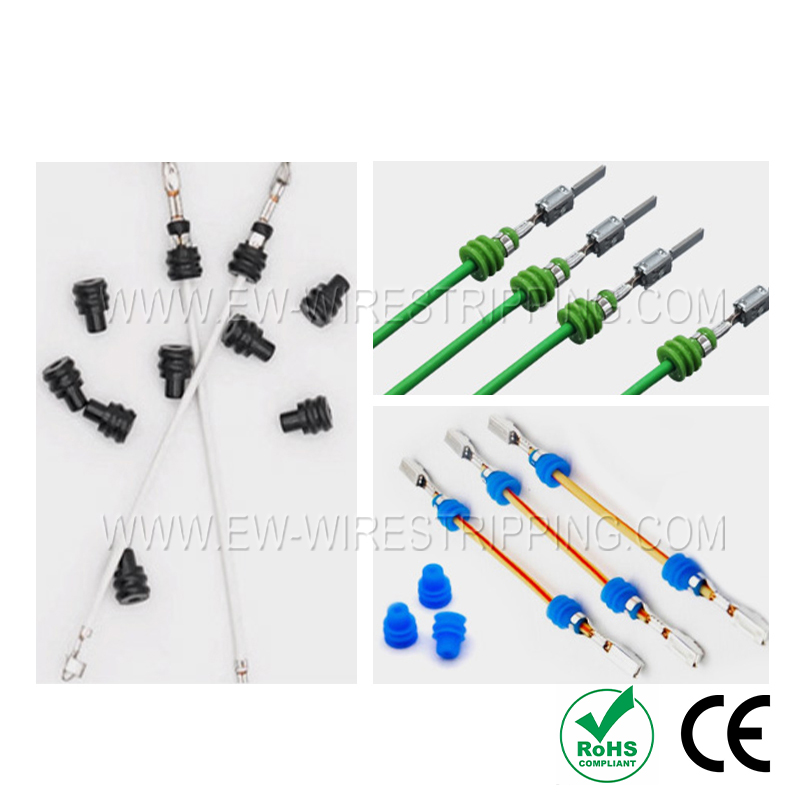

The EW-5575 is specifically designed for rubber and silicone grommets that are difficult to handle manually due to their flexible and deformable characteristics. The dedicated feeding and positioning mechanism ensures stable and consistent insertion performance.
● Wide Compatibility with Automotive Cable Assemblies
The machine supports wire outer diameters from 3.0–16 mm and grommet diameters from Ø3–13 mm, making it suitable for various automotive wire harness and waterproof cable assembly applications.
● Flexible Insertion Position Control
With an insertion depth range of 20–260 mm, the EW-5575 allows precise grommet positioning according to different harness designs and production requirements.
● Process Sequence Flexibility
The machine supports grommet insertion either before or after wire stripping, allowing manufacturers to integrate the equipment into different wire harness production processes.
● Fast Format Change with Track Replacement
Different grommet sizes can be switched by replacing the corresponding feeding track, reducing setup time and improving production flexibility for multiple harness models.
● High-Efficiency Automated Production
With a speed of 60 cycles/minute (2,000–2,500 cycles/hour, maximum 3,000 cycles/hour), the EW-5575 significantly improves production efficiency compared with manual grommet installation.
● Automotive Wire Harness Manufacturing: Designed for inserting rubber and silicone grommets into Fakra cables, sensor harnesses, and automotive wiring assemblies requiring waterproof protection.
● Electric Vehicle & Battery Cable Production:Suitable for large-gauge power cables, battery wiring harnesses, and high-voltage cable assemblies requiring reliable sealing components.
● Communication & Data Cable Assembly:Applicable for coaxial cables, Ethernet cables, and communication harnesses requiring grommet installation for environmental protection.
● Electronic Equipment Manufacturing:Used for cable assemblies requiring waterproof grommet positioning and automated insertion processes.
● Industrial Cable Processing: Suitable for manufacturers producing customized cable assemblies with different grommet sizes and wire specifications.
What is the EASTONTECH EW-5575 Fakra Wire Harness Grommet Insertion Machine used for?
The EW-5575 is designed for automatic insertion of rubber and silicone grommets into wire harnesses, Fakra cables, and other cable assemblies requiring waterproof sealing protection.
What wire sizes can the EW-5575 process?
The machine supports wire outer diameters from 3.0–16 mm and can be customized for larger cable diameters above 16 mm.
What types of grommets can this machine insert?

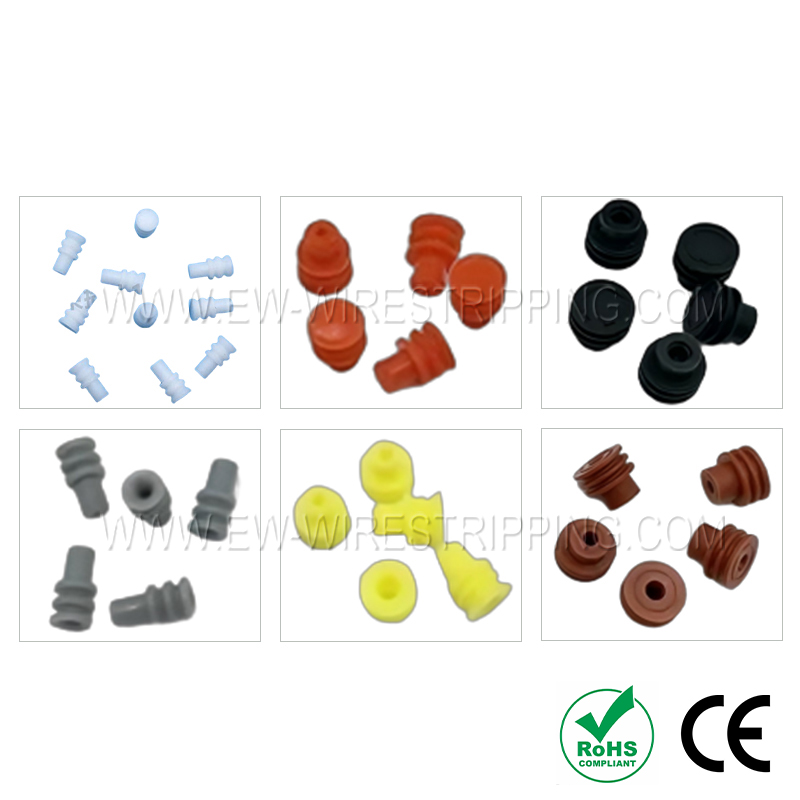

The EW-5575 is suitable for rubber and silicone grommets with diameters from Ø3–13 mm. Different grommet sizes can be supported by replacing the corresponding feeding track.
Can the EW-5575 insert grommets before or after wire stripping?
Yes. The machine supports both insertion sequences, allowing manufacturers to integrate it into different wire harness production workflows.
What industries use automatic grommet insertion machines?
The EW-5575 is widely used in automotive wire harness manufacturing, EV cable production, communication cable assembly, and waterproof cable processing applications.
