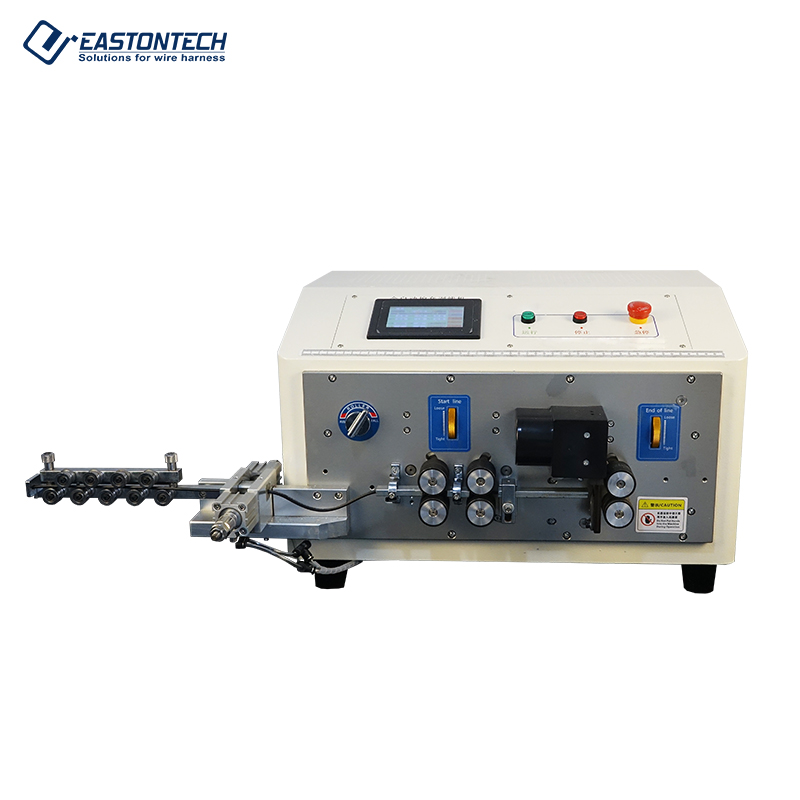

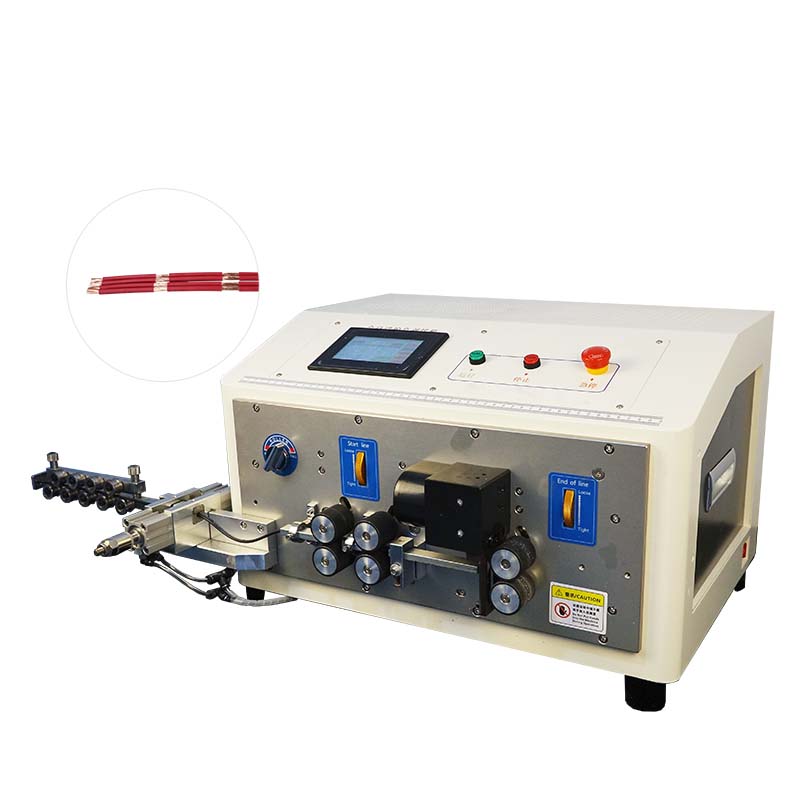

Wire Cutting And Stripping Machine+Middle Stripping
Eco-cut&Strip
56
Model：Wire Cutting And Stripping Machine+Middle Stripping
Model: EW-3030+M
Conductor cross-section: 1 - 10 mm
Stripping length:Head:0.1-250mm Tail: 0.1-70mm
Cutting length: 1 - 99999.99 mm
Cutting length tolerance:0.002 * L (L = cutting length)
Conductor cross-section: 1 - 10 mm
Stripping length:Head:0.1-250mm Tail: 0.1-70mm
Cutting length: 1 - 99999.99 mm
Cutting length tolerance:0.002 * L (L = cutting length)
Technical Data
|
Model |
EW-3030+M |
|
Function |

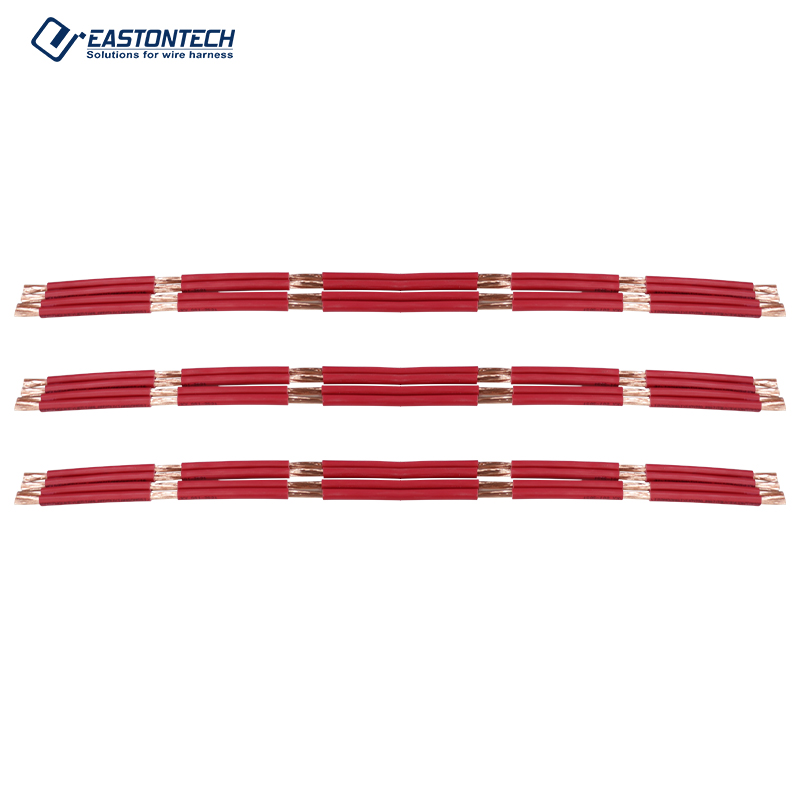

Wire cutting, double-end stripping, middle stripping |
|
Wire diameter |
1-10mm |
|
Cutting length |
0.1mm-99999.9mm |
|
Stripping length |
Stripping head:0.1-250mm Stripping tail: 0.1-70mm |
|
Stripping accuracy |
Silent hybrid stepper motor 0.01mm |
|
Number of segments |
Not limited |
|
Middle stripping mold |
10mm (can be customized) |
|
Capacity |
1000-3000 / h |
|
Blade material |
Imported tungsten steel / high speed steel |
|
Power |
AC110V/220V 50/60HZ |
|
Dimension |
565mm*385mm*370mm |
|
Weight |
42kg |
|
Remark function |

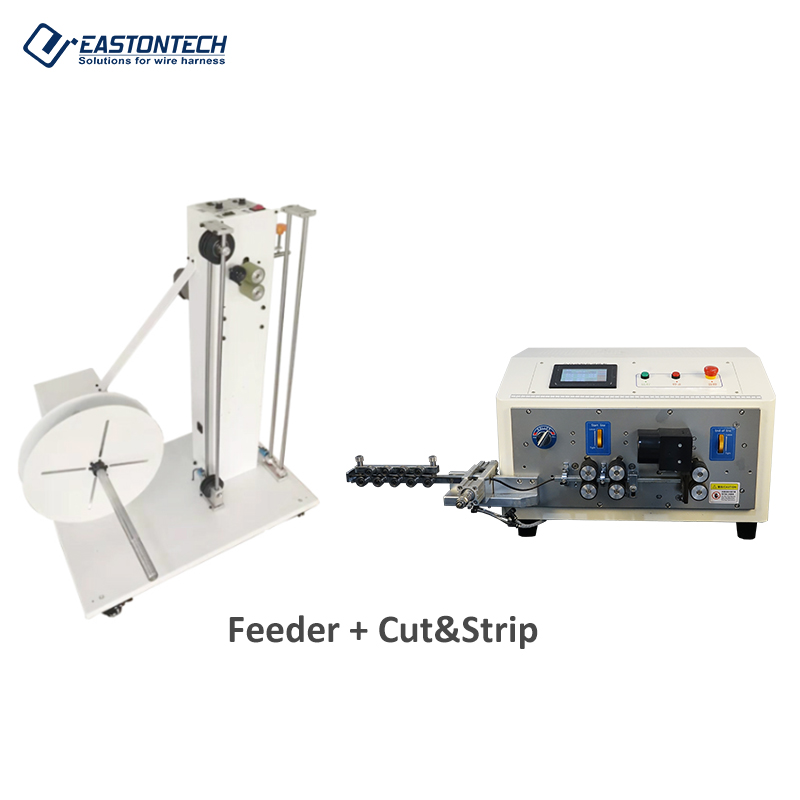

Automatic entry / exit, timing start, jog adjustment |
Feature
● High-performance, even for small cross-sections.
● No limit on number of segments.
● Cutting force, high volume output and advanced sensor technology make EW-3030+M the number one choice for automated cutting and stripping.
● The machines can be used very efficiently thanks to their simple, intuitive control elements.
Application Range
