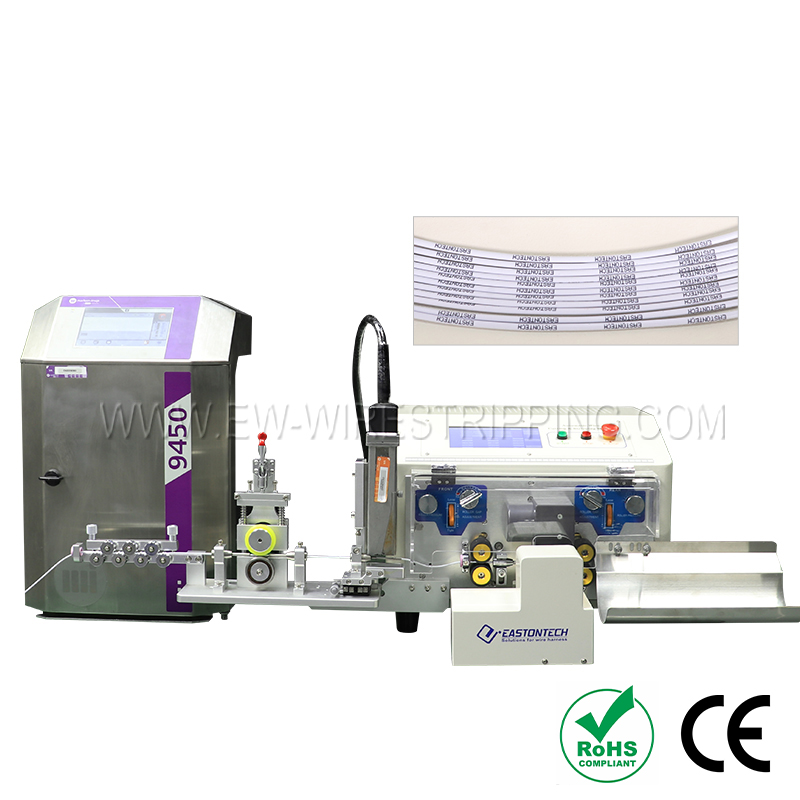

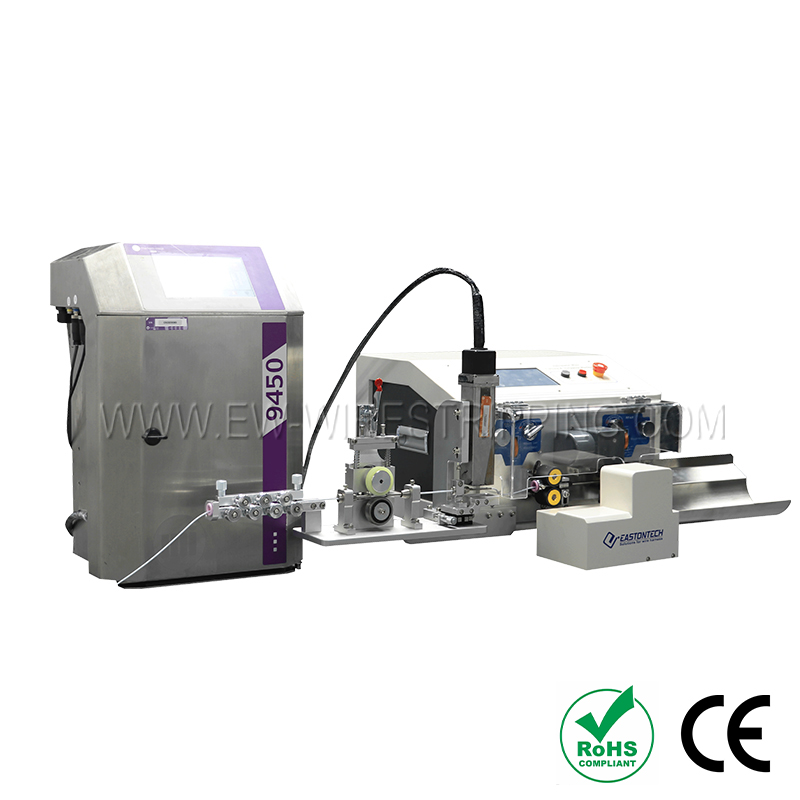

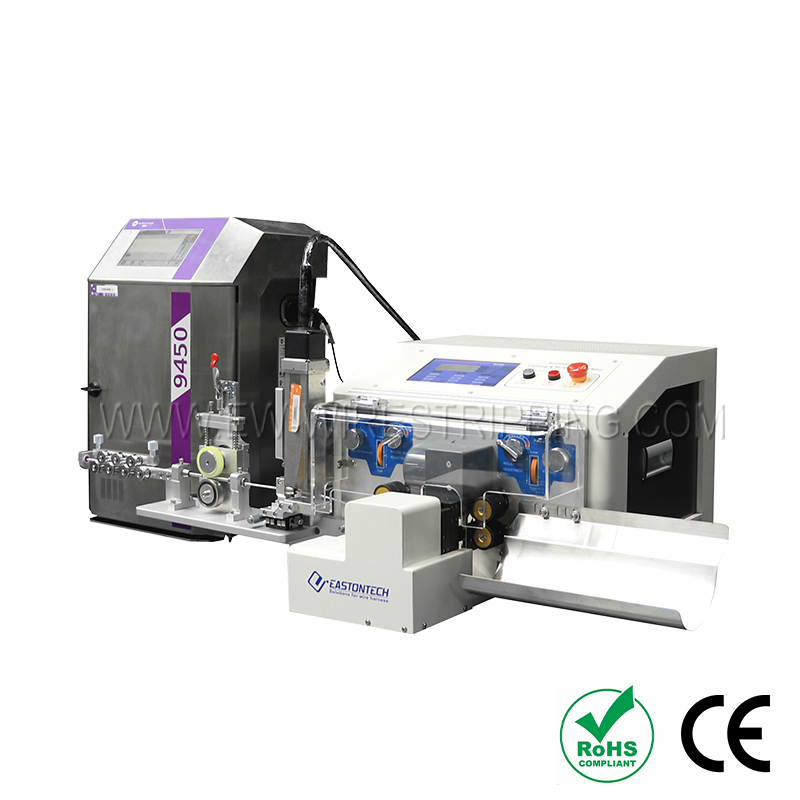

Wire Stripping & Twisting Machine(O.1 - 4 mm2) With Ink-jet Printer
Cut&Strip
55
Model：Wire Stripping & Twisting Machine(O.1 - 4 mm2) With Ink-jet Printer
Model: EW-3015+P
Function: Wire cutting, double-end stripping, middle stripping
Wire range: 0.1-4mm²(single);0.1-2mm²(double wire）
Twisting range: 0.1-1mm²
Cutting length: 0.1mm-99999.9mm
Function: Wire cutting, double-end stripping, middle stripping
Wire range: 0.1-4mm²(single);0.1-2mm²(double wire）
Twisting range: 0.1-1mm²
Cutting length: 0.1mm-99999.9mm
Technical Data
|
Model |
EW-3015+P |
|
Function |
Wire cutting, double-end stripping, middle stripping |
|
Wire range |
0.1-4mm²(single);0.1-2mm²(double wire） |
|
Twisting range |
0.1-1mm2 |
|
Cutting length |
0.1mm-99999.9mm |
|
Stripping length |
Stripping head:0.1-250mm stripping tail: 0.1-70mm |
|
Stripping accuracy |
Silent hybrid stepper motor 0.01mm |
|
Intermediate strip |
16 (can be customized) |
|
Capacity |
3000-8000 / h |
|
Blade material |
Imported tungsten steel / high speed steel |
|
Power |
AC110V/220V 50/60HZ |
|
Size |
470mm * 700mm * 350mm |
|
Weight |
40kg |
|
Remark function |
Automatic entry / exit, timing start, jog adjustment |
Feature
● The EW-3015 is exclusively designed wire stripping and twisting machine.
● Poweful stepper motors, mute subdivision drivers, integrated control board. High-speed, precise, long service life, no noise pollution.

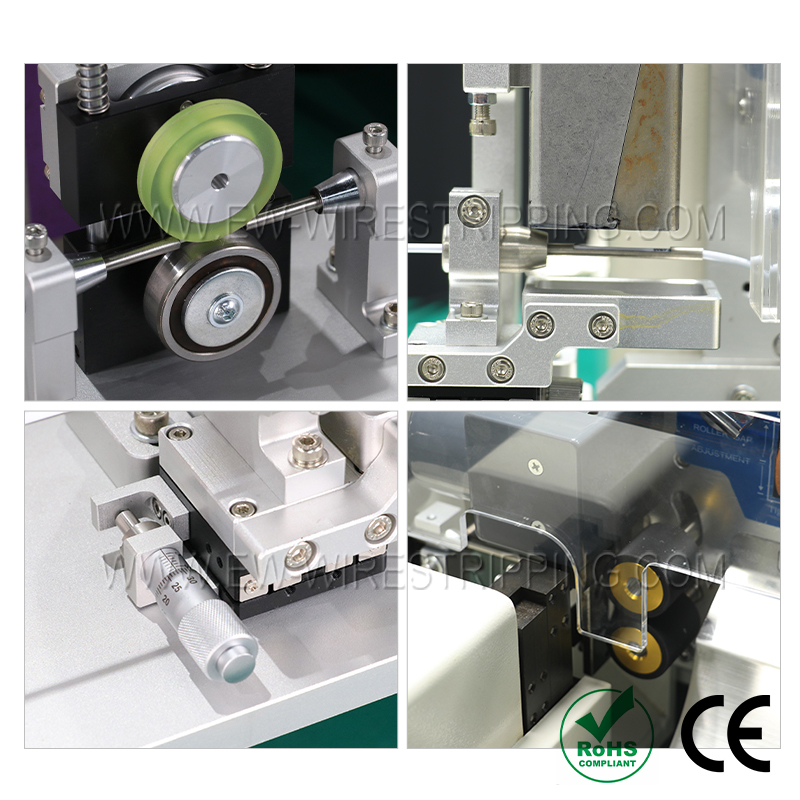

● Unique twist device guarantees perfect twisting resutl, twisting speed & length are all programmble easily via touch screen.
● Instead of traditional pulse adjustment, the EW-3015 integrates innovative way to set cutter diameter, fast and accurate.
● Automatic length correction saves much time and ensures cutting accuracy.
