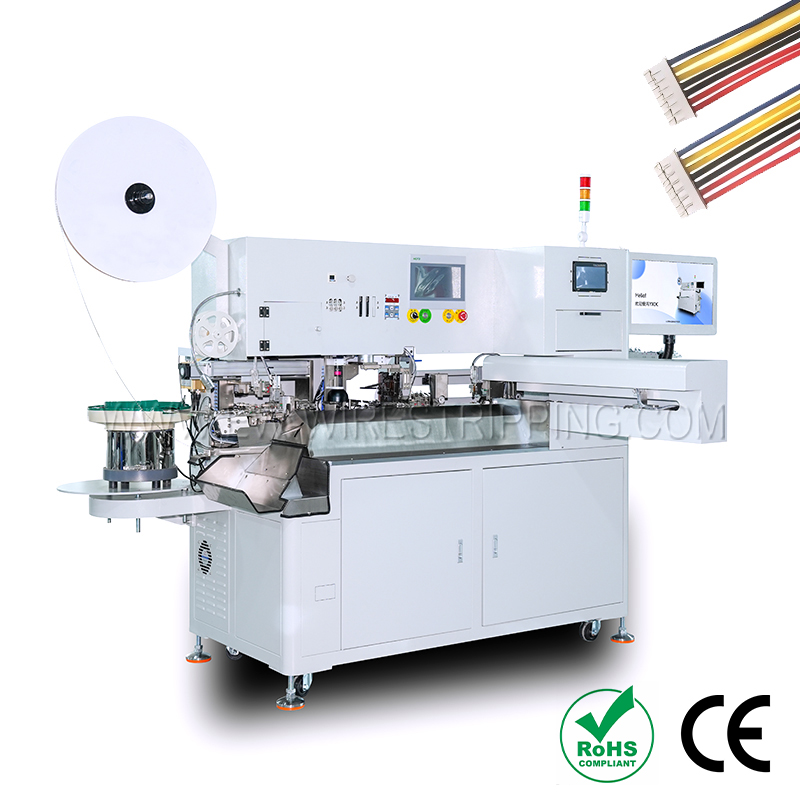

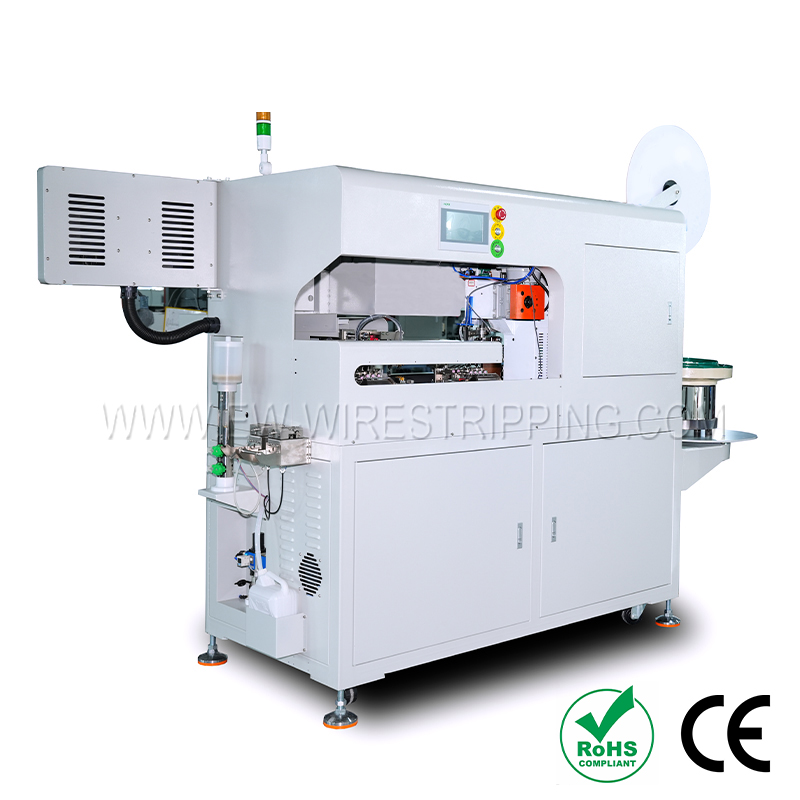

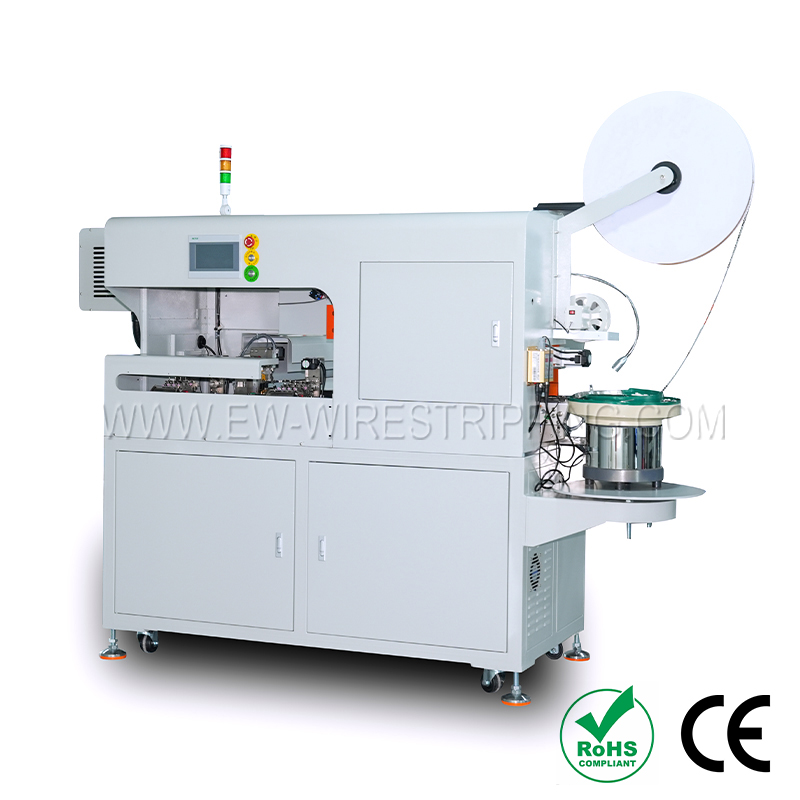

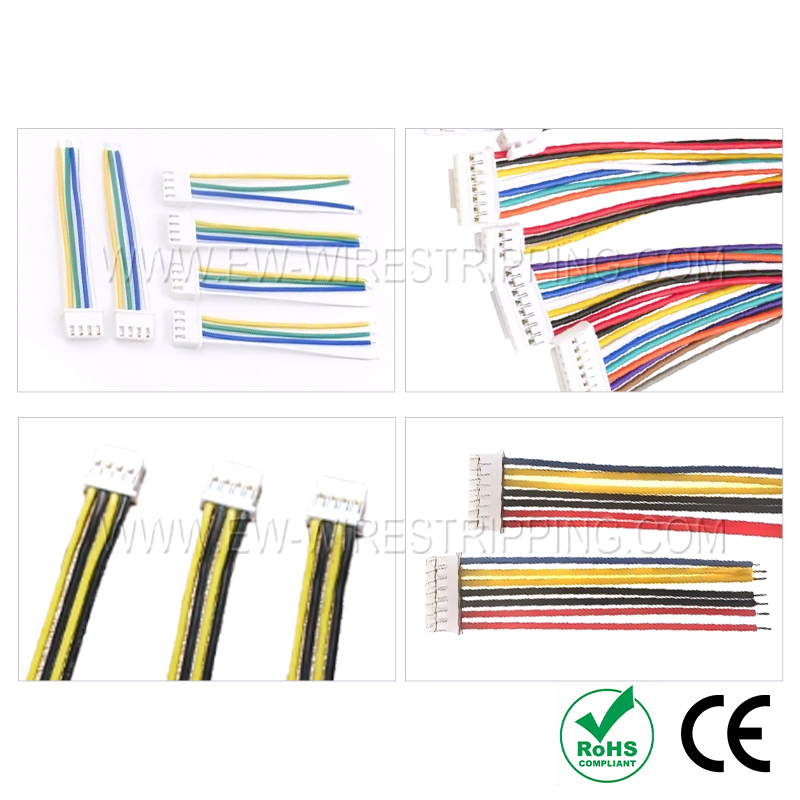

Fully Automatic Housing Insertion & Tinning Machine

Model

EW-9355

Function

A-end: stripping, tinning

B-end: stripping, crimping, CCD detection, shell penetration

Processing range

AWG18-AWG24 or AWG24-AWG30, up to 8 colors of wire can be used simultaneously

Processing length (exposed wire length after shell penetration)

 980mm≧L≧40mm (Please contact the on-duty salesperson for special needs)

Cutting accuracy

0.5mm+cutting length*0.2%

Stripping length

A-end Max10.0mm B-end Max6.0mm

Twisted wire length

3mm-10mm

Crimping capacity

2T

Maximum number of PINs

20 holes per row, maximum 3 rows

Maximum number of colors

8 colors (more colors can be customized)

Shell size

MAX:40*21*18 (center height of the top row of holes in the plastic shell is Max14.5) MIN:5*6*3 spacing 1.0-4.2mm

Maximum operating speed

When the length of the glue line is less than 200, 1.7 seconds per piece (after a finished product is completed, the automatic shell change and loading time is 0.6S, and the specific production capacity will fluctuate and decrease according to different materials and requirements)

Detection device

Terminal appearance CCD, terminal presence, plug shell back pull detection, rubber seat presence, production defect rate can be set

Standard components

8-axis reel-loading universal wire feeding machine

Standard

Single-channel terminal pressure monitoring

Single-lens CCD visual inspection

Power supply

220V/110V,50Hz/60Hz

Maximum Power

4.8KW

Air pressure

0.4-0.6MPa

Machine weight

About 750kg

Dimensions

2200L*1650W*1850H (excluding wire feeding machine and vibration plate, the size of non-standard machine shall be subject to the actual machine)

Loading method

The vibrating plate automatically feeds the plastic shell, the wire feeder automatically feeds the wire, and the motor automatically feeds the tin wire and tin water
