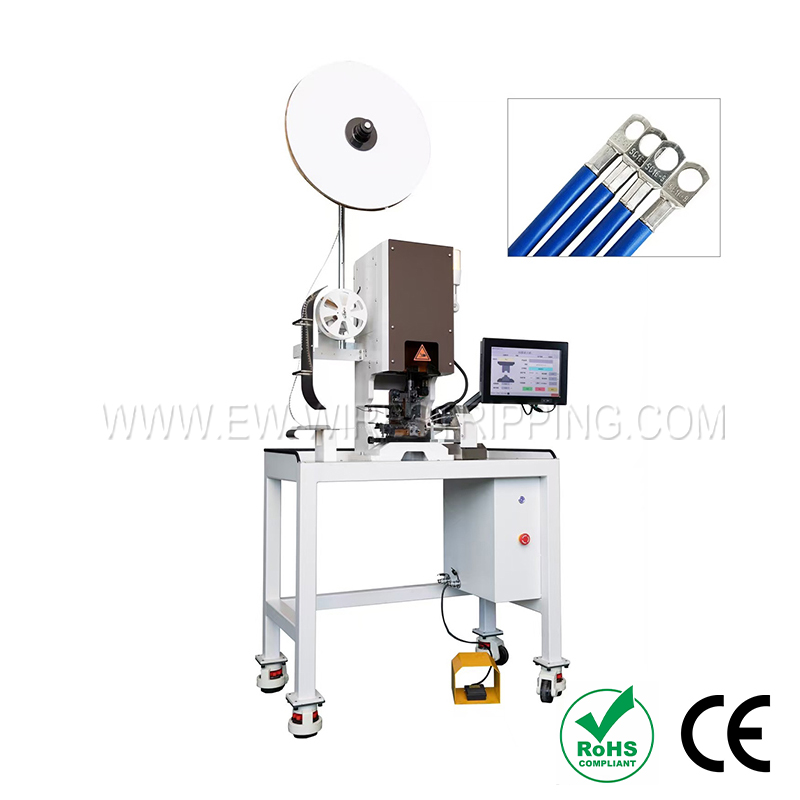

Desktop Servo Crimping Machine with software
Crimp
58
Model：Desktop Servo Crimping Machine with software
Model: EW-9810
Crimp force: 4T/10T(Customizable)
Stroke: 30mm/40mm
Rated Power: 1.5KW
Closed height(Optional): Max. 200mm
Crimp force: 4T/10T(Customizable)
Stroke: 30mm/40mm
Rated Power: 1.5KW
Closed height(Optional): Max. 200mm
Technical Data
|
EW-9810 |
|
|
Crimp force |
4T/10T(Customizable) |
|
Stroke |
30mm/40mm |
|
Rated Power |
1.5KW |
|
Closed height(Optional) |
Max. 200mm |
|
Height Adjustment |
10mm |
|
Power supply |
AC110/220/50/60HZ |
|
Wire Size |
0-10mm²(Customizable) |
|
Program storage |
100 |
|

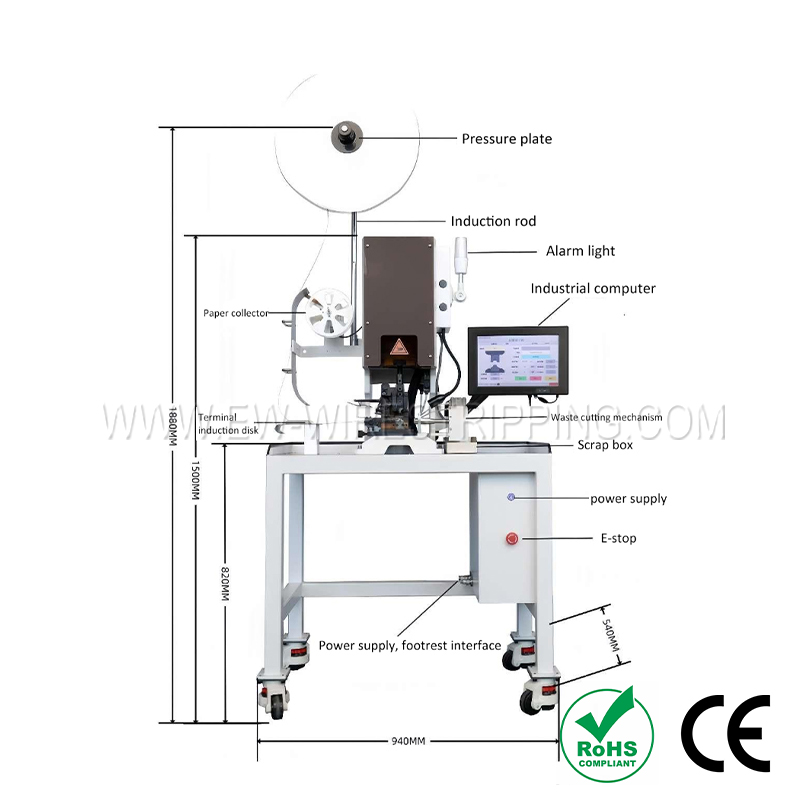

Dimension |
940*540*1880mm |
|
Weight |
180Kg |
|
Foot Pedal |
Yes |
|
Air supply |
0.3-0.5Mpa. |
|
Production efficiency |
1 second/crimp |
Feature

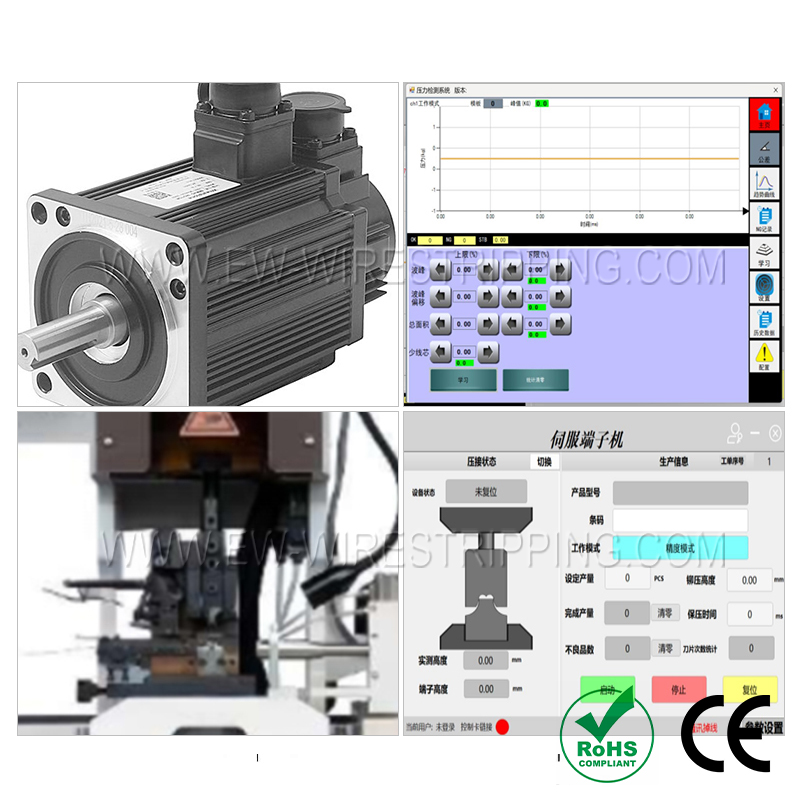

● Next-Gen Servo-Driven Crimping System
Featuring an advanced servo motor control system, automatic height detection with real-time alarms, and ultra-stable precision, our machine ensures consistent, high-quality crimping. The user-friendly touchscreen allows for effortless setup and operation.
● Designed for High-Precision Applications
Specialized for insulated displacement terminals (IDT) and new energy wire harnesses, it detects and alerts for:
1. Unstripped crimps
2. Cut strands
3. Missing terminals/wires
● Smart Waste Management
Equipped with a gravity-free paper collector, automatic tape cutting, and a scrap collection box for seamless operation.
● The Ideal Choice for Demanding Crimping
As the top-performing domestic solution for high-accuracy terminal crimping (e.g., enameled wire IDT), it delivers unmatched quality and cost efficiency.
