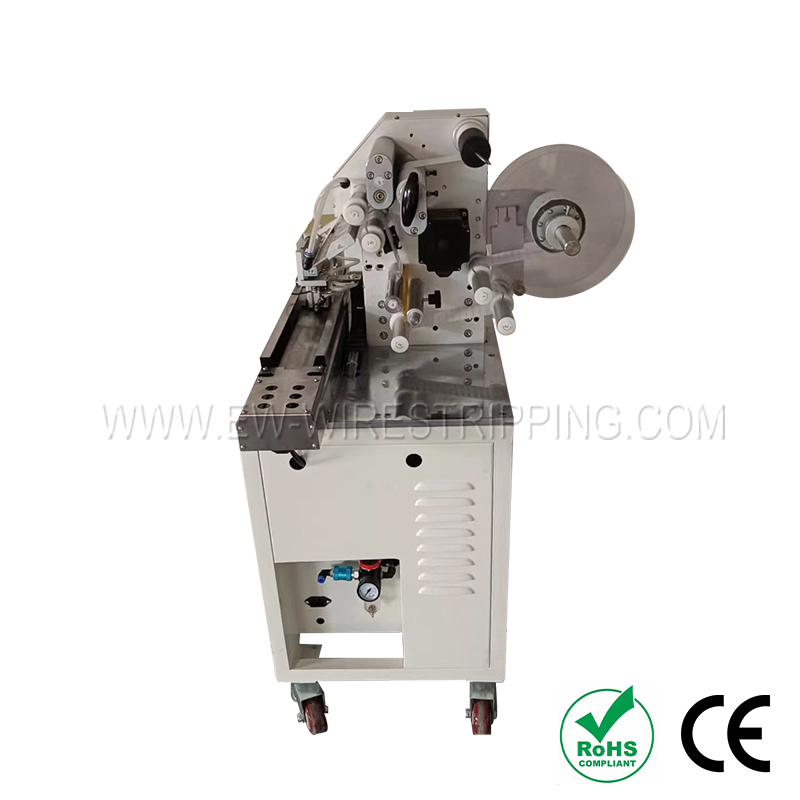

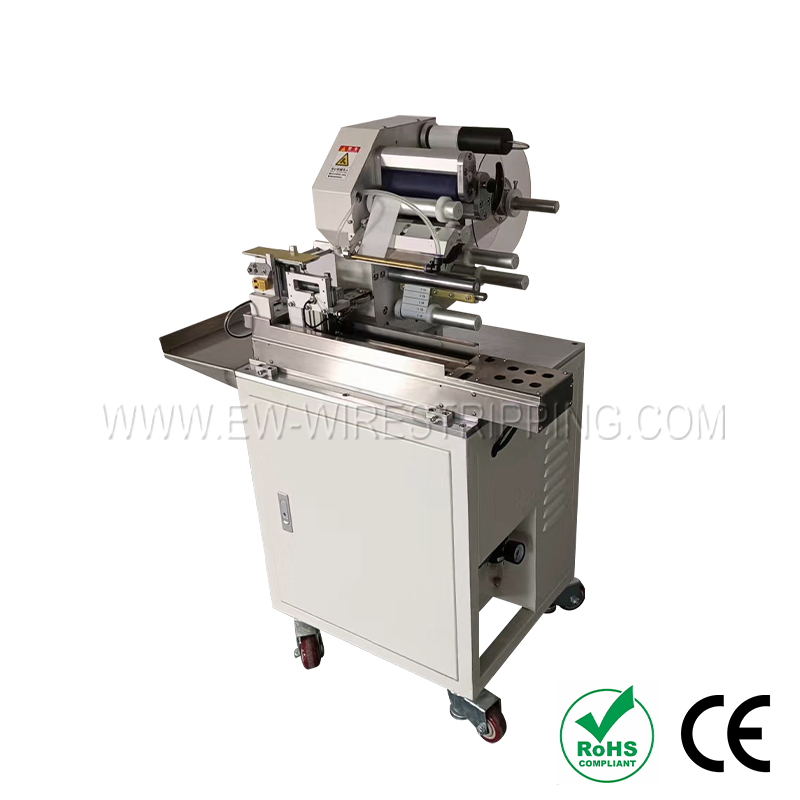

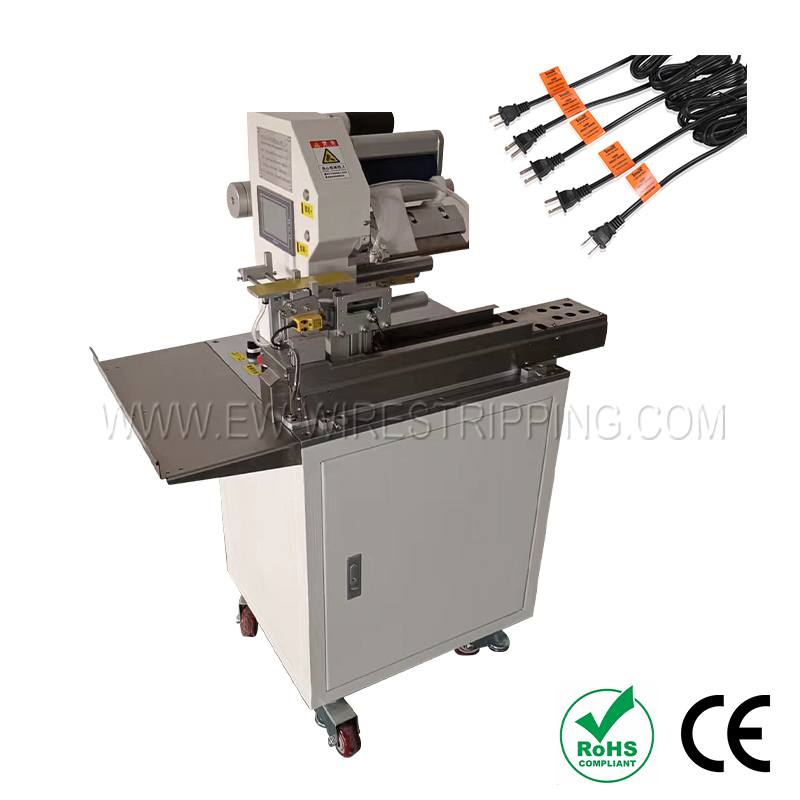

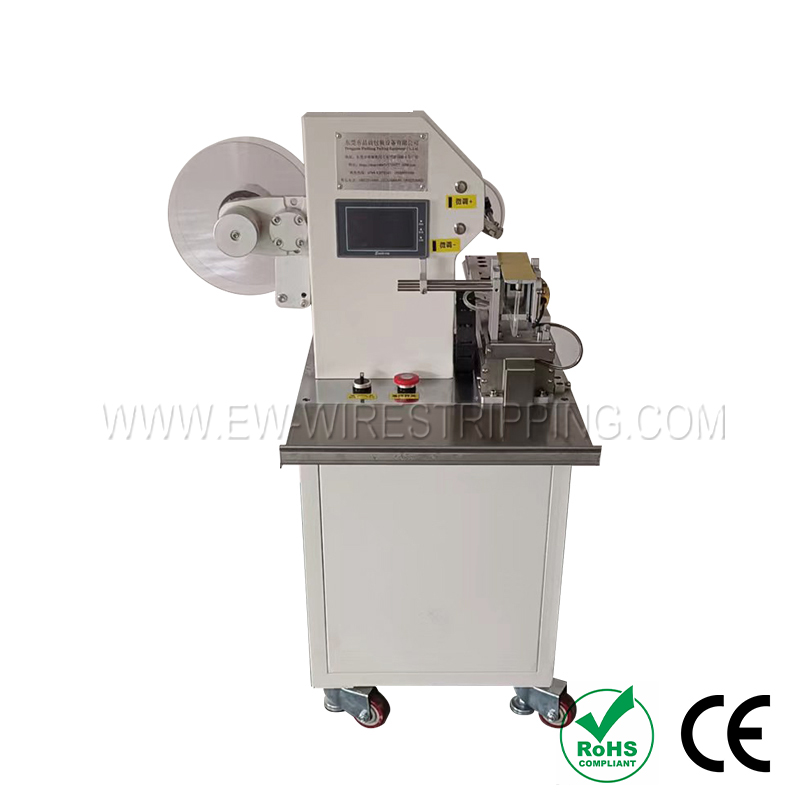

Cable Folded Flag Label Machine
Labeling Machine
87
Model：Cable Folded Flag Label Machine
Model: EW-7770
Labeling accuracy: ±0.2
Labeling speed: 1000-1800 pcs/H;
Product size: All kinds of round wires, flat wires, water pipes and other products are universal, standard 0-3.5,3.0-5.5,4.0-10,7-20MM
Applicable label length: 40 mm -160 mm;
Applicable label width: 5 mm-45mm;
Labeling accuracy: ±0.2
Labeling speed: 1000-1800 pcs/H;
Product size: All kinds of round wires, flat wires, water pipes and other products are universal, standard 0-3.5,3.0-5.5,4.0-10,7-20MM
Applicable label length: 40 mm -160 mm;
Applicable label width: 5 mm-45mm;
Technical Data
|
Model |
EW-7770 |
|
Labeling accuracy |
±0.2 (excluding product and label errors) |
|
Labeling speed |
1000-1800 pcs /H; (Depending on label size and manual operation speed) |
|
Product size |
All kinds of round wires, flat wires, water pipes and other products are universal, standard 0-3.5, 3.0-5. 5, 4.0-10 7-20 MM (customized beyond the range) |
|
Applicable label length |
Standard model: 40 mm ~ 160 mm ; (Customization beyond the scope) |
|
Applicable label width |
5 mm ~ 45 mm ; (Customization beyond the scope) |
|
Positioning ruler |
200 MM (Customization beyond the scope) |
|
Maximum label roll outer diamete |
240 mm Maximum label roll inner diameter: 76 mm |
|
Overall size |
Approx. 580 mm × 680 mm × 1000 mm (length × width × height ); |
|
Machine weight |
about 86 Kg |
|
Power supply |
220V /110V |
|
Power |
0.25 KW |
|
Air Pressure |
4–6 bar |
|
Ambient temperature |
+5-+40℃ Relative humidity : ( 20-90)%RH |
|
Foot Pedal |
YES |
Feature
● Precise positioning of servo motor.
● Germany SICK The label electric eye quickly senses the label gap to complete the label identification.
● Reasonable mechanical structure design ensures smooth and stable labeling; humanized and perfect structure design.
● Easy to use, can be adjusted in a wide range, and can be folded and labeled on wire harness products of different specifications.
● To adjust the machine, you don’t need to twist the screws. Just enter the label size and wire diameter on the display.
● The device has a fine-tuning key for label tolerance, which can be adjusted by pressing it. The device has a memory function and the performance is quite stable.
● Improve production efficiency and solve the problems of slow manual labeling, insufficient accuracy, personnel changes and high labor costs. Precise positioning of servo motor.

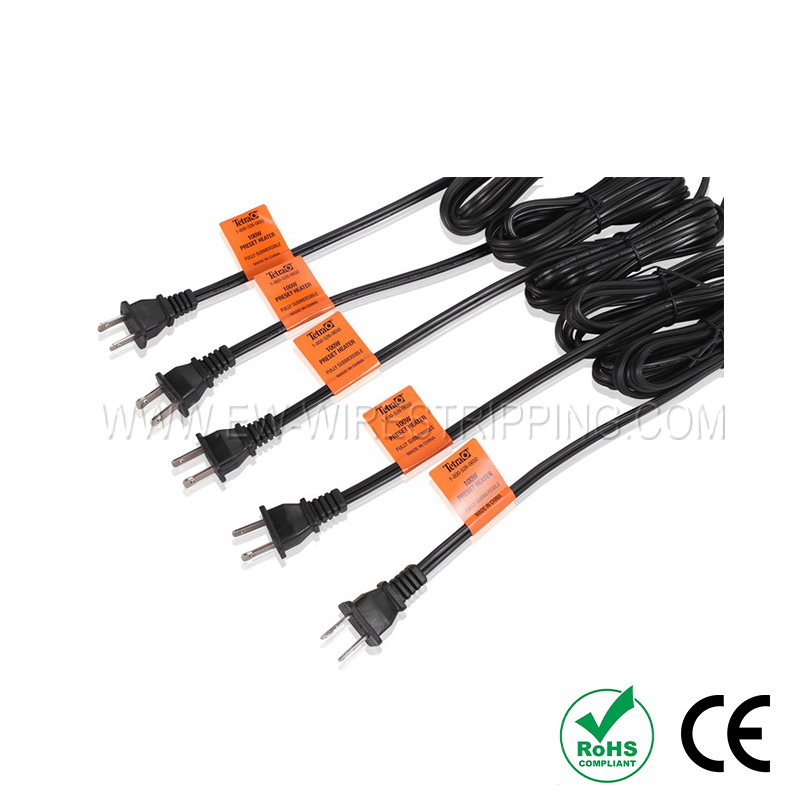

Application Range
