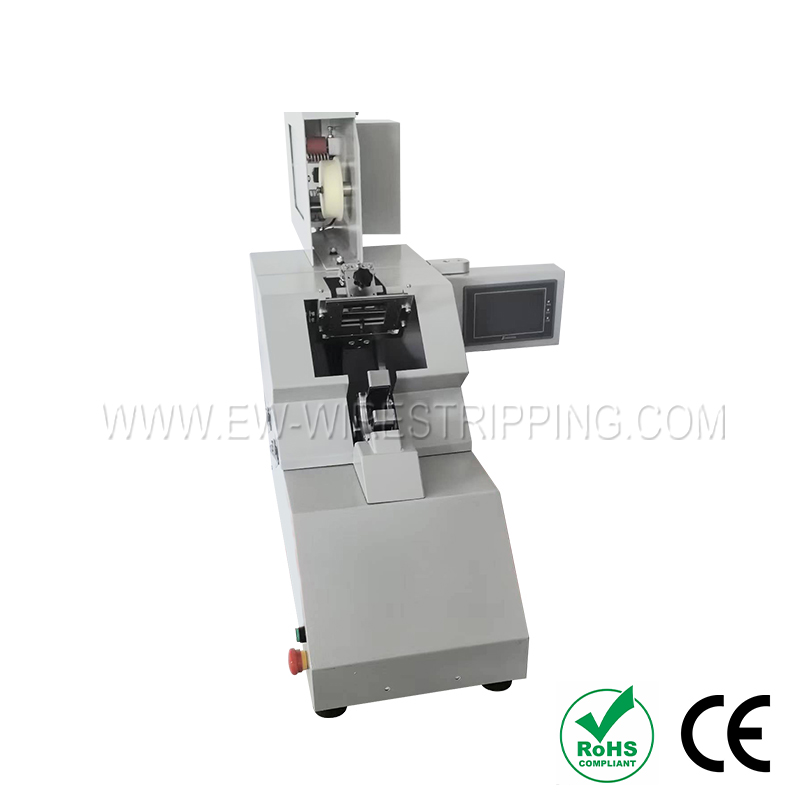

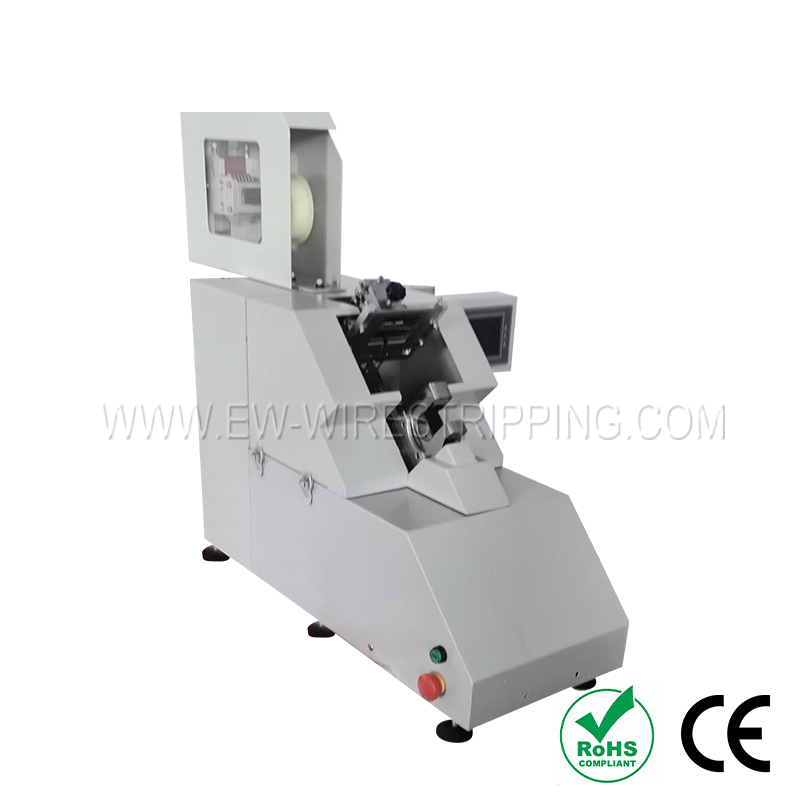

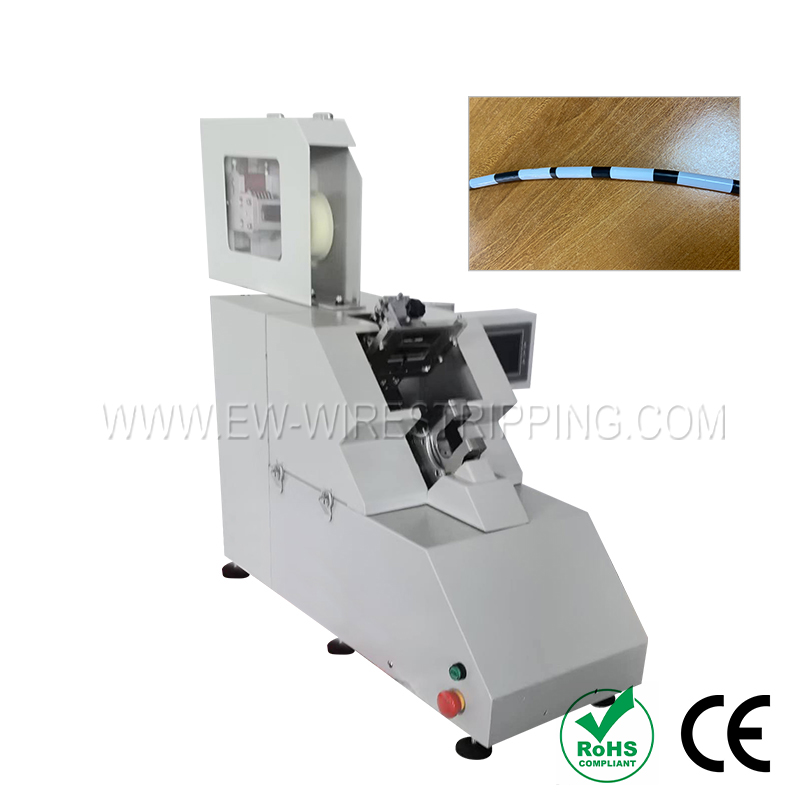

Automatic Tape Wrapping Machine
Labeling Machine
23
Model：Automatic Tape Wrapping Machine
Model:EW-7760
Tape width:10mm-20mm
Tape outer diameter Maximum:130mm
Cutting tape length：20mm -115mm
Wrapping product diameter：5mm-20mm
Vulnerable parts：Paper cutting scissors, paper reel, elastic belt
Starting method：Foot/sensor switch (satisfying the conditions for optical fiber to sense fingers)
Tape replacement：Method New and old tapes are glued end to end
Tape width:10mm-20mm
Tape outer diameter Maximum:130mm
Cutting tape length：20mm -115mm
Wrapping product diameter：5mm-20mm
Vulnerable parts：Paper cutting scissors, paper reel, elastic belt
Starting method：Foot/sensor switch (satisfying the conditions for optical fiber to sense fingers)
Tape replacement：Method New and old tapes are glued end to end
Technical Data
|
Model |
EW-7760 |
|
Tape width |
10mm-20mm (products with high overlap requirements cannot be used universally) |
|
Tape outer diameter Maximum |
130mm |
|
Starting method |
Foot/sensor switch (satisfying the conditions for optical fiber to sense fingers) |
|
Tape material |
Mara glue Masking glue Wall glue Electrical tape High temperature glue Acetate tape Transparent tape, etc. |
|
Cutting tape length |
20mm -115mm |
|
Tape replacement |
Method New and old tapes are glued end to end |
|
Wrapping product diameter |
5mm-20mm |
|
Vulnerable parts |
Paper cutting scissors, paper reel, elastic belt |
|
Machine weight |
29kg |
|
Applicable power supply |
220V/50HZ |
|
Power |
1500W |
|
Dimensions |
80cm*35cm*60cm (length x width x height) |
Feature
● The wire winding labeling machine is a newly developed intelligent automation equipment for the processing industry such as labeling for electric wires, plugs, and power cords.
● It is mainly used for barcode labels, warning labels, instruction labels, and other rolls to be attached to wires, notebooks, desktop computers, printers, digital cameras, camcorders, PDAs, mobile phones, etc.
● Simple operation, easy to use, no pinching.

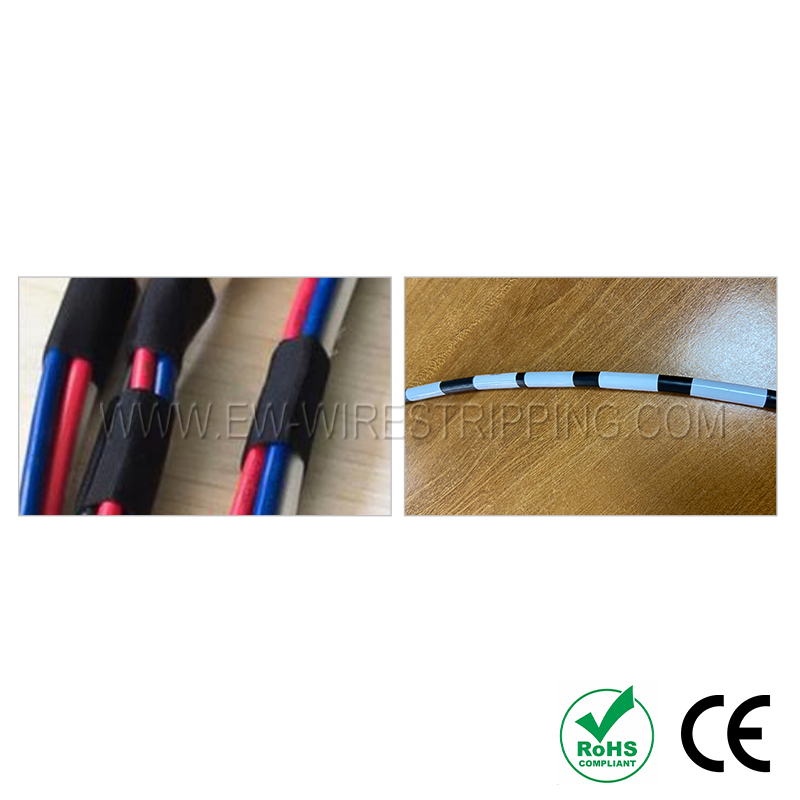

Application Range
More Info
Model：Automatic Tape Wrapping Machine
Model:EW-7760
Tape width:10mm-20mm
Tape outer diameter Maximum:130mm
Cutting tape length：20mm -115mm
Wrapping product diameter：5mm-20mm
Vulnerable parts：Paper cutting scissors, paper reel, elastic belt
Starting method：Foot/sensor switch (satisfying the conditions for optical fiber to sense fingers)
Tape replacement：Method New and old tapes are glued end to end
Tape width:10mm-20mm
Tape outer diameter Maximum:130mm
Cutting tape length：20mm -115mm
Wrapping product diameter：5mm-20mm
Vulnerable parts：Paper cutting scissors, paper reel, elastic belt
Starting method：Foot/sensor switch (satisfying the conditions for optical fiber to sense fingers)
Tape replacement：Method New and old tapes are glued end to end
