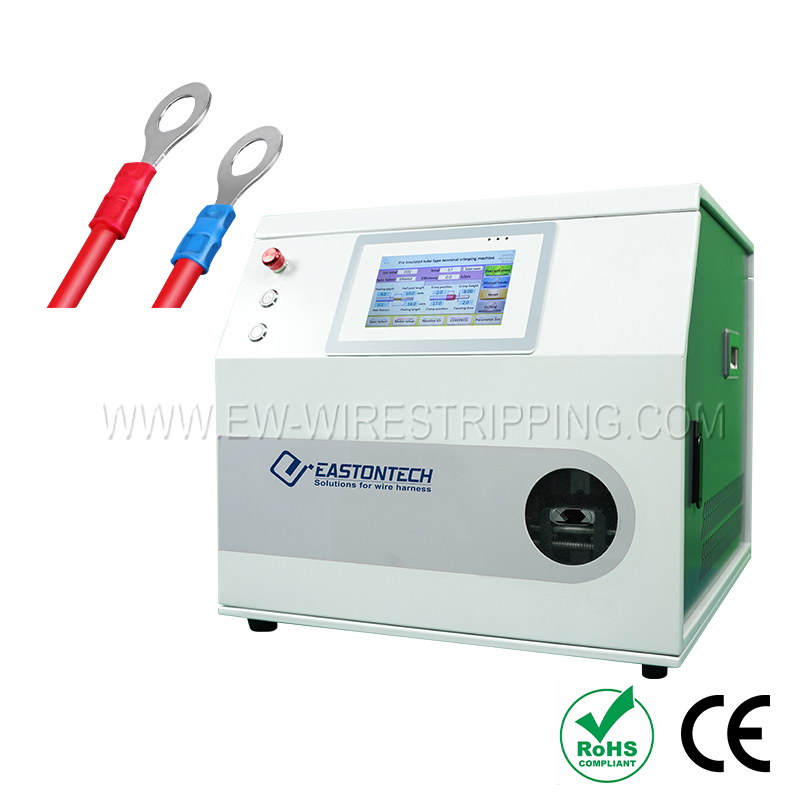

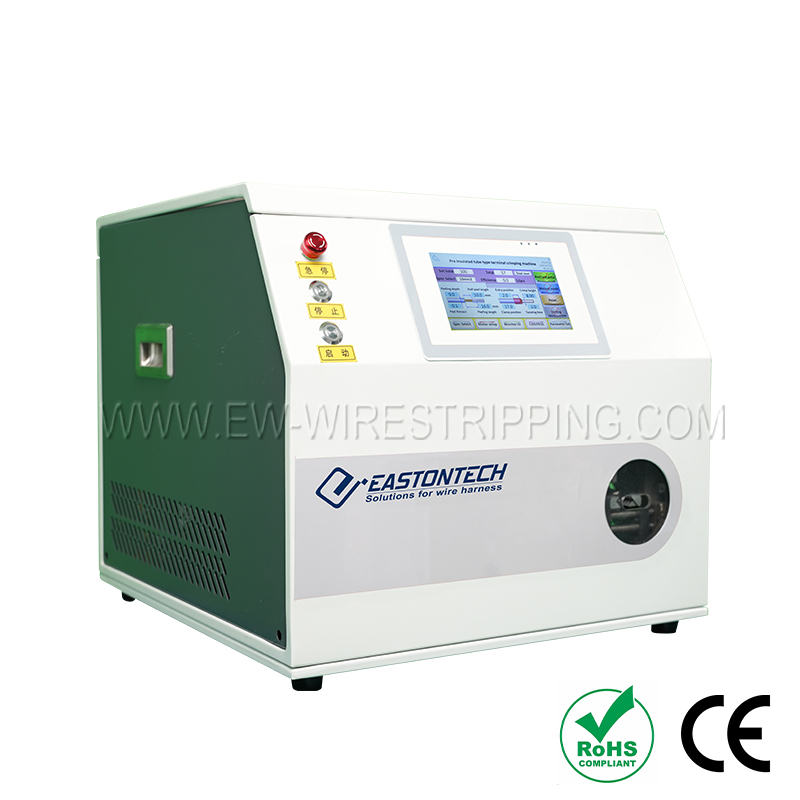

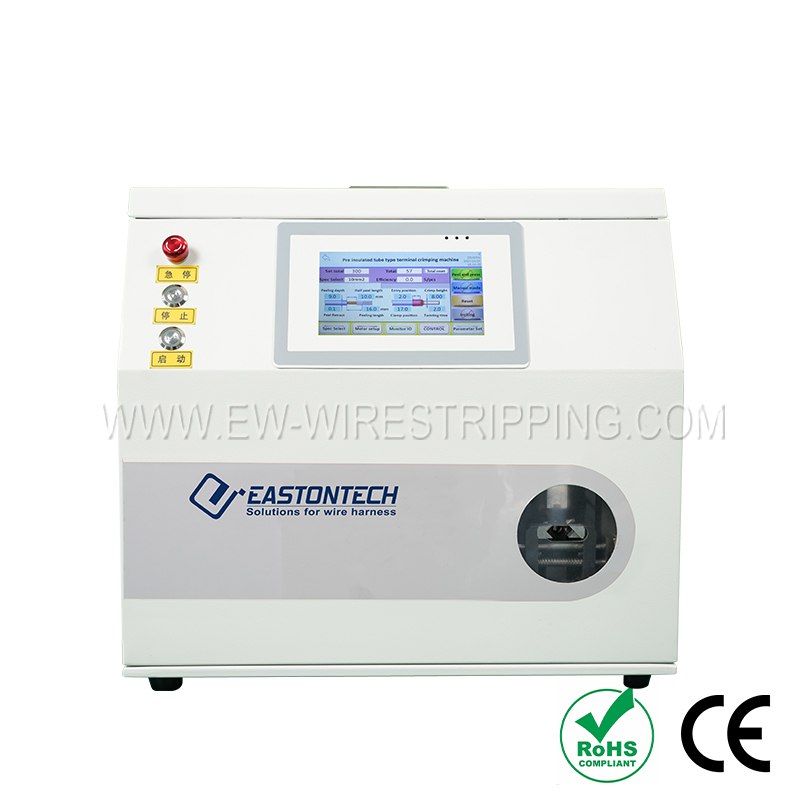

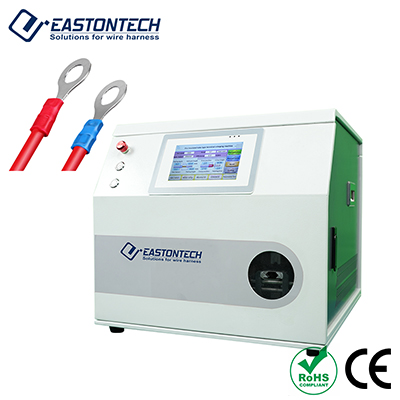

Pre insulated terminal machine
Crimp
35
Model：Pre insulated terminal machine
Wire diameter:0.5-6mm
Machining lengthz:The outer skin length is about 40mm
Crimping capacity:2T
Processing capacity:About 3 seconds per cycle
Machining lengthz:The outer skin length is about 40mm
Crimping capacity:2T
Processing capacity:About 3 seconds per cycle
Technical Data
|
Model |
EW-5580 |
|
Applicable core wire diameter |
0.5-6mm |
|
About 3 seconds per cycle(The speed varies depending on the product) |
|
|
Machining length |
The outer skin length is about 40mm |
|
Stripping length |
5-12mm |
|
Knife value error |
Precision lead screw 0.01 |
|
Crimping capacity |
2T |
|
Detecting device |
Rotation in place detection, missing terminal detection |
|
Auxiliary device |
Rotating peeling |
|
Machine Dimensions |
552*530*491mm |
|
Machine Weight |
55kg |
Feature
● Sharing OTUTs of the same model does not require adjustment, greatly saving model switching time and increasing production flexibility, allowing you to quickly respond to diverse production needs.
● Adopting a 7-inch high-definition color operation screen, the interface is simple and easy to understand, with a visual parameter setting and debugging interface, allowing operators to quickly get started without complex training.
● Avoid flying copper with twisted wire mechanism.
● Servo motor crimping is more precise.
● Single station for peeling, twisting, and crimping can be completed in one go.

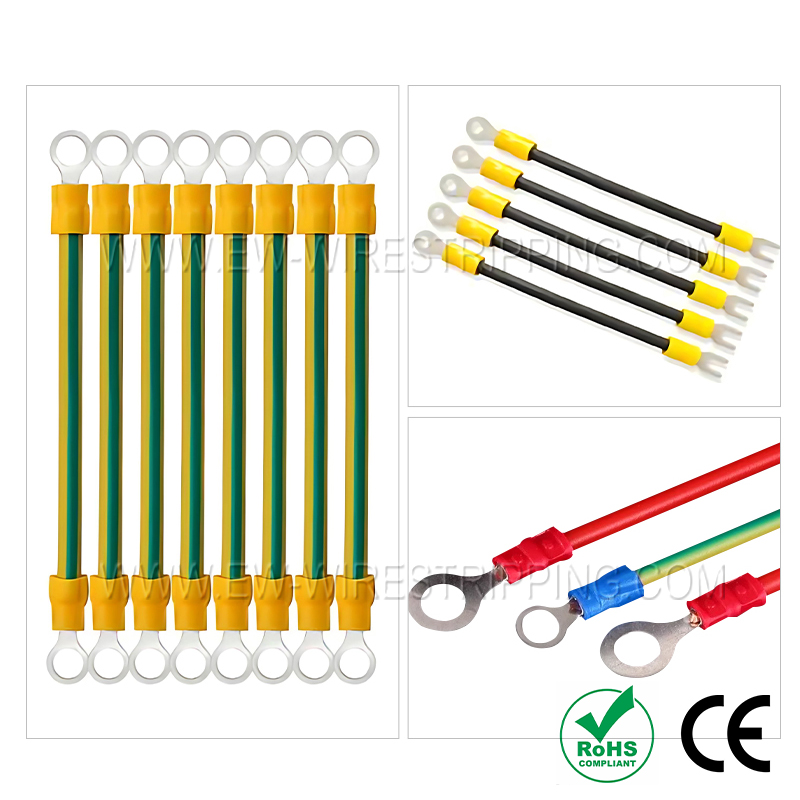

Application Range
