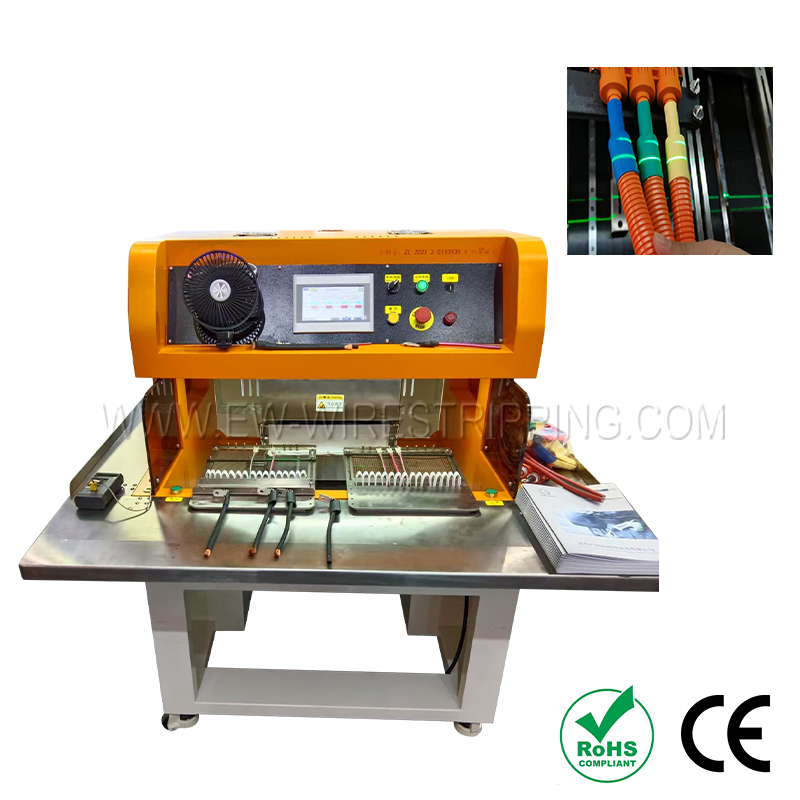

U-type heat shrinker for new energy harness
Heat Shrinkage
48
Model：U-type heat shrinker for new energy harness
Model EW-19M
Overall machine size 880mm*980mm*1450mm
Current 12A
Cavity heating mode Vortex hot air circulation
Temperature control mode PID
Overall machine size 880mm*980mm*1450mm
Current 12A
Cavity heating mode Vortex hot air circulation
Temperature control mode PID
Technical Data
|
Model |
EW-19M |
|
Overall machine size |
880mm*980mm*1450mm |
|
Current |
12A |
|
Cavity heating mode |
Vortex hot air circulation |
|
Temperature control mode |
PID |
|
Voltage |
AC380V 50Hz |
|
Machine power |
5.5KW |
|
Heating temperature |
Max 320℃ |
|
Application of heat shrinkable tube |
PVC, PET, PVDF, double-wall heat shrink tubing containing glue |
|
Work efficiency |
3S-20S/PCS |
|
Working |
Servo double-station action |
Feature
•Vortex wind flow
It can automatically penetrate the inner and outer walls of the heat shrink tube to complete heat shrinkage within a very short safe heat shrink time, evenly overflow glue, and does not damage the corrugated tube.
•Laser alignment strip
It enables employees to more intuitively and conveniently locate the position of the heat shrink tube when swivel, and the fixtures at both ends are also equipped with adjustable limit anti-scalding fixture strips to ensure the position accuracy of the heat shrink tube after heat shrinkage.
•Compatible with various wiring harness fixtures
Rapid positioning heat shrink can be achieved by designing different positioning fixtures

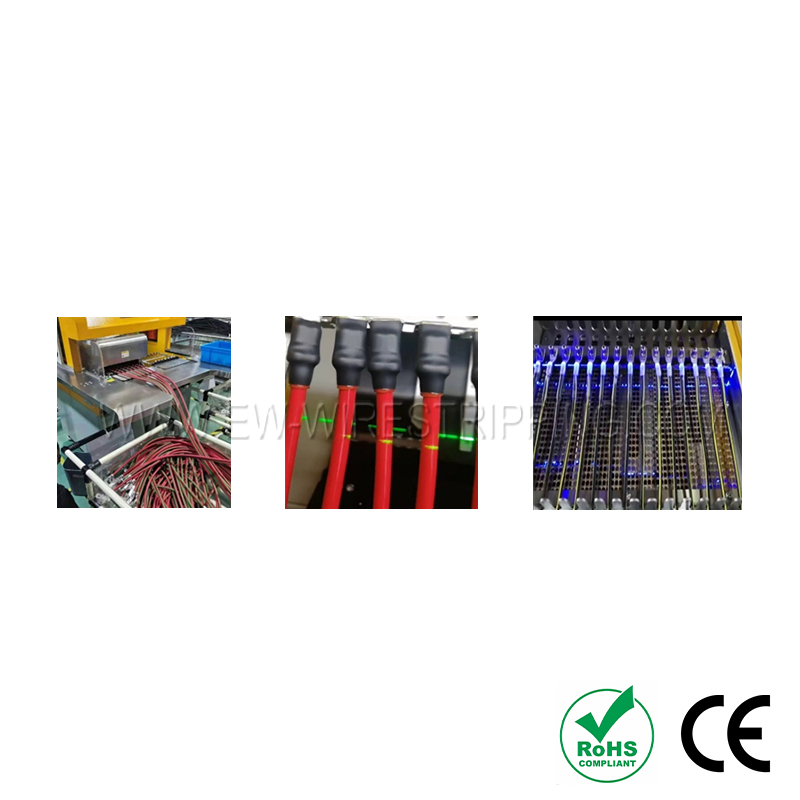

Application Range
