Coaxial cable Terminal crimping &Tinning Machine
Cut Strip Terminate& Solder
38
Model：Coaxial cable Terminal crimping &Tinning Machine
Model: EW-9315
Weight:1200kg
Wire range:Wire diameter 0.64-1.78mm coaxial line
Equipment utilization rate:≥95%
Power:3300W
Weight:1200kg
Wire range:Wire diameter 0.64-1.78mm coaxial line
Equipment utilization rate:≥95%
Power:3300W
Technical Data
|
Model |
EW-9315 |
|
Weight |
1200kg |
|
Wire range |
Wire diameter 0.64-1.78mm coaxial line |
|
End range |
Meet IPEX, Xuande, Kangshuo, Kexincheng, Caimei and other series of terminals |
|
Power |
3300W |
|
Power supply |
AC220V±10V |
|
Total length of cutting line |
1-15m35mm-800mm (35mm product tinned end stripping size does not exceed 5mm)m |
|
Finished product yield |
≥99.7% (Data based on Shenyu brand wire and IPEX |
|
Equipment utilization rate |
≥95% |
|
Electrical and visual inspection |
High voltage short circuit test, size detection, position positioning |
|
Processing accuracy |
Stripping tolerance at both ends ±0.1mm Total length tolerance ±0.5mm |
|
Processing efficiency |
900-1200PCS/H (depending on the stripping length) |
|
Working pressure |
Not less than 0.5Mpa |
|
Production process |
Single end terminal, single end tinning (double tinning furnace tinning) |
|
robot |
Adopt Japanese EPSON four-axis robot |
|
Operating temperature range |
15℃ - 30℃ |
Feature
● This machine is designed for customers who have high requirements for tinning. It uses a double tin furnace and two tinning operations. It has a significant quality improvement effect on some wires with loose braids or copper foils that are easy to get large ends when tinned.
● Electrical test plus visual detection：High voltage short circuit conduction test,dimension detection,position positioning.
● Robot：Adopt Japanese EPSON four-axis robot.

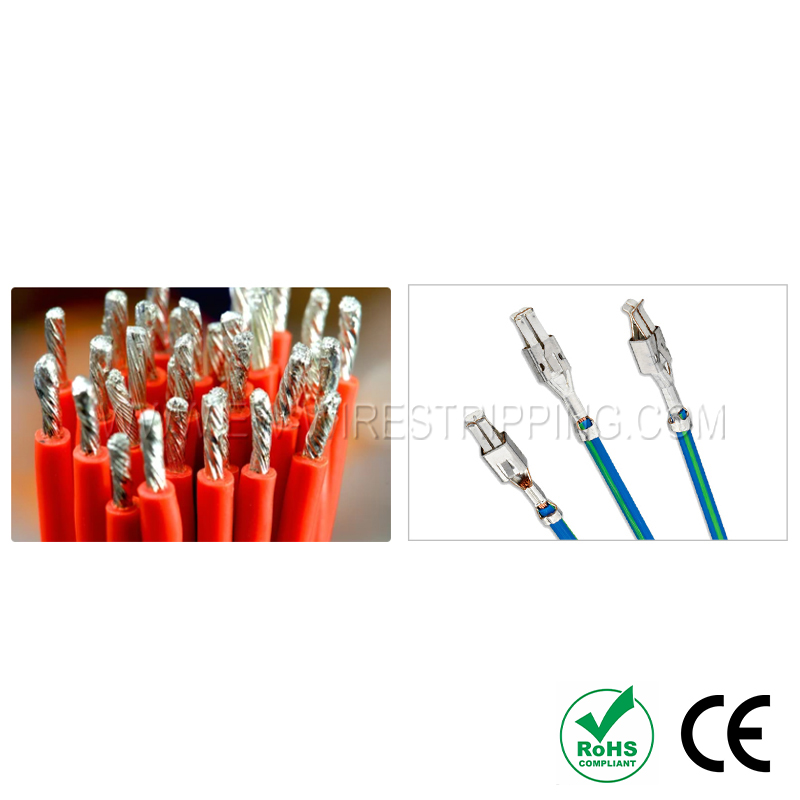

Application Range
