Flat Ribbon Cable Stripping Crimping and Tin Soldering Machine
Cut Strip Terminate& Solder
35

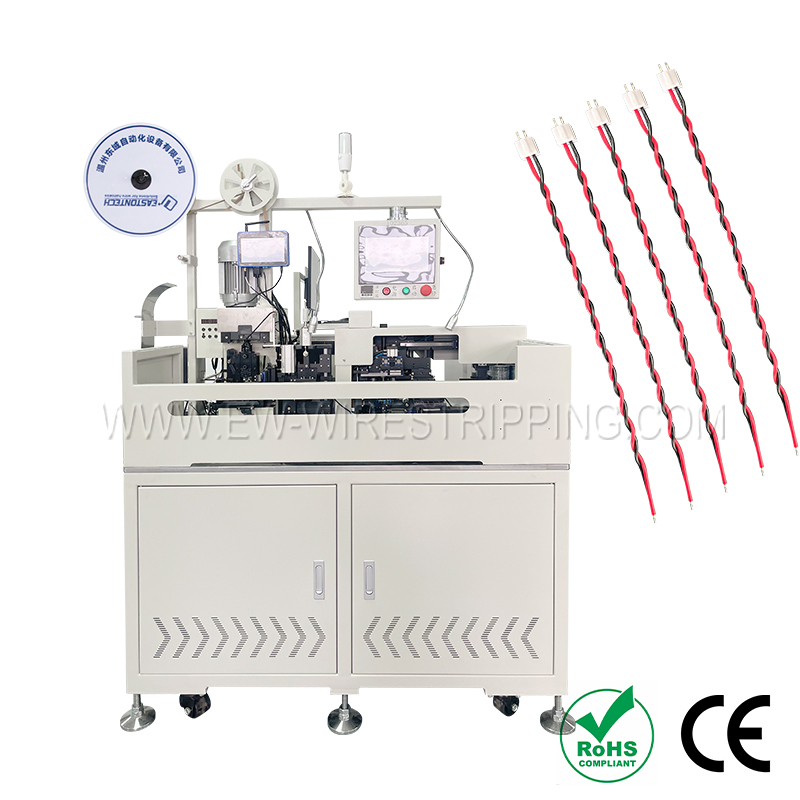

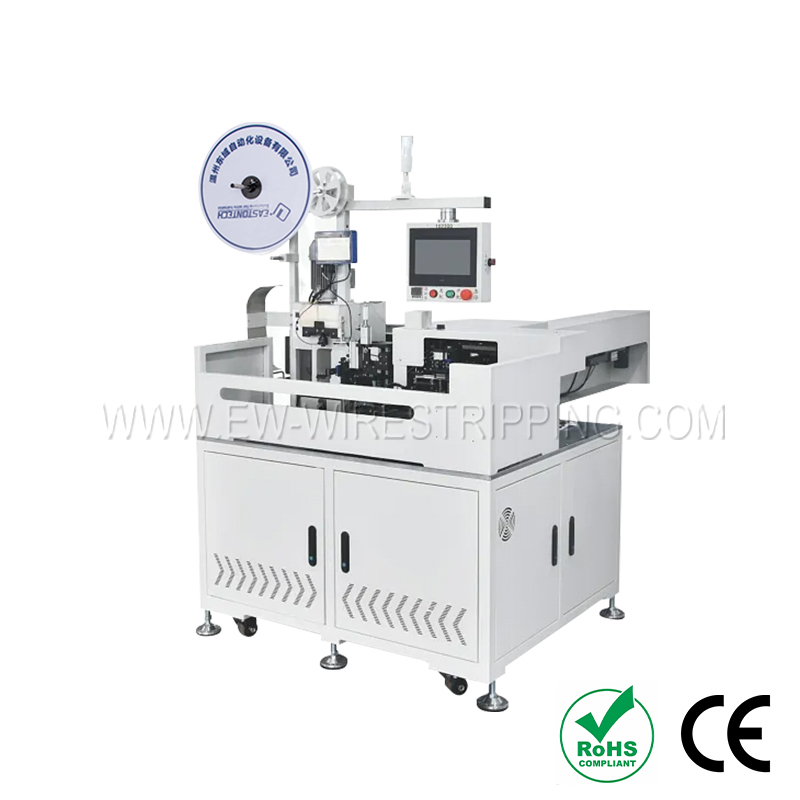

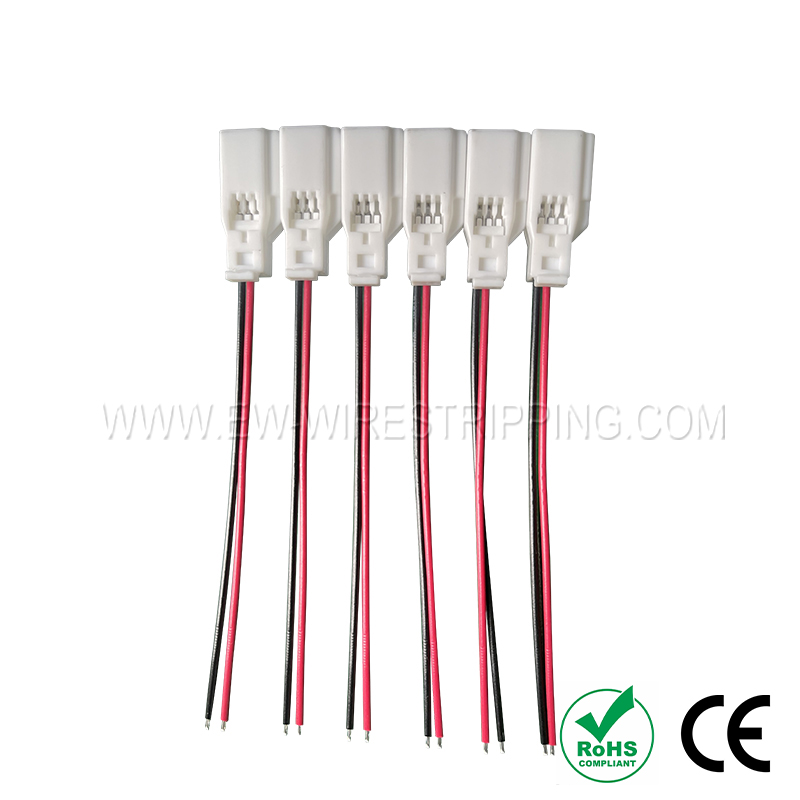

Model：Flat Ribbon Cable Stripping Crimping and Tin Soldering Machine
Model:EW-9325
Stripping length(Front Side):0-10mm
Stripping length(Rear Side):0-5mm
Housing sizes:1.0/1.25/1.5/2.0/2.5
Maxi. wiring P number:2-12P /2-14P
Stripping length(Front Side):0-10mm
Stripping length(Rear Side):0-5mm
Housing sizes:1.0/1.25/1.5/2.0/2.5
Maxi. wiring P number:2-12P /2-14P
Technical Data
|
Model |
EW-9325 |
|
Applicable wire range |
AWG18-AWG28 |
|
Cutting length |
30-1000mm(can be customized to 18mm) |
|
Stripping length(Front Side) |
0-10mm;twisting 2-6mm; tinning |
|
Stripping length(Rear Side) |
0-5mm;crimping and housing inserting |
|
Housing sizes |
1.0/1.25/1.5/2.0/2.5 |
|
Max. Wire Pins |
2-12P electric wires/2-14P flat wires |
|
Twisting number |
5 pcs at the same time |
|
Productivity |
400-500pcs/hour |
|
Air pressure |
0.5-0.7Mpa |
|
Power |
220V/110V/50HZ/60HZ |
|
Rating |
40AL |
|
Weight |
550Kg |
|
Dimension |
2135*1250*1850mm |

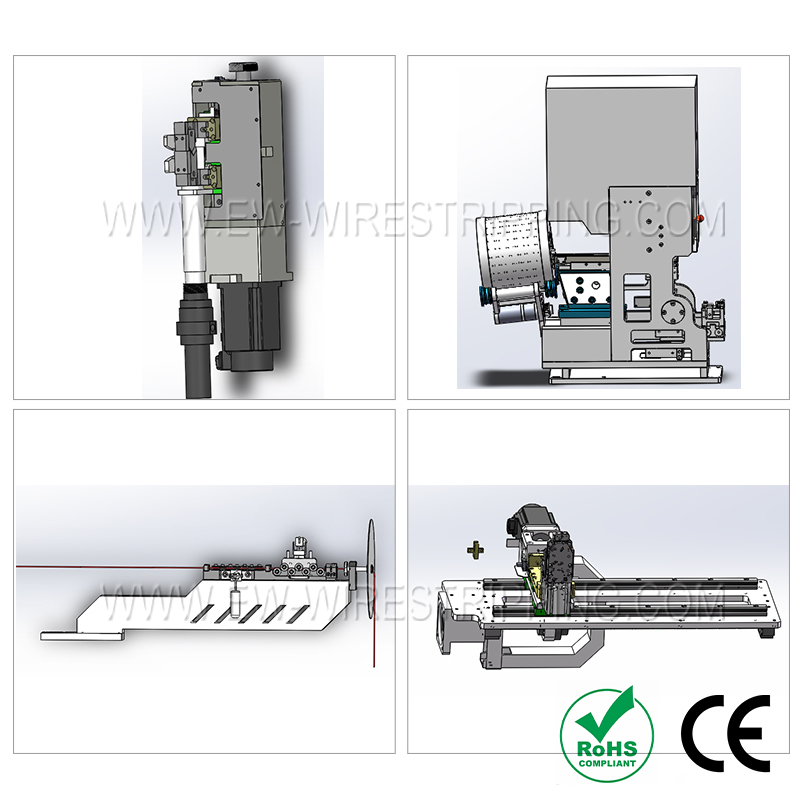

Feature
1.Model EW-9325 flat ribbon cable stripping crimping and tin soldering machine is suitable for AWG18-AWG28 wires.
2.All processes are completed automatically, saving production costs for customers;
3.The crimping device adopts an eccentric shaft and cam structure, the terminal is evenly stressed, and the crimping effect is good;
4.The servo motor is used to control cutting, stripping, crimping positioning, plastic shell delivery, and plastic shell insertion, with precise positioning;
5.Touch screen operation, simple parameter setting, only simple training is required.
6.One person operates several devices, saving labor costs.
