Fully automatic wire cutting stripping machine with extra-long head and tail automatic wire winding binding
Wind & Nylon Tying
75
Model：Fully automatic wire cutting stripping machine with extra-long head and tail automatic wire winding binding
Model:EW-2375
Cutting length:
3.2-16meters(Customized according to samples)
Circle inner diameter:150-160mm
Circle outer diameter:≤220mm
Coil height:≤50mm
Cutting length:
3.2-16meters(Customized according to samples)
Circle inner diameter:150-160mm
Circle outer diameter:≤220mm
Coil height:≤50mm
Technical Data
|
Model |
EW-2375 |
|
Conductor cross-section |
4mm(Customized according to samples) |
|
Core wire stripping |
2 - 11 cores |
|
Cutting length |
3.2-16meters(Customized according to samples) |
|
Stripping length |
Cable jacket- Full strip: 1 - 100 mm |
|
winding type |
Double tie in circle, same side for head and tail |
|
Circle inner diameter |
150-160mm |
|
Circle outer diameter |
≤220mm |
|
Coil height |
≤50mm (manual cylinder adjustment) |
|
Inner and outer circle thickness |
≤65mm |
|
Head length |
300-1000mm from tie position (tolerance ±200mm) |
|
Tail length |
300-1000mm from tie position (tolerance ±200mm) |
|
Uninterrupted operation production efficiency 1 |
120PCS/H (3.2m) |
|
Uninterrupted operation production efficiency 2 |
80PCS/H (16m) |
|
Applicable cable ties |
Rubber-coated iron core ≤5KG/roll |
|
Applicable air pressure |
0.6-0.7MPa |
|
Applicable power supply: |
European standard 220V/50Hz |
|
Machine power |
6.5KW/H |
|

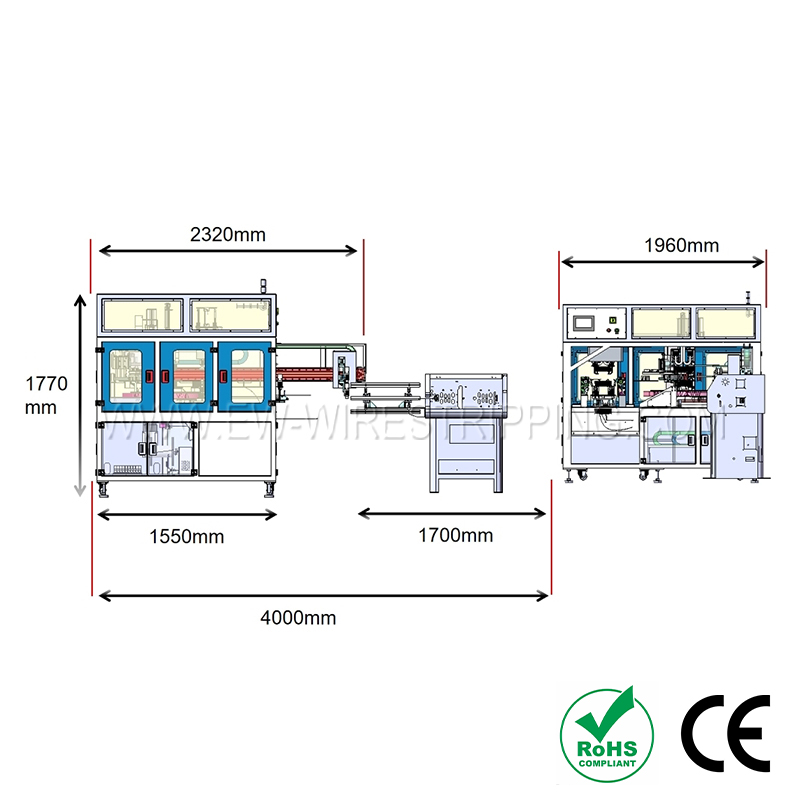

Machine size |
About 2325L*1960W*1770Hmm |
|
Pedal Start |
N/A |
Feature
●The product is positioned for high-quality wire manufacturers, suitable for wire harnesses/hoses/ropes.
●High performance, the maximum speed can reach 270 wires/hour (3 meters of wire).
●Connected with the computer wire cutting and stripping machine, it can automatically wind and tie the wires in one, saving labor.
●The finished product after winding is beautiful, generous, neat, easy to pack, and meets the high quality requirements of customers.
●Simple and easy to operate, debug and maintain.
●Humanized design greatly reduces employee fatigue and improves work efficiency.

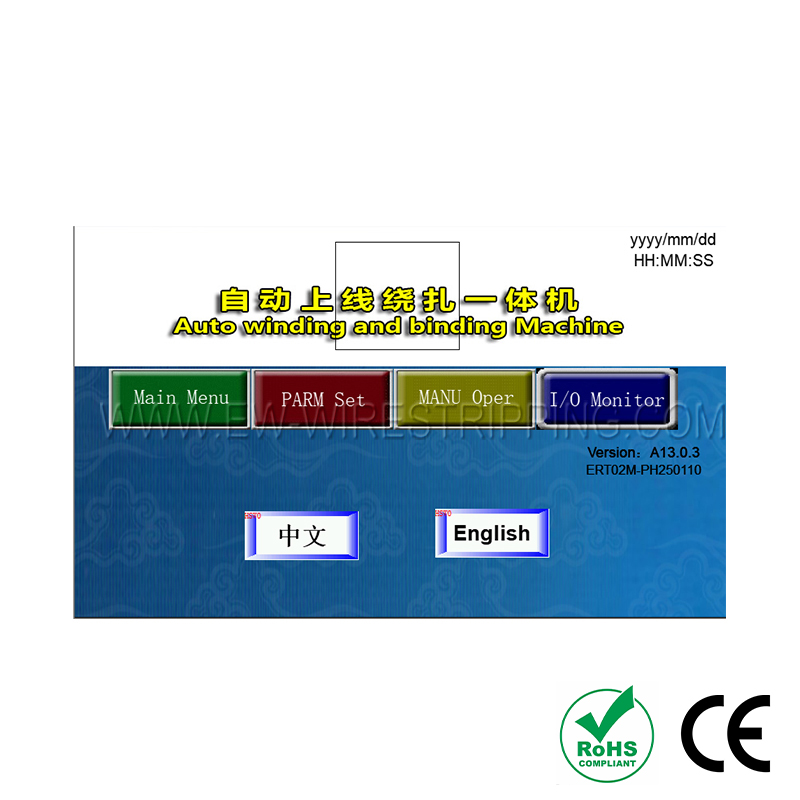

●This machine adopts programmable logic controller (PLC) control, human-machine interface control, and fully automatic and uninterrupted operation.
