Model |
EW-7725 |
|
Applicable Product Sizes |
Sizes: 1-3.5mm, 2.0-5.5mm, 4.0-10mm Suitable for various round wires, flat wires, water pipes, etc. |
|
Applicable Label length |
20mm-100mm(Other length can be customized ) |
|
Applicable Label Size Width |
5mm-45mm (Other width can be customized ) |
|
Standard Positioning Ruler |
15-200mm |
|
Maximum Label Roll Outer Diameter |
200mm |
|
Labeling Accuracy |
±0.2mm |
|
Labeling Speed |
800-1800 pcs/hour (depending on label size and operator efficiency) |
|
Dimensions |
655mm × 811mm × 1175mm |
|
Weight |
130kg |
|
Power Supply |
220V / 50Hz; Power: 0.25KW |
|
Air Pressure |
0.5-0.7Mpa |
|
Operating Temperature |
5°C to +40°C |
|
Relative Humidity |
20%-90% RH |
|
Pedal Start |
Yes |

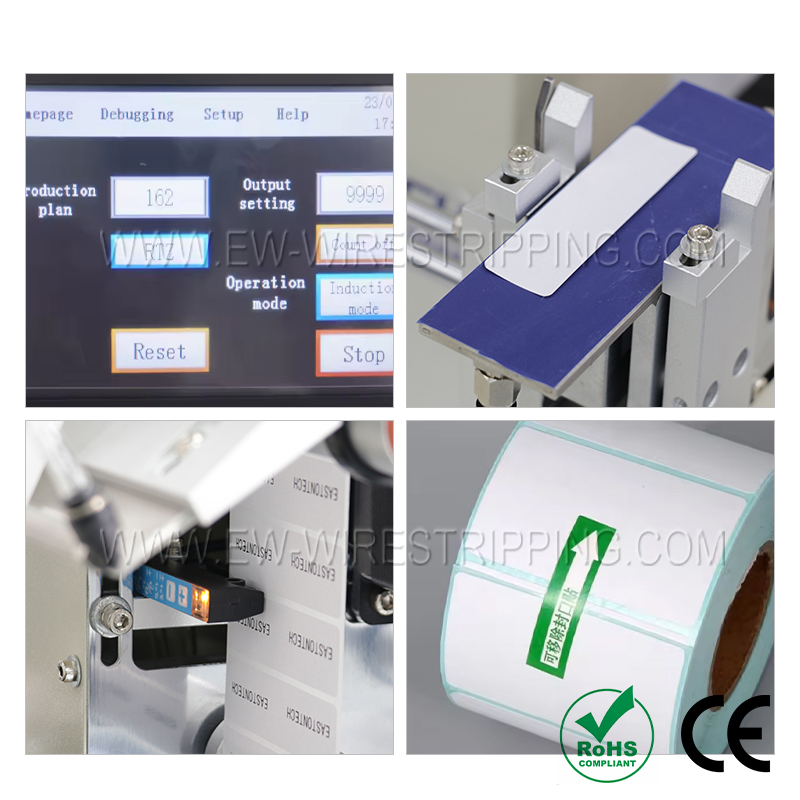

● Servo motor precise positioning.
● Germany SICK label electric eye fast induction label gap to complete the completion of the label to complete the identification.
● Reasonable mechanical structure design to ensure smooth and stable labeling; humane and perfect structural design.

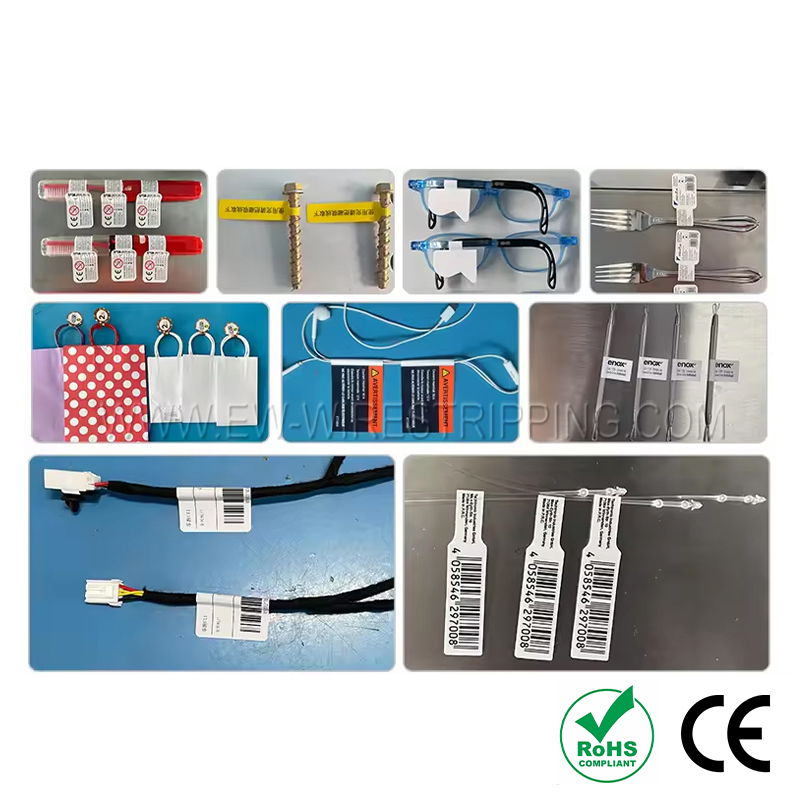

● Easy to apply, can be adjusted in a wide range, to achieve different specifications of wire products on the roll labeling.
● Adjust the machine without turning the screws, directly in the display input label size, wire diameter size can be adjusted.
● The equipment has memory group can, performance is quite stable.
● Improve production efficiency, to solve the manual labeling slow, lack of accuracy, personnel changes and labor costs and other advantages.
