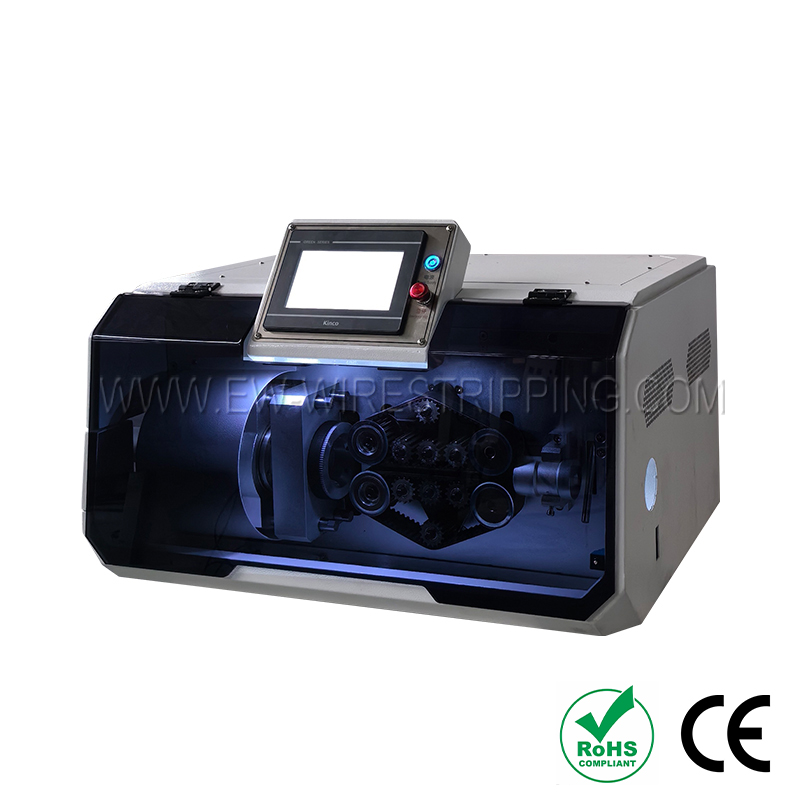

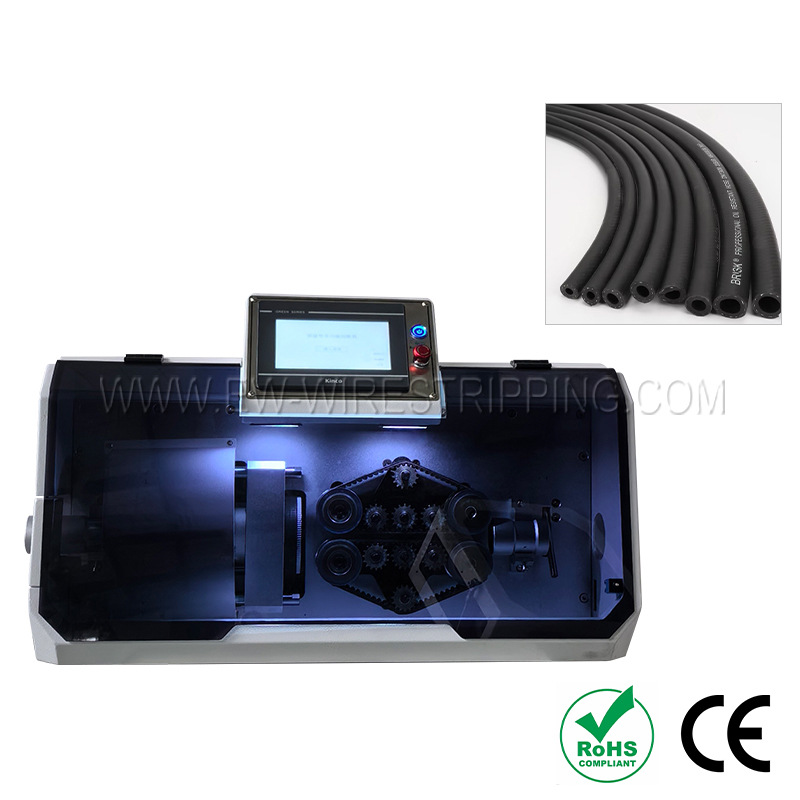

Full Electric Rotary Pipe Cutting Machine (OD10-50mm)
Cut
73
Model：Full Electric Rotary Pipe Cutting Machine (OD10-50mm)
Model:EW-1370
Cutting Diameter:10-50mm
Length Tolerance:L × 0.005 (L = cutting length)
Cutting Speed:20-100 pieces per minute (depending on length)

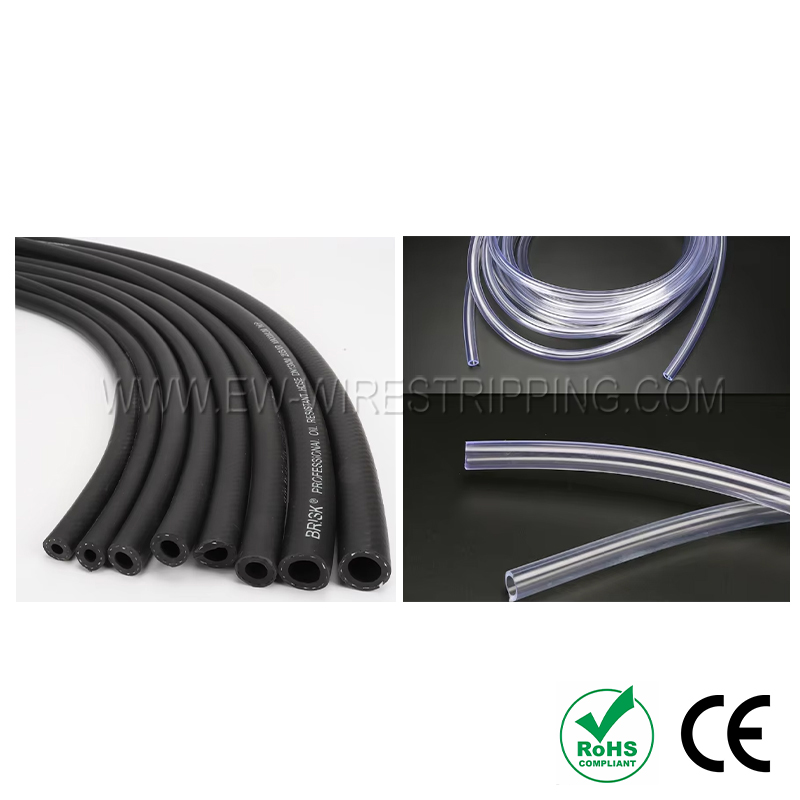

Applicable Materials:Honeycomb tubes, paper tubes, rigid PVC pipes, and similar tubing with wall thickness less than 5mm; fixed-length cutting
Cutting Diameter:10-50mm
Length Tolerance:L × 0.005 (L = cutting length)
Cutting Speed:20-100 pieces per minute (depending on length)
Applicable Materials:Honeycomb tubes, paper tubes, rigid PVC pipes, and similar tubing with wall thickness less than 5mm; fixed-length cutting
Technical Data
|
Model |
EW-1370 |
|
Cutting Diameter |
10-50mm |
|
Length Tolerance |
L × 0.005 (L = cutting length) |
|
Cutting Speed |
20-100 pieces per minute (depending on length) |
|
Applicable Materials |
Honeycomb tubes, paper tubes, rigid PVC pipes, and similar tubing with wall thickness less than 5mm; fixed-length cutting |
|
Control System |
Motion control board with HMI (Human-Machine Interface) |
|
Cutting Method |
Rotary cutting along the circumference (surface of the material) |
|
Cutter Power |
400W |
|
Rotary Motor |
Servo motor |
|
Feeding Method |
Belt conveyor feed |
|
Blade Feeding Mechanism |
Servo-driven ball screw feed |
|
Power Supply |
220V, 50–60Hz |
|
Air Pressure |
N/A |
|
Total Power Consumption |
1050W |
|
Net Weight |
90kg |
|
Foot pedal start |
N/A |
Feature
● Optional: MES system, IoT system, fixed-point coding function, intermediate peeling function, external auxiliary equipment alarm;

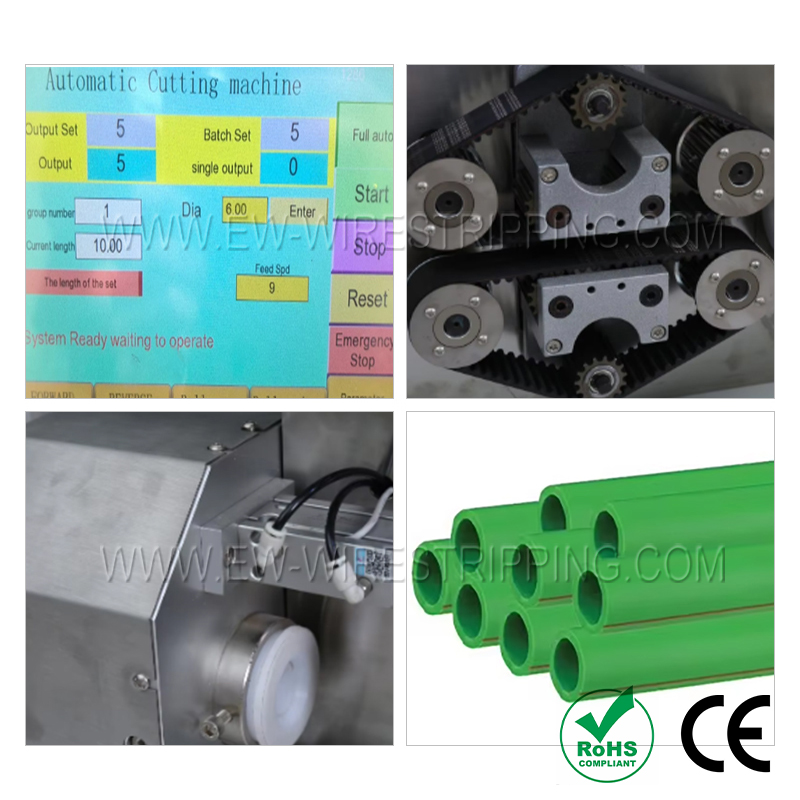

● User friendly system, which can be operated intuitively through a 7 "color touch screen;
● Modular interface, convenient for linking accessories and peripheral devices;
● Modular design, upgradable in the future;
● Various optional accessories, customizable system. Special pipe processing, can be customized non-standard.
Application Range
