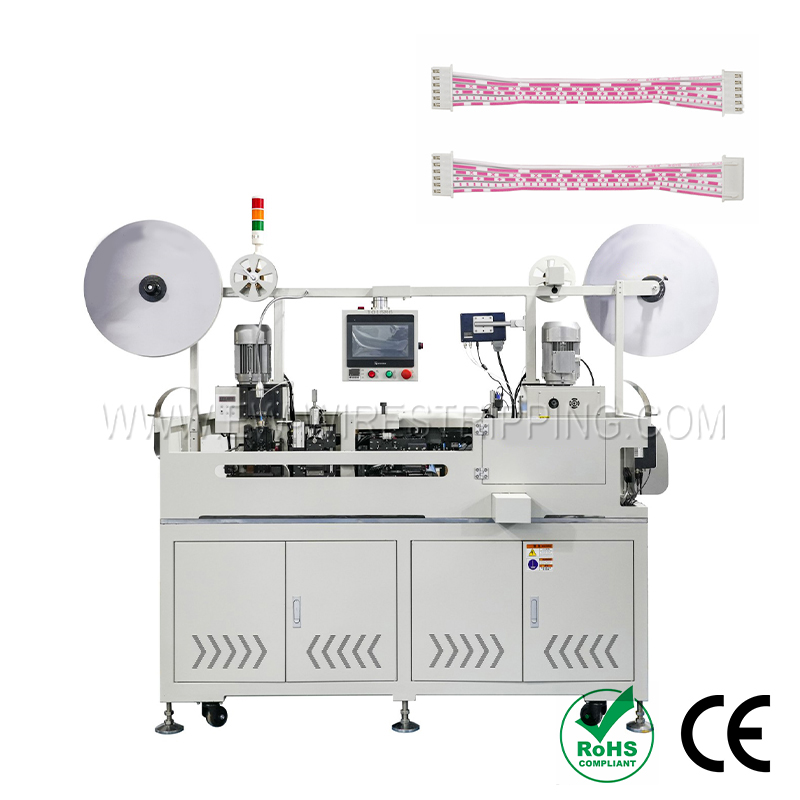

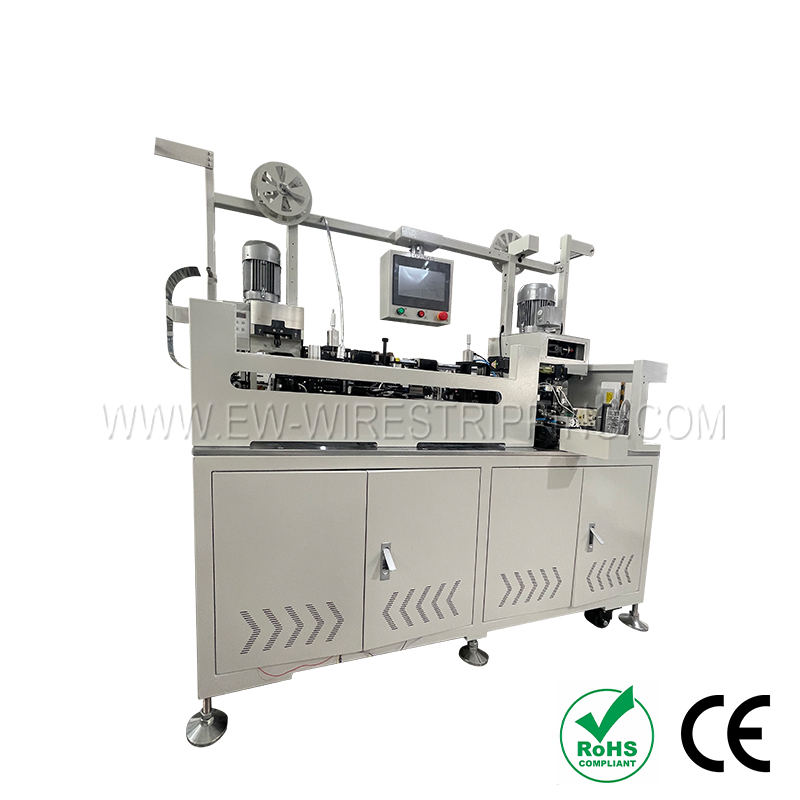

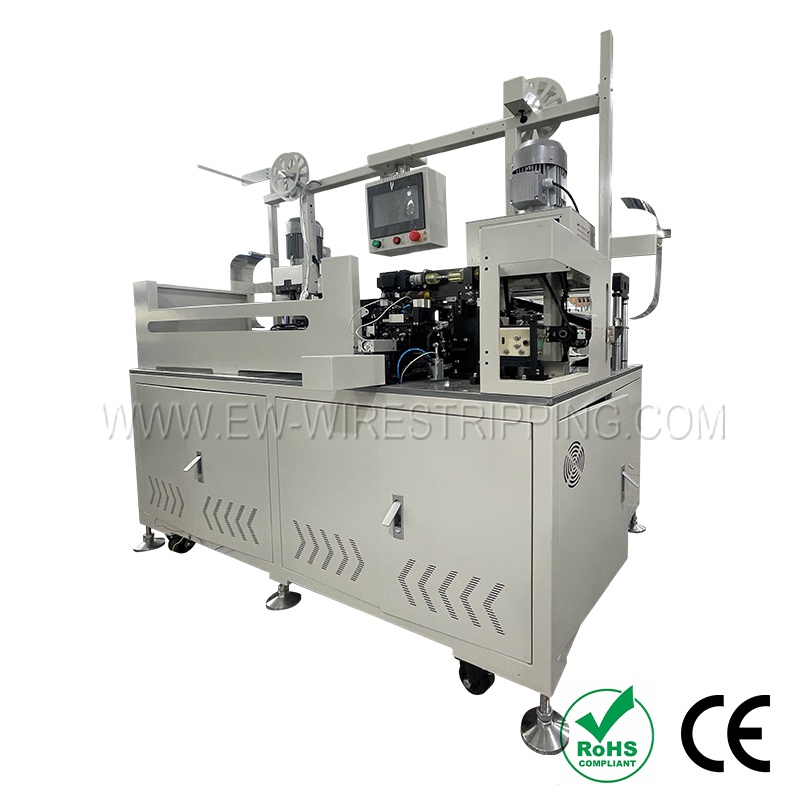

Double side crimping and housing insertion machine
Cut Strip Terminate& Solder
66
Model：Double side crimping and housing insertion machine
Stripping/ Twisting:
length Front end stripping 0-5mm,
rear end stripping 0-10mm,
twisted wire 2-8mm
Cutting length: 45-1000mm
Capacity: 300-375pcs/hour
P number for shell insertion
processing: 2-12P (ribbon cable),
2P-20P (electronic cable)
length Front end stripping 0-5mm,
rear end stripping 0-10mm,
twisted wire 2-8mm
Cutting length: 45-1000mm
Capacity: 300-375pcs/hour
P number for shell insertion
processing: 2-12P (ribbon cable),
2P-20P (electronic cable)
Technical Data
|
EW-9280 |
|
|
Applicable wire range |
AWG28-AWG18 |
|
Stripping/ Twisting length |
Front end stripping 0-5mm, rear end stripping 0-10mm, twisted wire 2-8mm |
|
Cutting length |
45-1000mm(Length can be customized) |
|
Capacity |
300-375pcs/hour(The machine can work continuously for 24 hours) |
|
P number for shell insertion processing |
2-12P (ribbon cable), 2P-20P (electronic cable) |
|
Detection (optional) |
Visual inspection, pressure detection |
|
Power |
220V/110V/50/60HZ |
|
Motor |
13 servo motors |
|
Machine Dimension |
2183*2350*1800mm |
|
Machine Weight |
1100Kgs |
|
Air pressure |
0.5-0.7MPA |
Feature

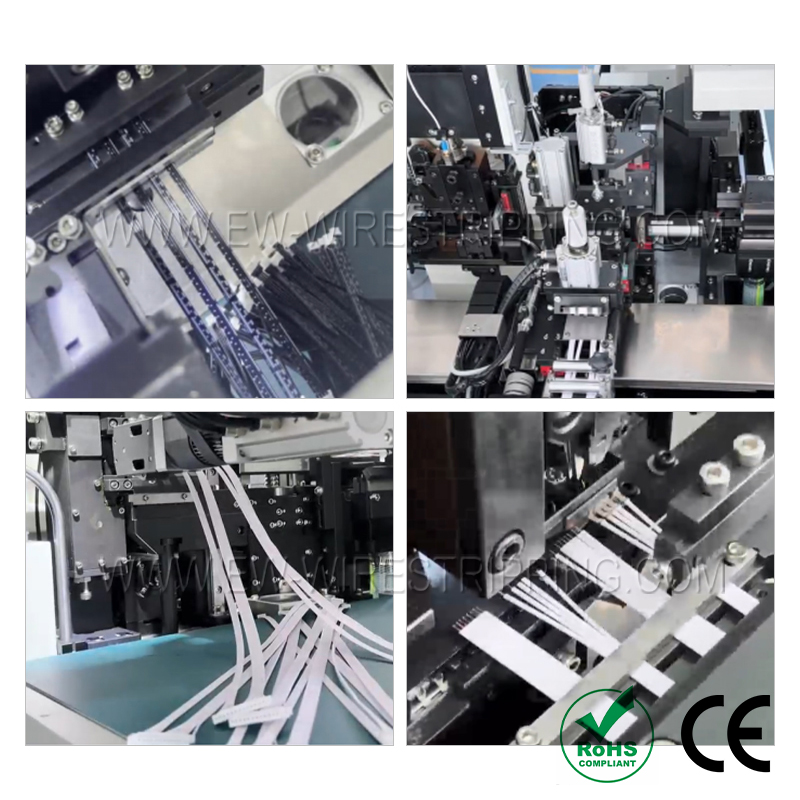

● Comprehensive functions: It integrates multiple processes such as wire cutting, stripping, double-end crimping, plastic shell insertion, tinning, etc., and can complete the processing of electronic wiring harnesses in one stop.
● High degree of automation: The use of advanced control systems, combined with high-precision sensors and actuators, can achieve full-process automation operations such as automatic feeding, positioning, processing and testing.
● High-precision motion control: Equipped with 13 servo motors and multiple precision transmission components, it can achieve precise control of each motion axis with high positioning accuracy.
● Stable and reliable operation: With high-quality components and mature control systems, the equipment has high stability and reliability and can run continuously for 24 hours, ensuring the continuity and stability of production.

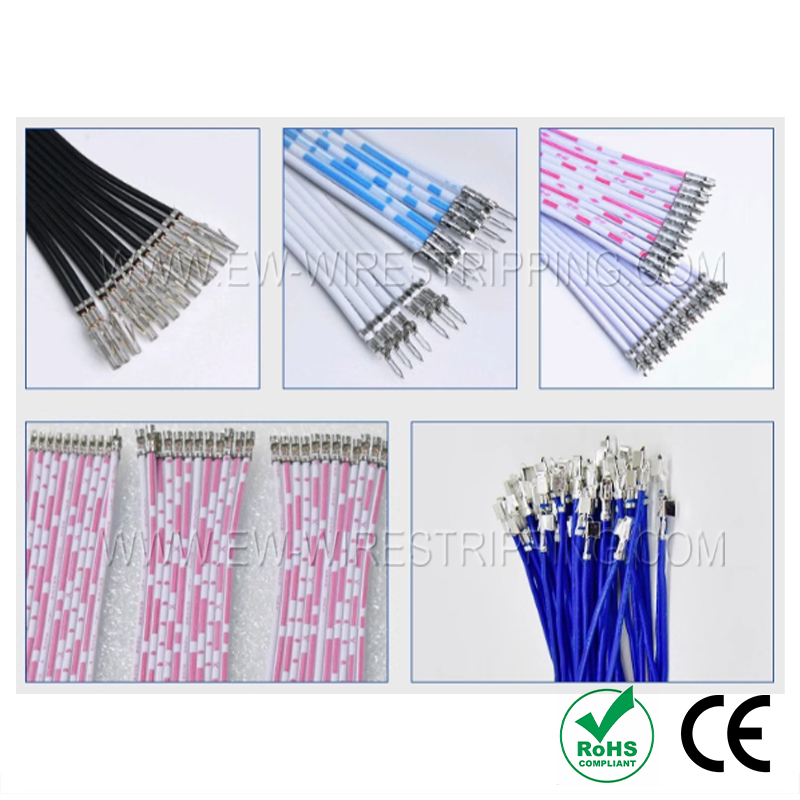

Application Range
