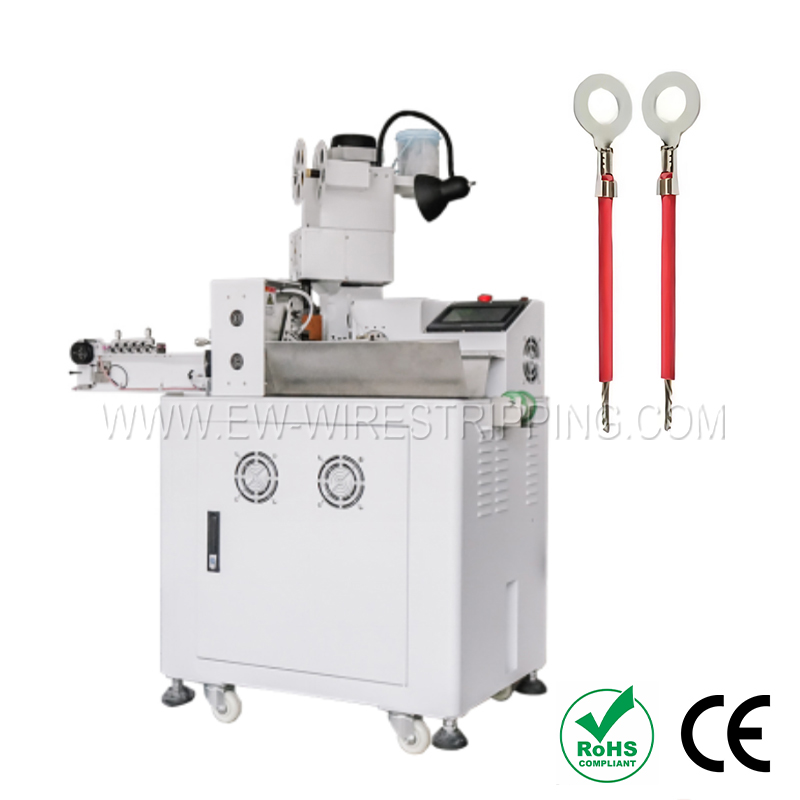

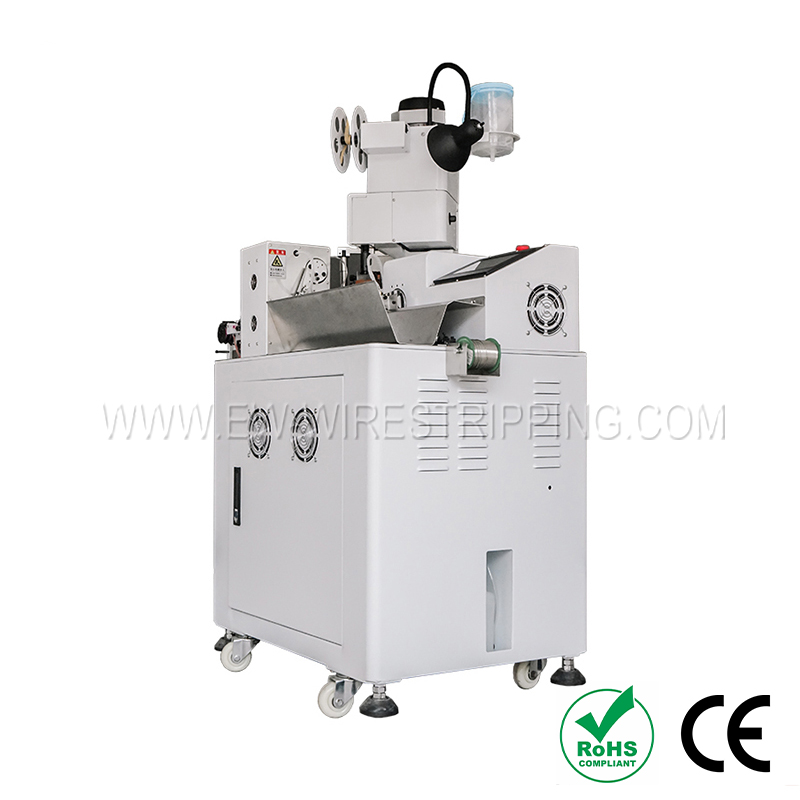

One end crimp terminal and one end tinning machine
Cut Strip Terminate& Solder
56
Model：One end crimp terminal and one end tinning machine
Stripping: length 1-10mm
Cutting length: 35-9900mm
Capacity: 1500-1800pcs/hour(L<300mm)
Crimping force: 2.0T
Air pressure: 0.4-0.6Mpa
Cutting length: 35-9900mm
Capacity: 1500-1800pcs/hour(L<300mm)
Crimping force: 2.0T
Air pressure: 0.4-0.6Mpa
Technical Data
|
Model |
EW-9255 |
|
Applicable wire range |
OD<4mm |
|
Stripping length |
1-10mm |
|
Cut precision |
±(1+0.004*L) mm, L=cut length |
|
Cutting length |
35-9900mm |
|
Capacity |
1500-1800pcs/hour(L<300mm) |
|
Crimping force |
2.0T |
|
Applicators |
30mm or 40mm strokes for optional |
|
Air pressure |
0.4-0.6Mpa |
|
Detection |
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
|
Dimension |
720*850*1650mm |
|
Power supply |
220V/110V/50HZ/60HZ |

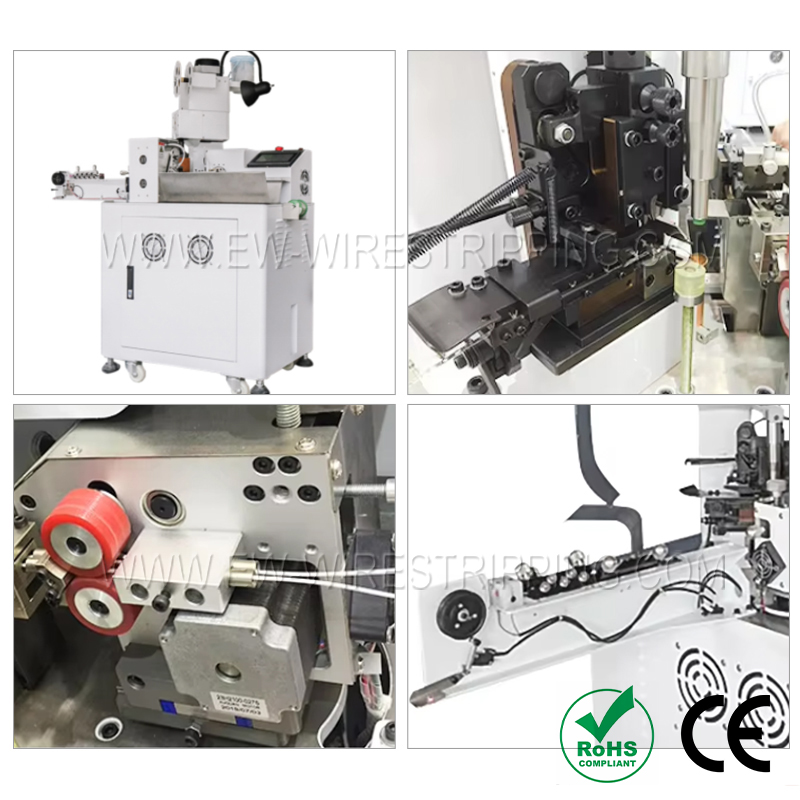

Feature
● One side stripping crimping , another side twiting tinning function.
● It can be equipped with horizontal die, straight die and single-grain die of the terminal machine, which can be quickly replaced and the replacement is very simple.
● The part is equipped with a wire shortage device. When the wire is processed, the machine will automatically send an alarm.

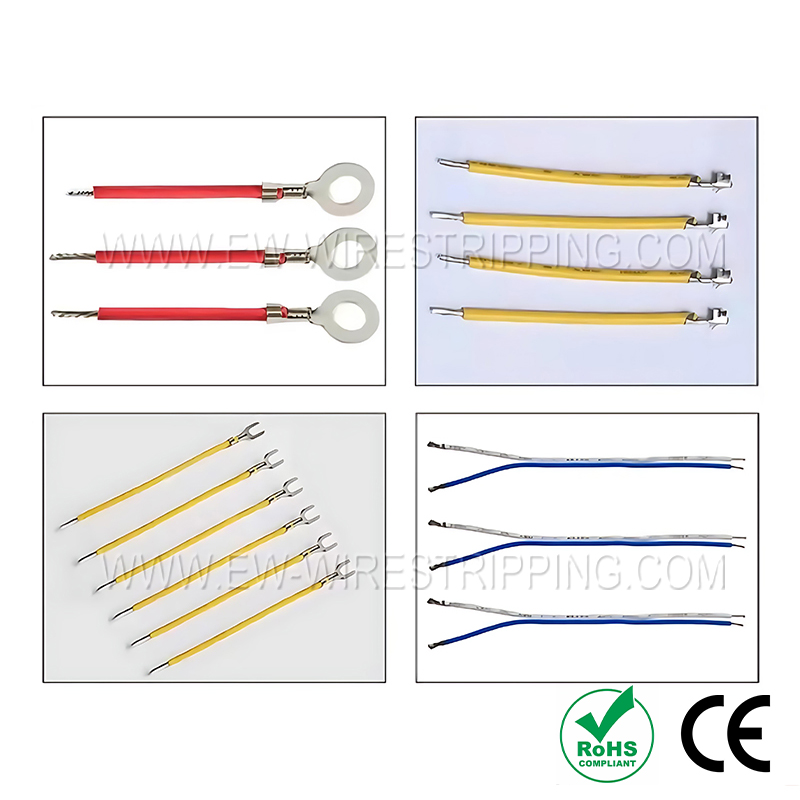

Application Range
